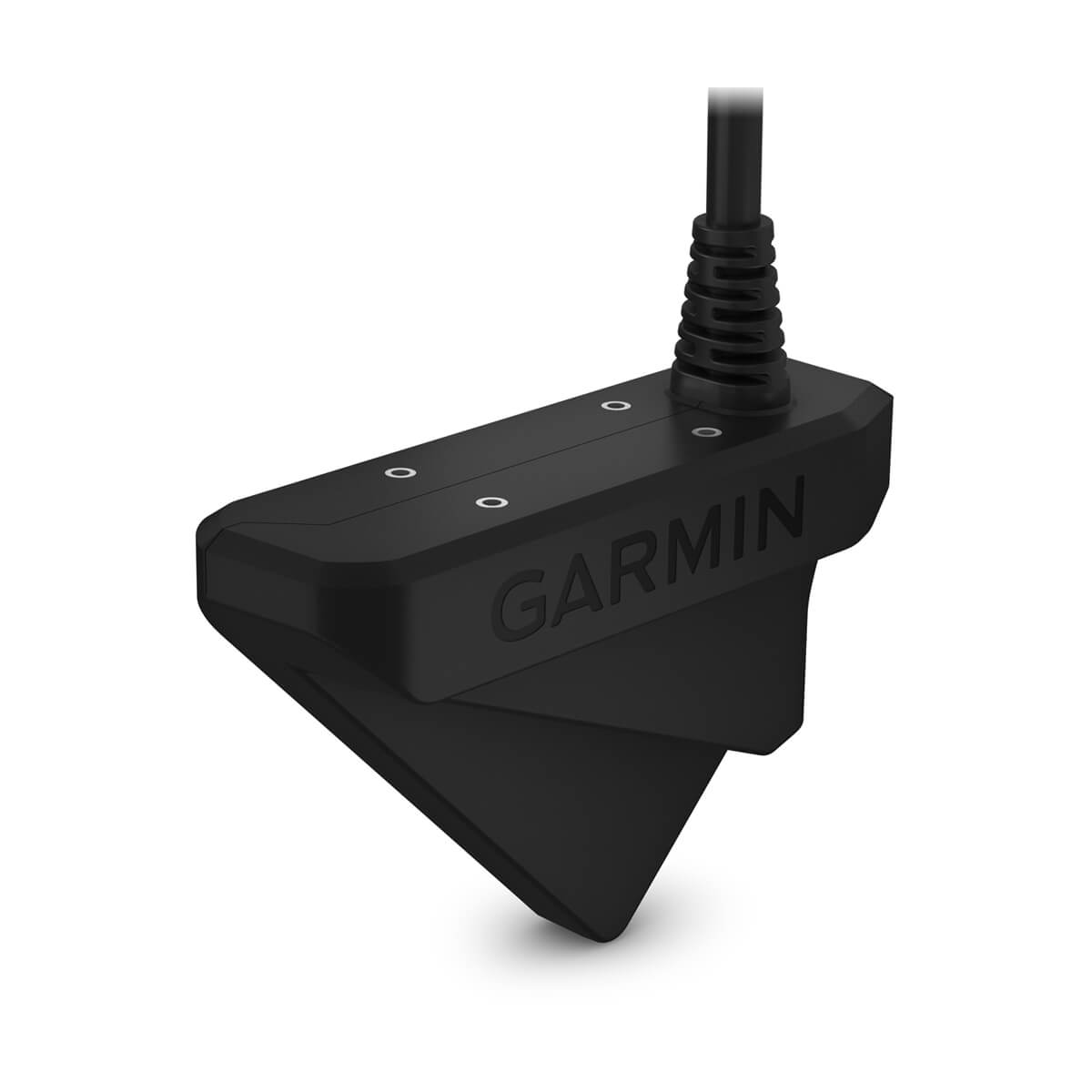

cf xl aa5c7c49 4ee1 4362 a1d1 6fcd7829cf77

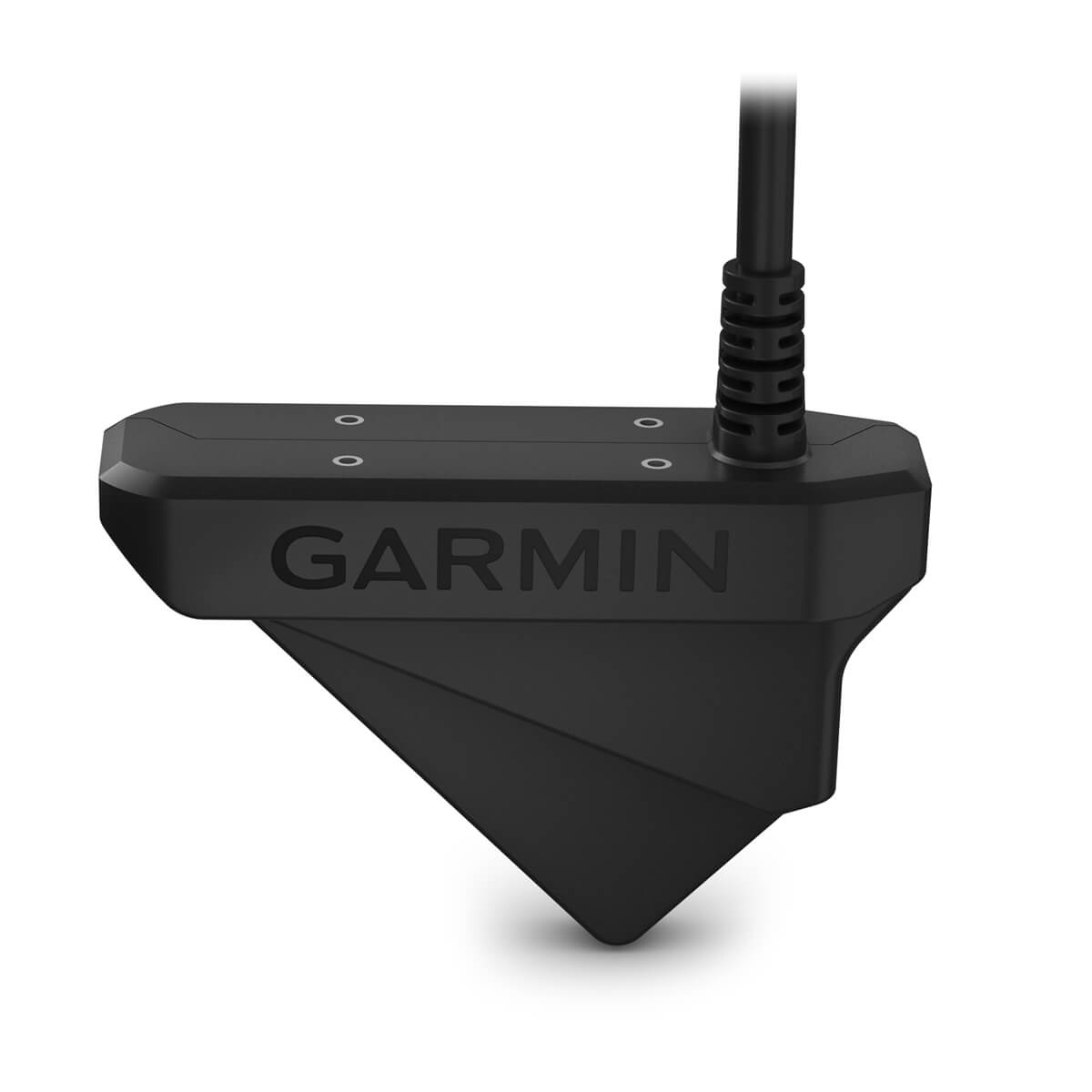

rf xl ad9432ac 27cc 4c08 949f 7e4059657e91

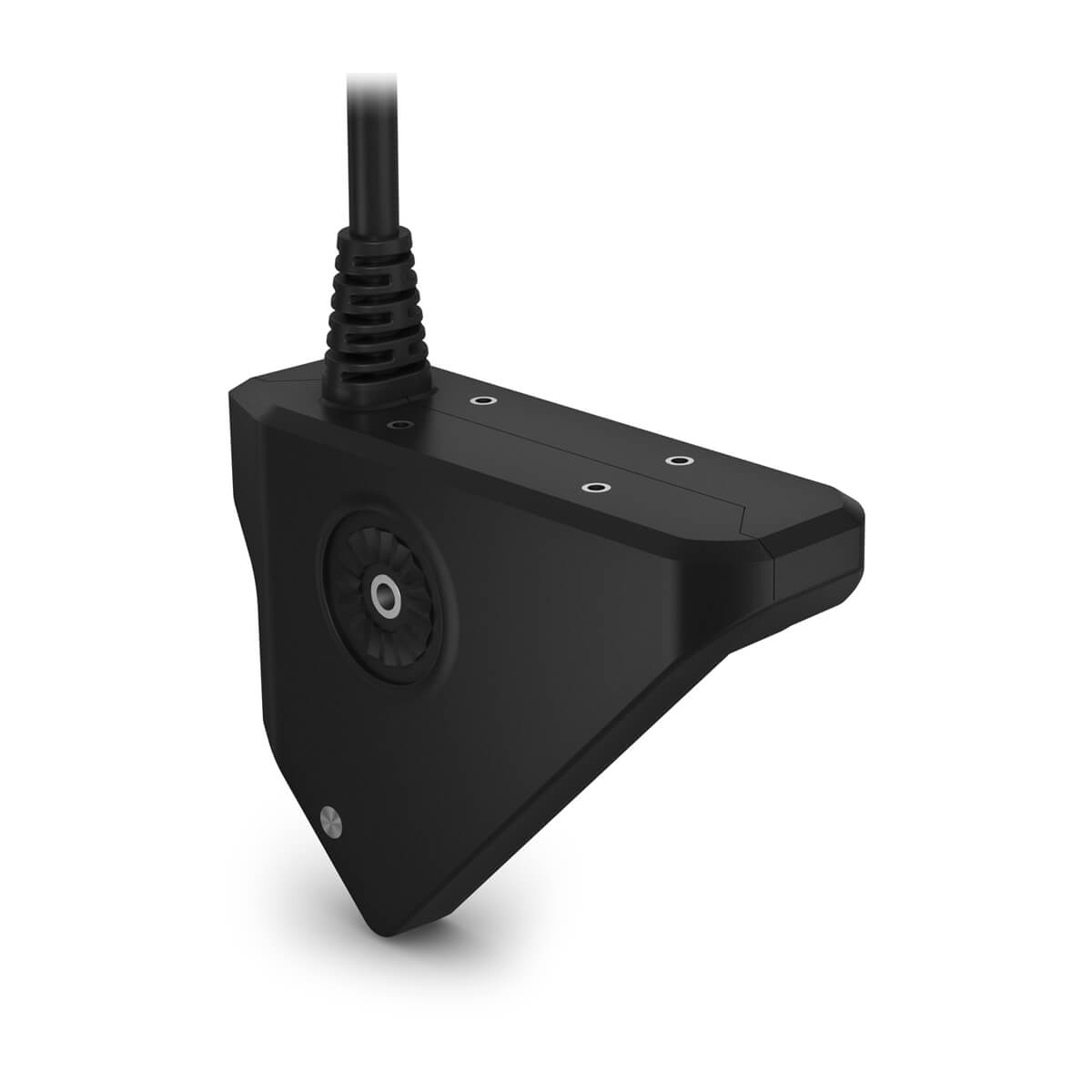

lf xl a0d558f5 76e5 48b9 af40 0238c9918b88

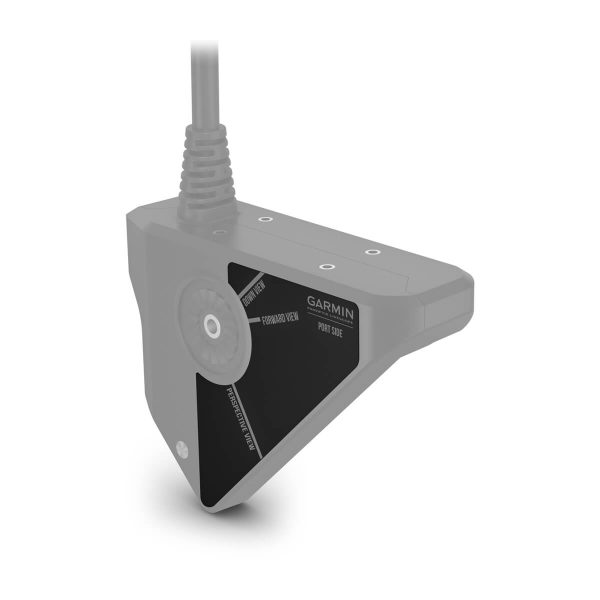

pd 01 xl 80f3c99e b3ea 4af0 b4b7 811c9b16ad15

Panoptix™ PS22-IF

Price range: $330.00 through $348.00

- +
SKU: 010-12784-10 Categories: ,

Panoptix PS22-IF is an ultraportable ice fishing transducer with live sonar and a pole mount-free design.

Guaranteed Safe Checkout

General

Transducer beamwidth 20° x 135°  Transducer cable length 20 ft Transducer number of pins 21 Dimension 5.4” x 3.8” x 1.8” (13.7 x 9.7 x 4.6 cm) Weight

1.9 lbs (0.9 kg)

Temperature range Operating: 0° C to 40° C

Electrical Features
Power input 10-32 V
Power usage 21 W typical, 58 W max
Fuse 7.5 A

Sonar Features
Frequency 530 – 1,100 kHz
Transmit power 500 W
Maximum depth Down and Forward: 200’ (61.0 m)
Sonar Type Live
Target Separation @100′ 22″

Connections
Garmin Marine Network Ports

1 (small connector)

Sonar Modes
LiveVü Down
LiveVü Forward
Perspective mode
Traditional sonar source
Sonar Type

Panoptix, LiveScope, LiveScope Plus, HW Chirp, HN Chirp, Dual Beam
