General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension |

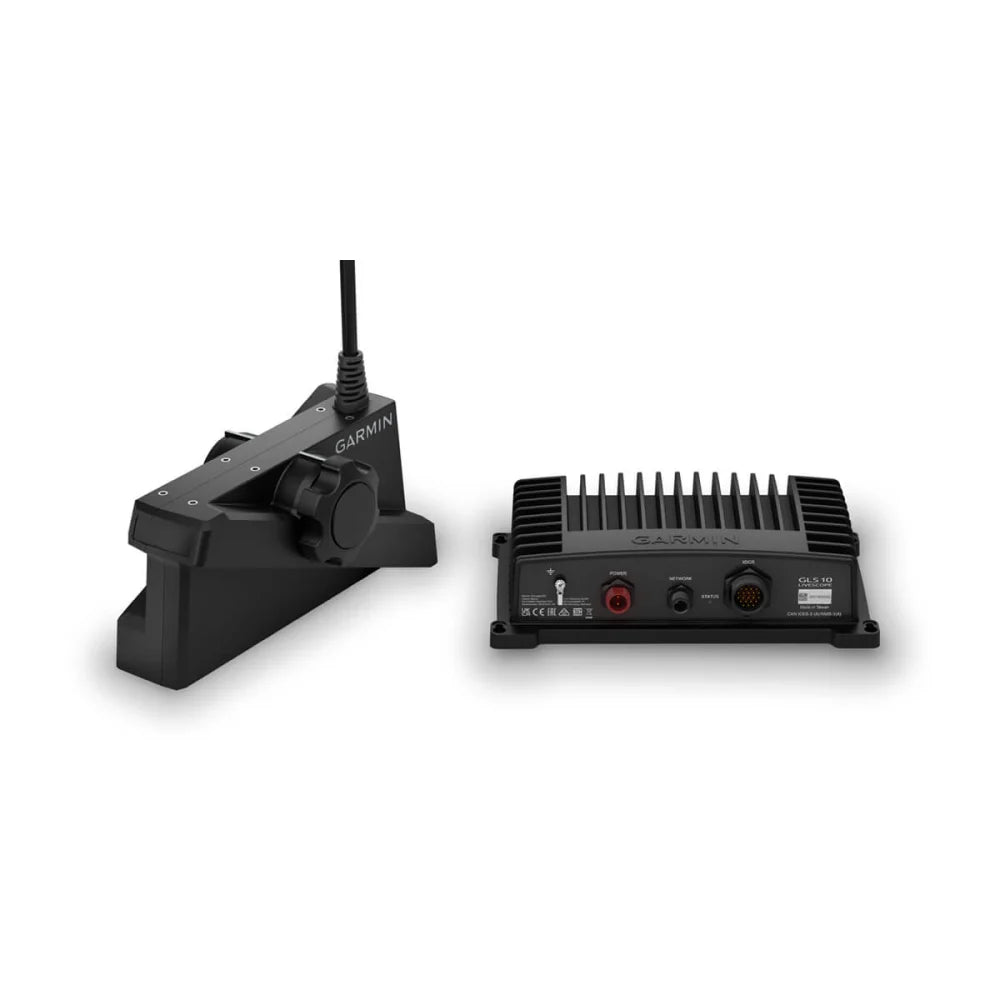

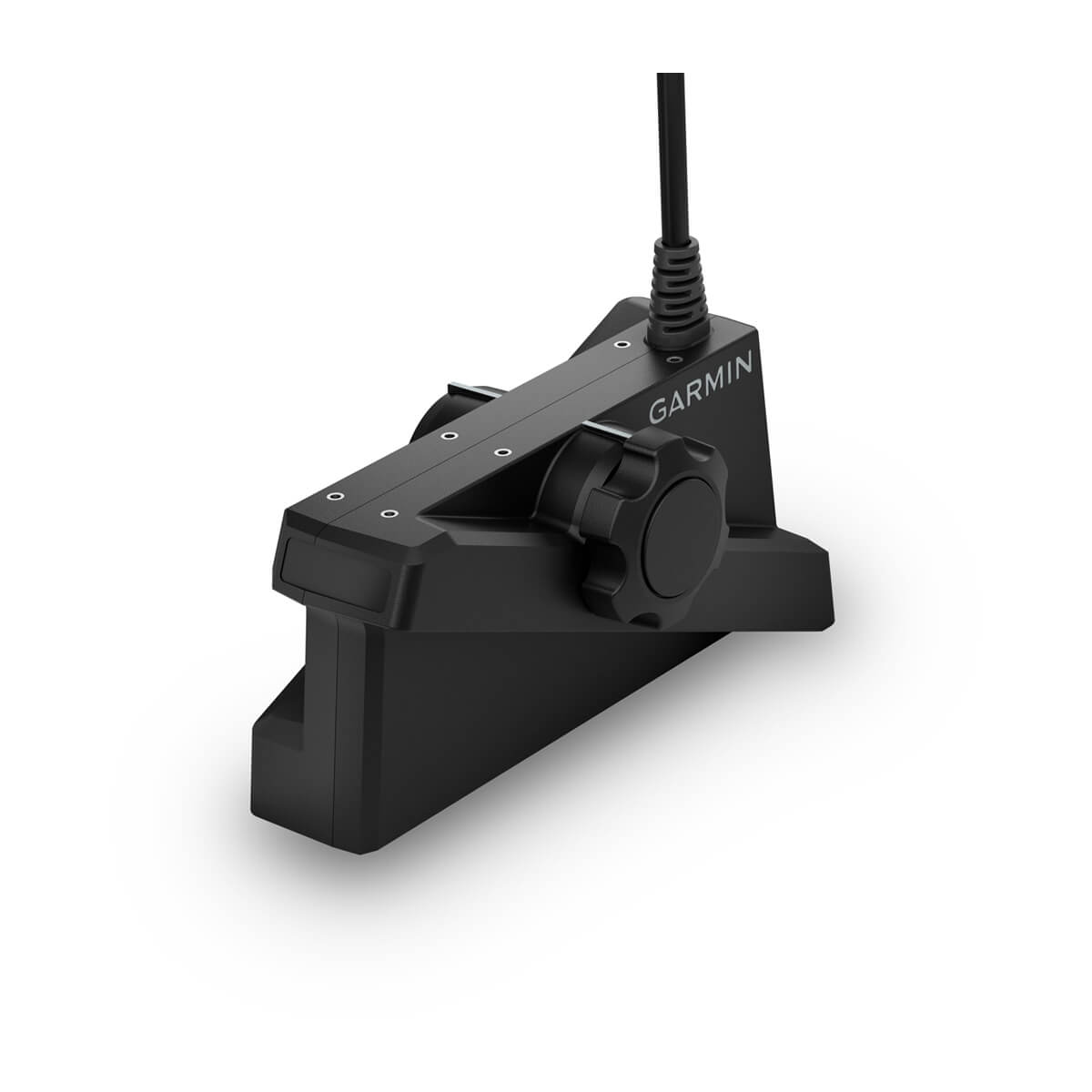

LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm) |
| Weight |
LVS62 transducer with cable: 3.92 lbs (1.78 kg) |
| Temperature range | LVS62 Transducer: Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 7″ (0.18 m) |
Sonar Features |
|
| Frequency | 265 – 550 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Freshwater: Down and Forward: 500’ (152.0 m)Saltwater: Down and Forward: 350’ (106.0 m) |
| Sonar Type | Live |
| Target Separation @100′ | 22″ |

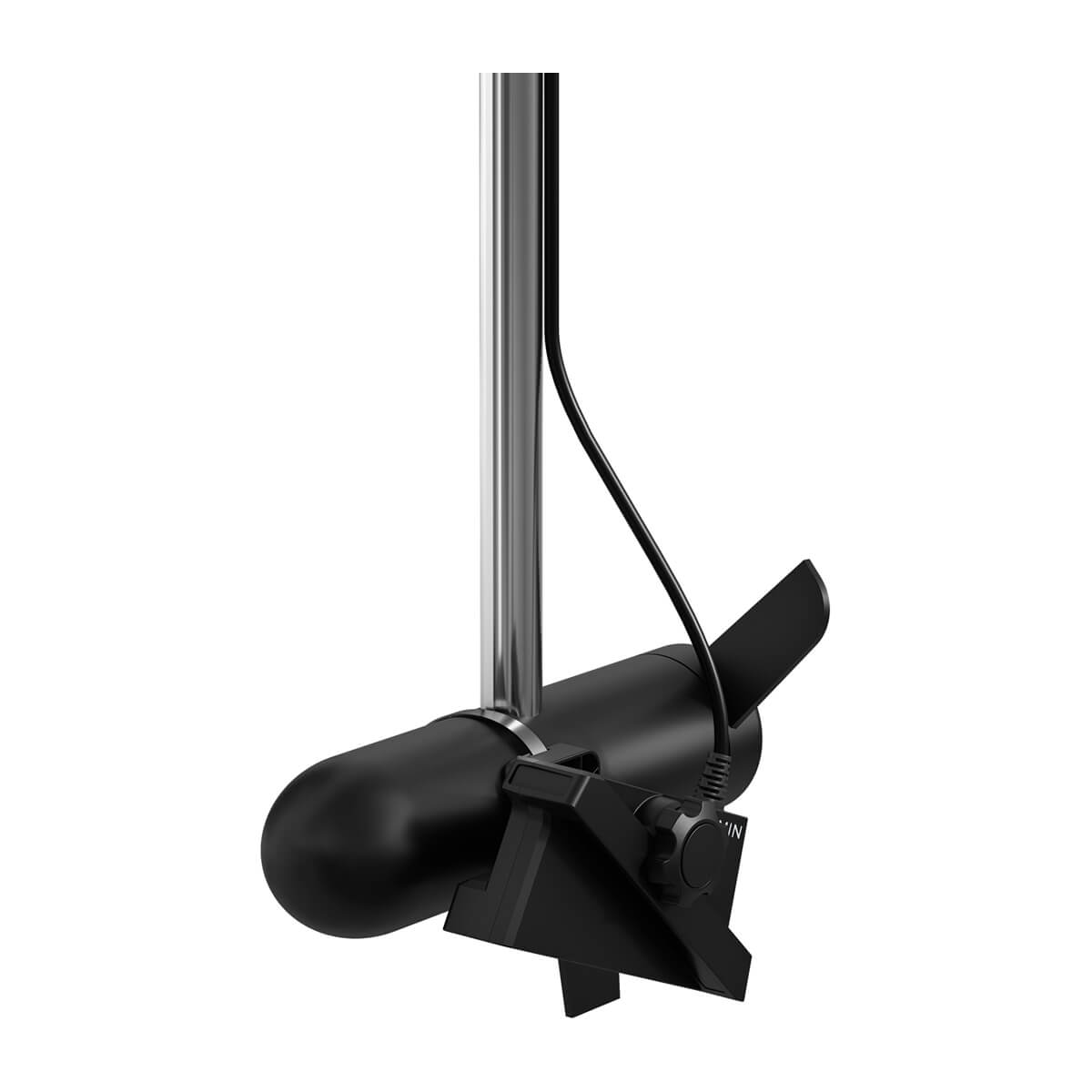

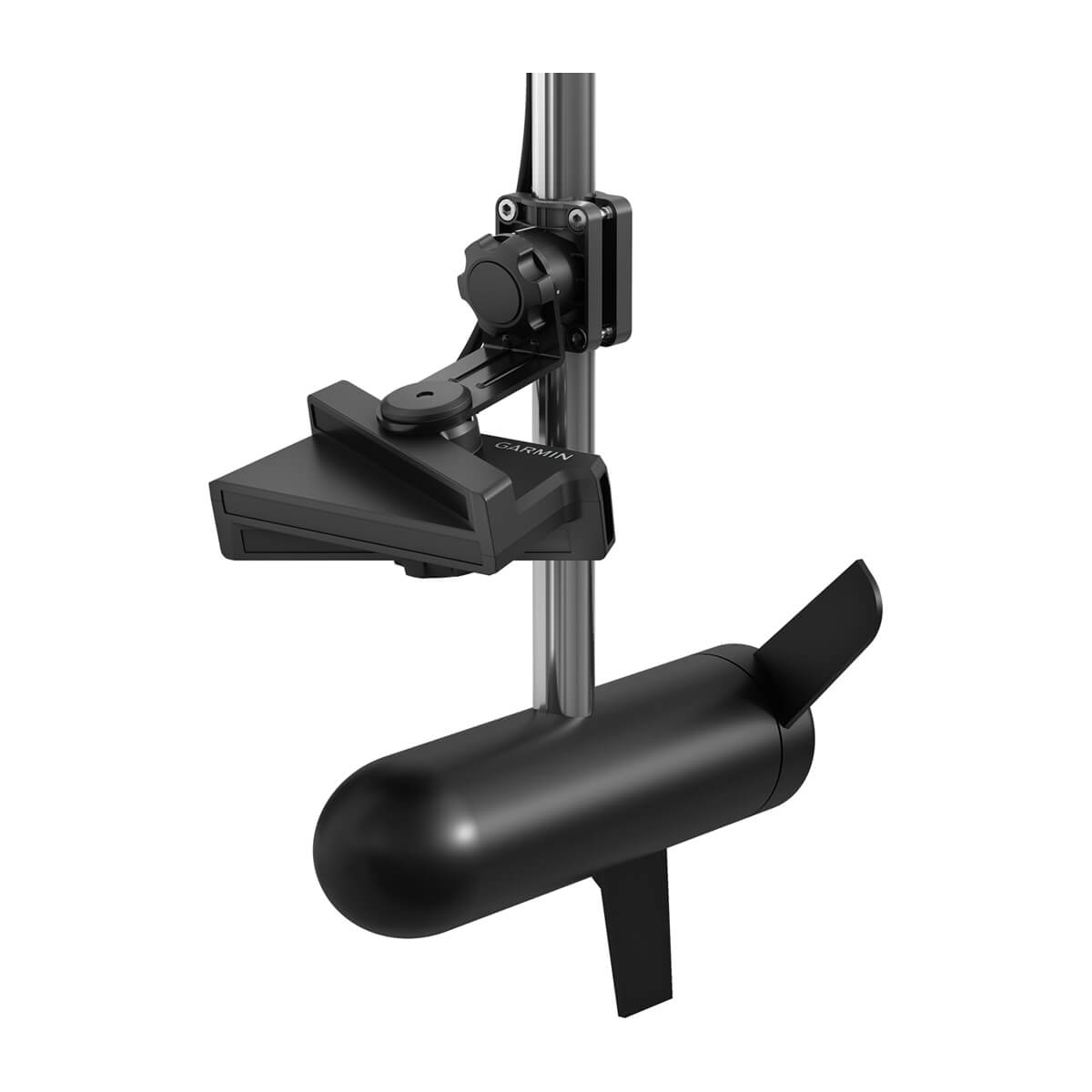

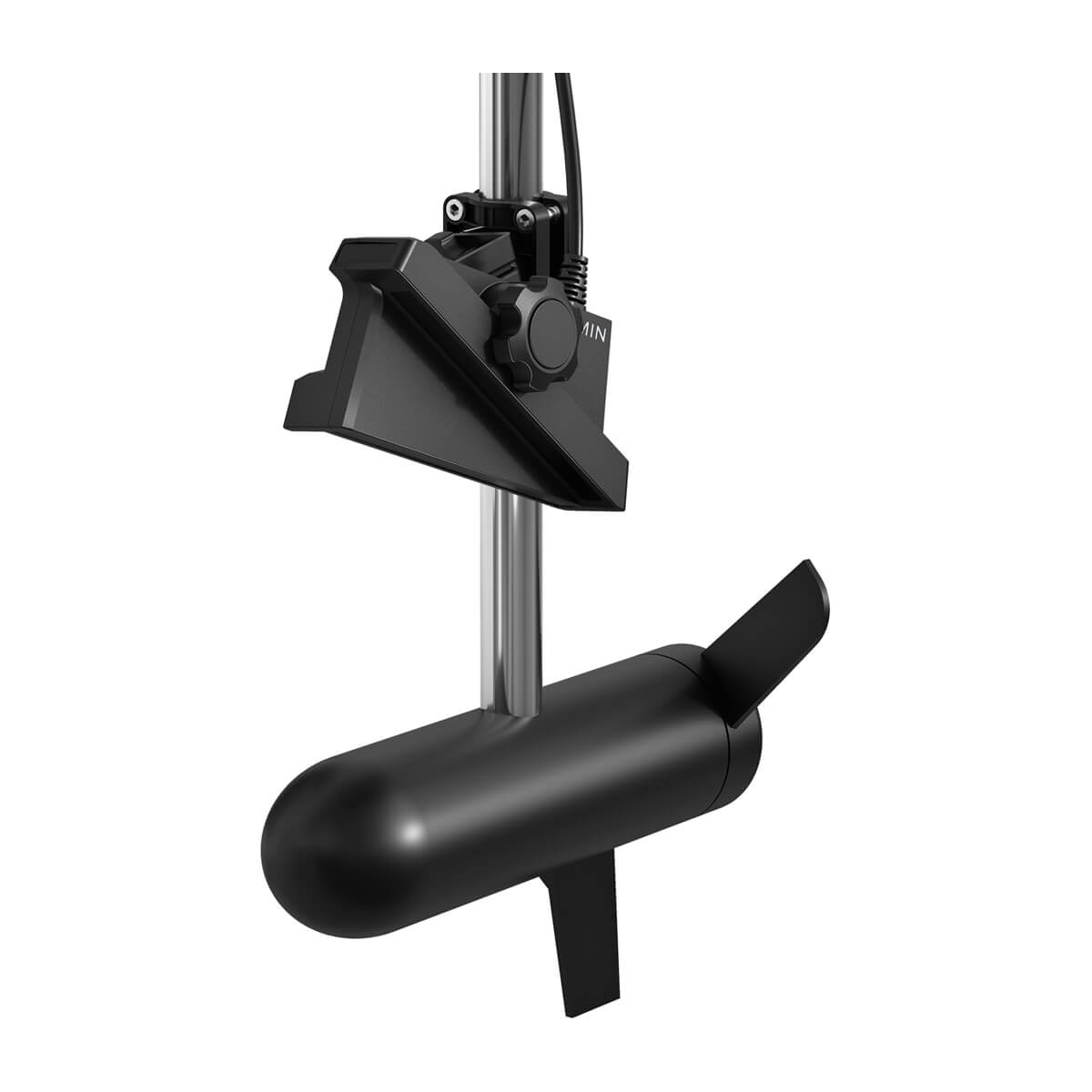

| Perspective Mode Mount Included | |
Connections |
|
| Garmin Marine Network Ports |
1 (small connector) |
|---|---|
