General |
|
| Transducer beamwidth | 20° x 135° |
|---|---|
| Transducer cable length | 20 ft |
| Transducer number of pins | 21 |
| Dimension | 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm) |
| Weight |
2.25 lbs (1.02 kg) |
| Temperature range | Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4″ (0.1 m) |
Sonar Features |
|
| Frequency | 530 – 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100′ | 14″ |

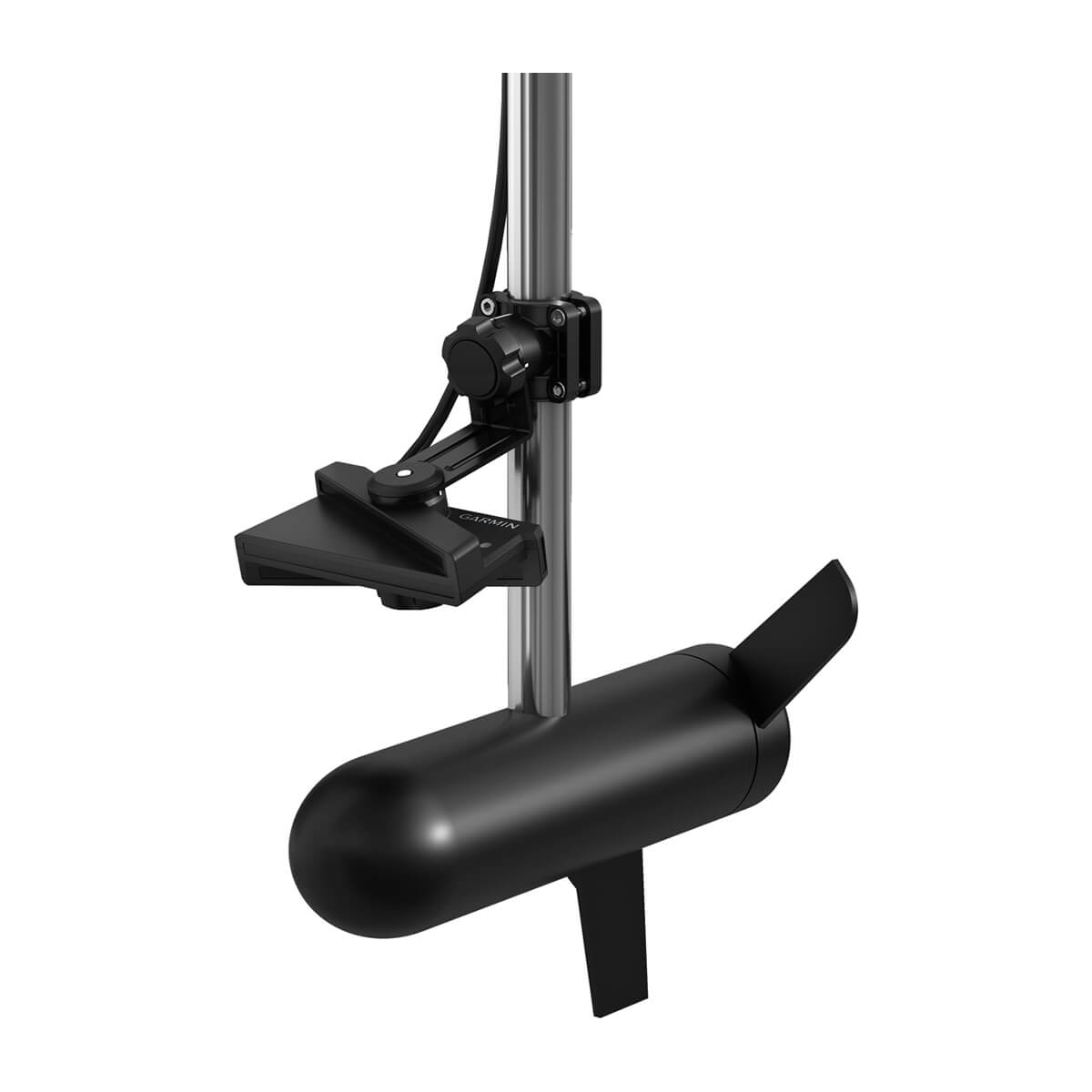

| Perspective Mode Mount Included | |
Connections |
|
| Garmin Marine Network Ports |
1 (small connector) |
|---|---|
