General

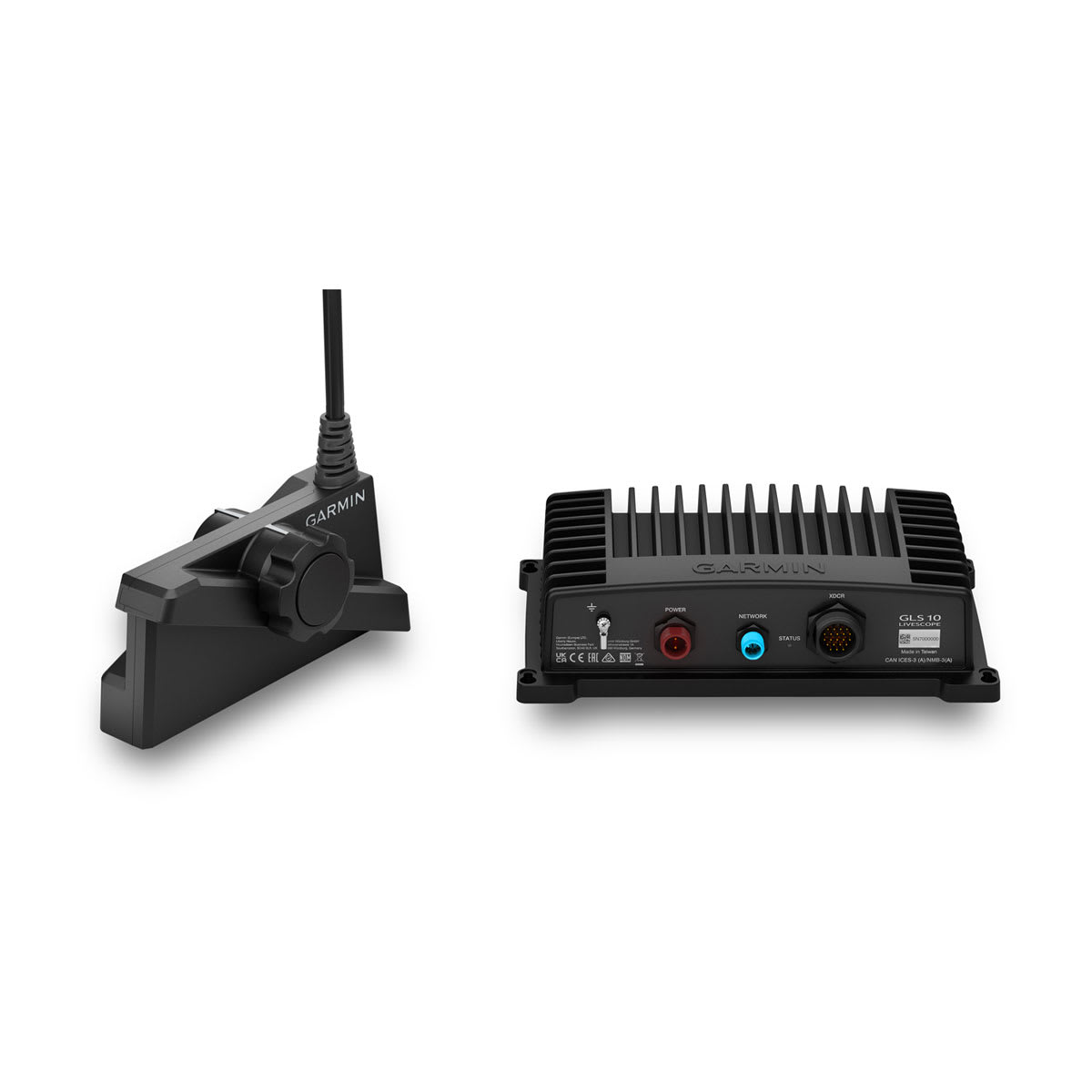

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);
LiveScope Plus LVS34-IF transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)
GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LiveScope Plus LVS34-IF transducer: 2.25 lbs (1.02 kg)
GLS 10 black box: Operating: -15° C to 70° C
LiveScope Plus LVS34-IF transducer: Operating: 0° C to 40° C
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 10 A |
| Compass-safe distance | 4″ (0.1 m) |
Sonar Features |
|
| Frequency | 530 – 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Sonar Type | Live |
| Target Separation @100′ | 14″ |
Connections |
|
| Garmin Marine Network Ports |
1 (small connector) |
|---|---|
