General |
|
| Power supply | 12 VDC nominal (10-15 VDC range) |

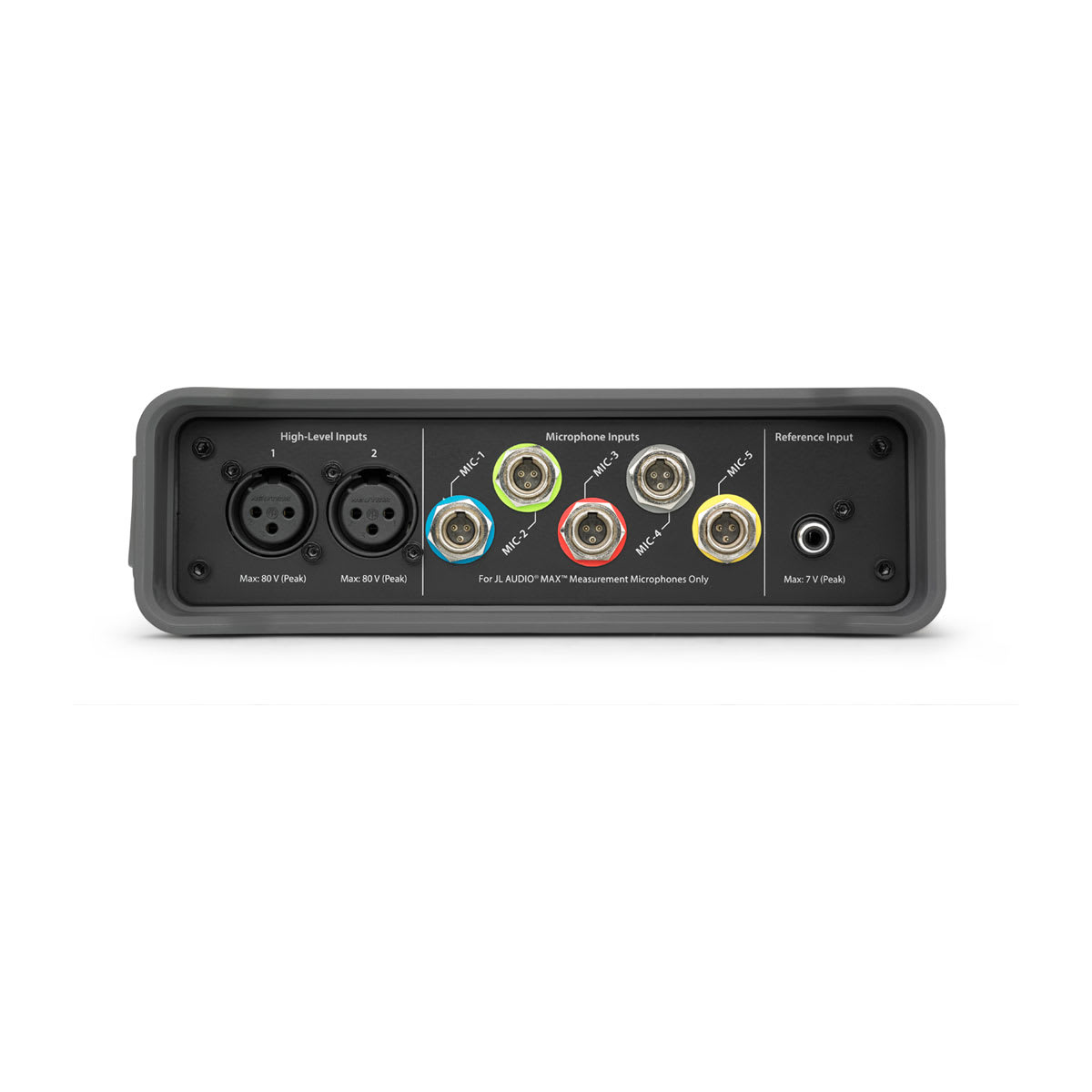

Inputs |
|
| High-level Inputs 1 & 2 | |
| Pin configuration | XLR (Pin 1-GND, Pin 2-Signal +, Pin 3-Signal -) |
| Input impedance | 73 kΩ |
| Flatness ± 0.1 dB | 5 Hz-15 kHz @ 44.1 kSR, 48 kSR, 96 kSR |
| Flatness ± 0.5 dB | 5 Hz-20 kHz @ 44.1 kSR 5 Hz-22 kHz @ 48 kSR 5 Hz-35 kHz @ 96 kSR |
| Crosstalk, 5 Hz-20 kHz | ≤ – 95 dB |
| Crosstalk @ 1 kHz | ≤ – 110 dB |
| THD @ 1 kHz | ≤ 0.0012% |
| THD+N, 5 Hz-20 kHz | ≤ 0.035% |
| ADC headroom | -4.84 dBFS @ 80 VAC peak (56.57 Vrms sine) (differentially driven) |
| Maximum DC offset level | 50 VDC, Pin 2 or 3 to GND, Pin 1 – DC |
| Unbalanced Mic Inputs (1, 2, 3, 4, 5) | |
| Pin configuration | Mini-XLR (Pin 1-GND, Pin 2-Signal +, Pin 3-2 VDC) |
| Input impedance | 2.2 kΩ |
| Flatness ± 0.5 dB | 10 Hz-10 kHz @ 44.1 kSR, 48 kSR, 96 kSR |
| Crosstalk, 5 Hz-20 kHz | ≤ – 115 dB |
| Crosstalk @ 1 kHz | ≤ – 120 dB |
| THD @ 1 kHz | ≤ 0.0009% |
| THD+N, 5 Hz-20 kHz | ≤ 0.01% |
| ADC headroom | -39.5 dBFS @ 94 dB SPL |
| RCA Balanced (Reference Input) | |
| Pin configuration | RCA Female (Center Pin-Signal +, Shell-Signal –) |
| Input impedance | ~ 100 kΩ |
| Flatness ± 0.1 dB | 5 Hz-15 kHz @ 44.1 kSR, 48 kSR, 96 kSR |
| Flatness ± 0.5 dB | 5 Hz-20 kHz @ 44.1 kSR 5 Hz-22 kHz @ 48 kSR 5 Hz-35 kHz @ 96 kSR |
| THD @ 1 kHz | ≤ 0.005% |
| THD+N, 5 Hz-20 kHz | ≤ 0.035% |
| S/PDIF Digital Input (Optical) | |
| Connector | TOSLINK |
| Sample rates | 8 kHz-216 kHz |
| Bit depths | 8-24 bit PCM |
Outputs |
|

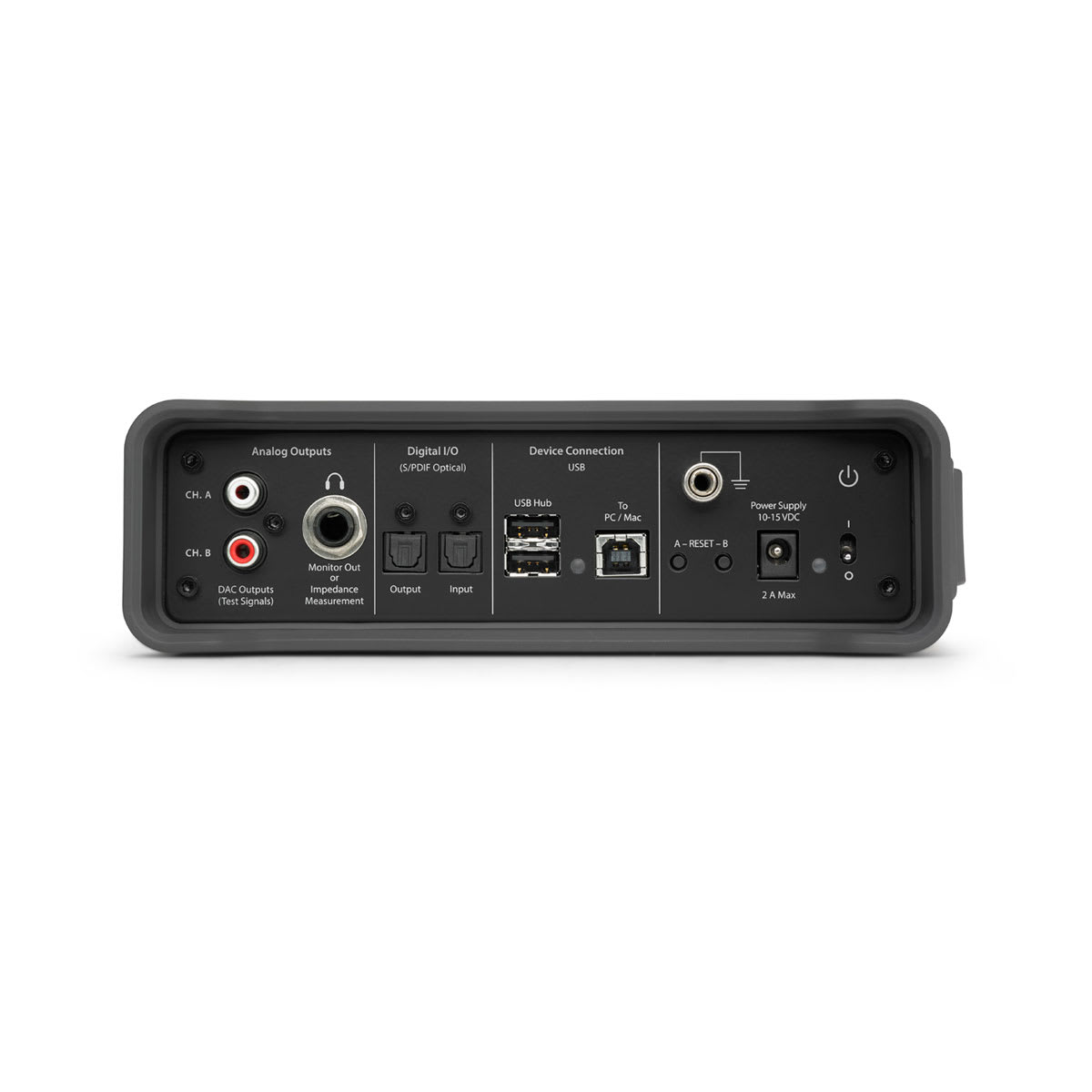

| DAC Output | |
| Connectors | Unbalanced RCA |
| Output impedance | 200 Ω |
| Output Level at 0 dBFS (RMS) | 4 V |
| Flatness ± 0.1 dB | 5 Hz-10 kHz @ 44.1 kSR, 48 kSR, 96 kSR |
| Flatness ± 1 dB | 5 Hz-20 kHz @ 44.1 kSR 5 Hz-22 kHz @ 48 kSR 5 Hz-35 kHz @ 96 kSR |
| Crosstalk, 5 Hz-20 kHz | ≤ – 95 dB |
| Crosstalk @ 1 kHz | ≤ – 110 dB |
| THD @ 1 kHz | ~ 0.0014% |
| THD+N, 5 Hz-20 kHz | ≤ 0.032% |
| S/PDIF Digital Output (Optical) | |
| Connector | TOSLINK |
| Sample rates | 44.1 kHz-96 kHz |
| Bit depths | 24 bit PCM |
| Output level | Defined by Signal Generator level control |
Microphones |
|

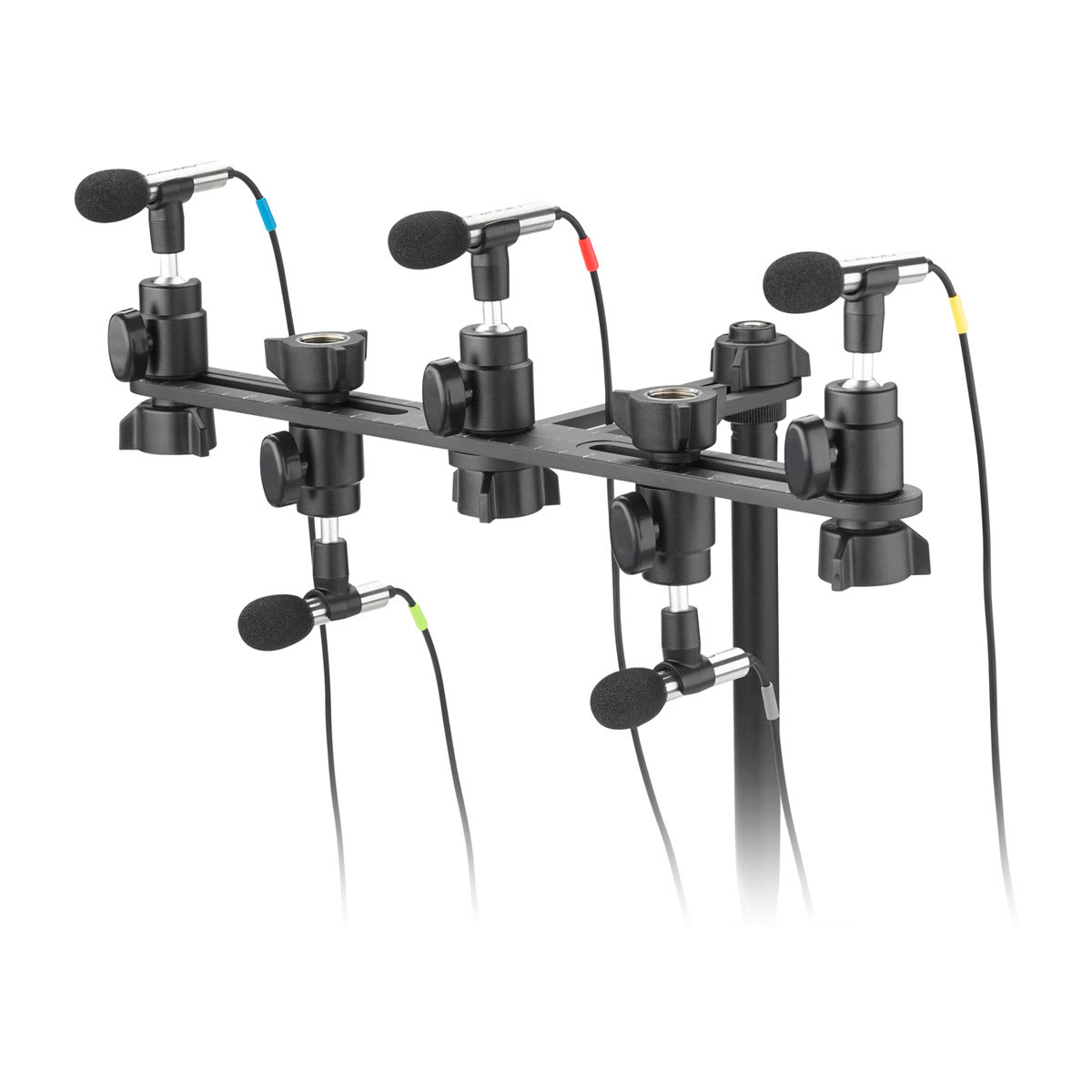

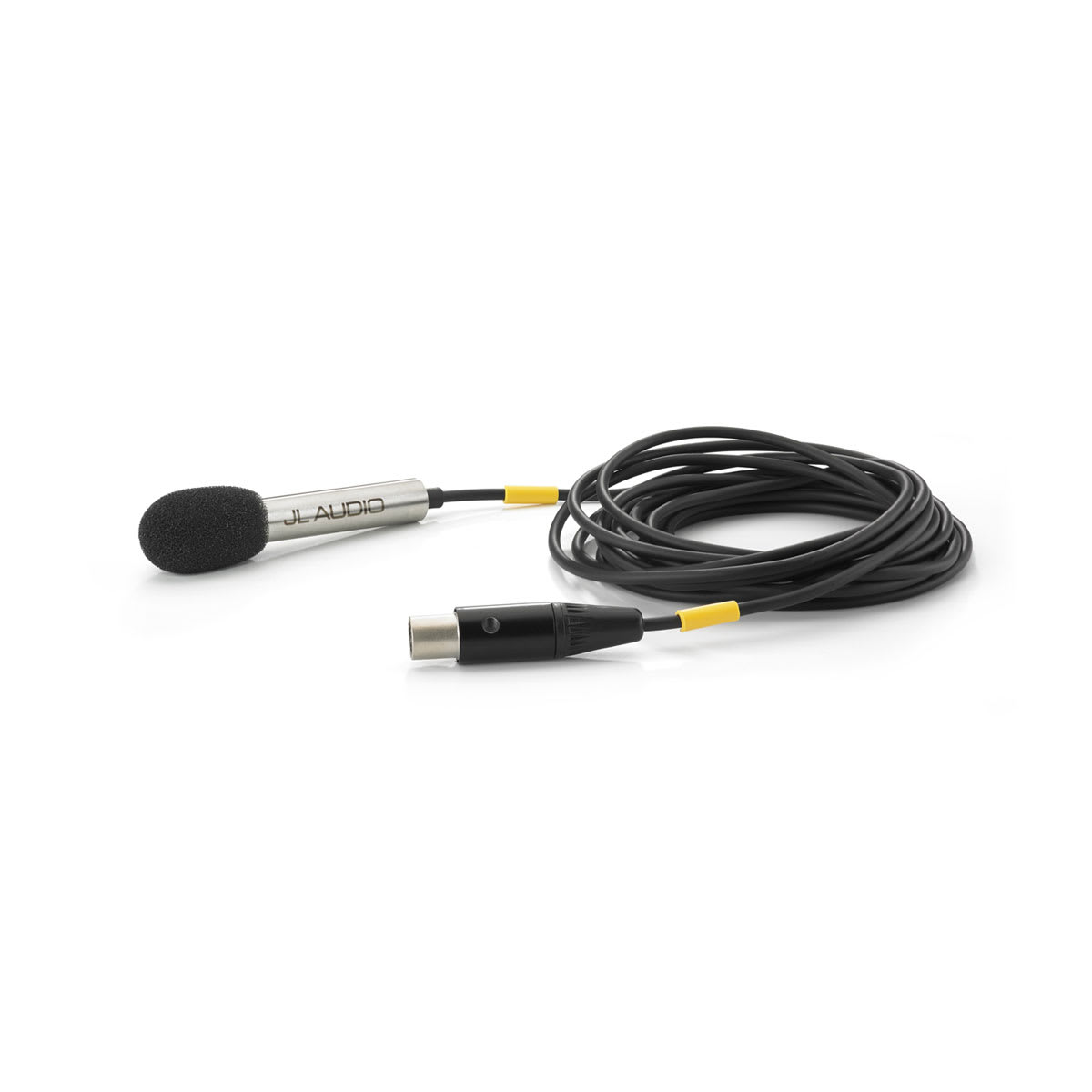

| Size, type | 1/4″>”, pre-polarized electret (omnidirectional) |
| Flatness ± 1 dB | 50 Hz-10 kHz @ 44.1k SR, 48k SR, 96k SR |
| Flatness ± 2 dB | 5 Hz to ≥ 20 kHz @ 44.1k SR, 48k SR, 96k SR |
| Maximum input SPL | 130 dB SPL @ 1 kHz with ≤ 2% THD |

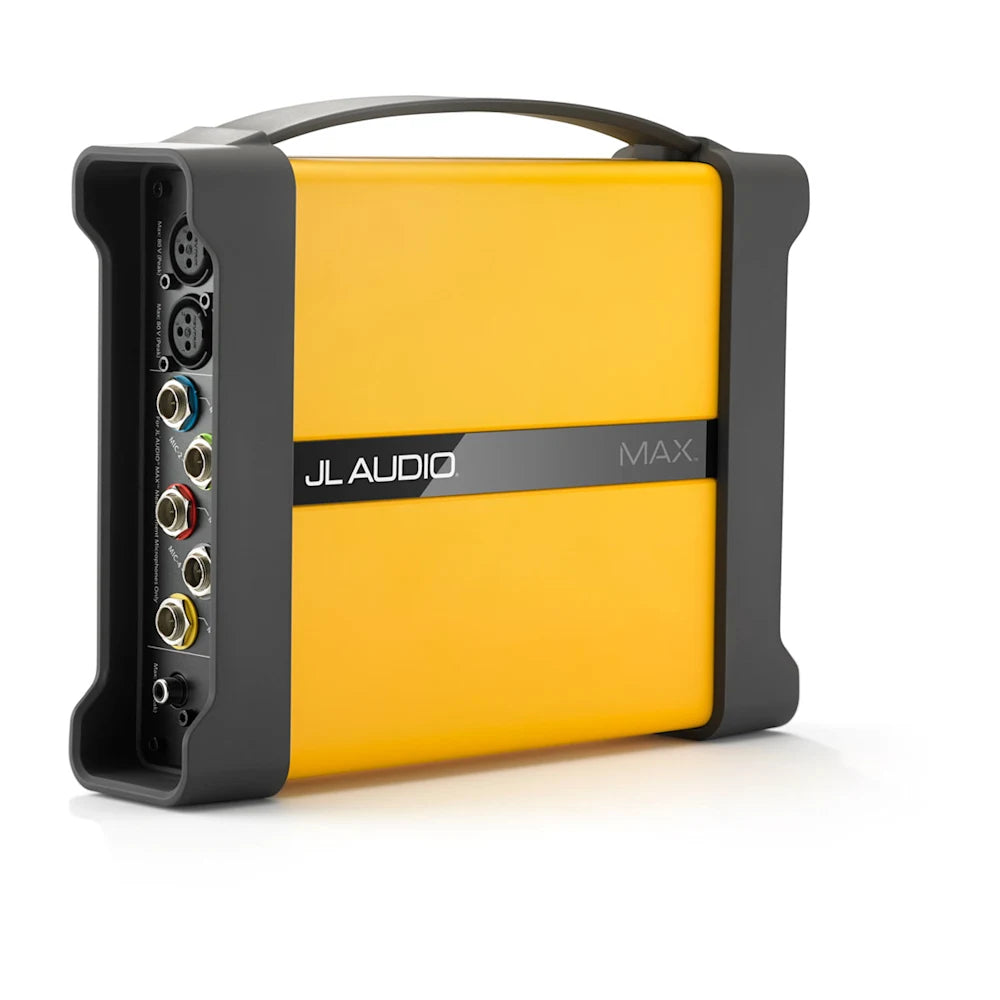

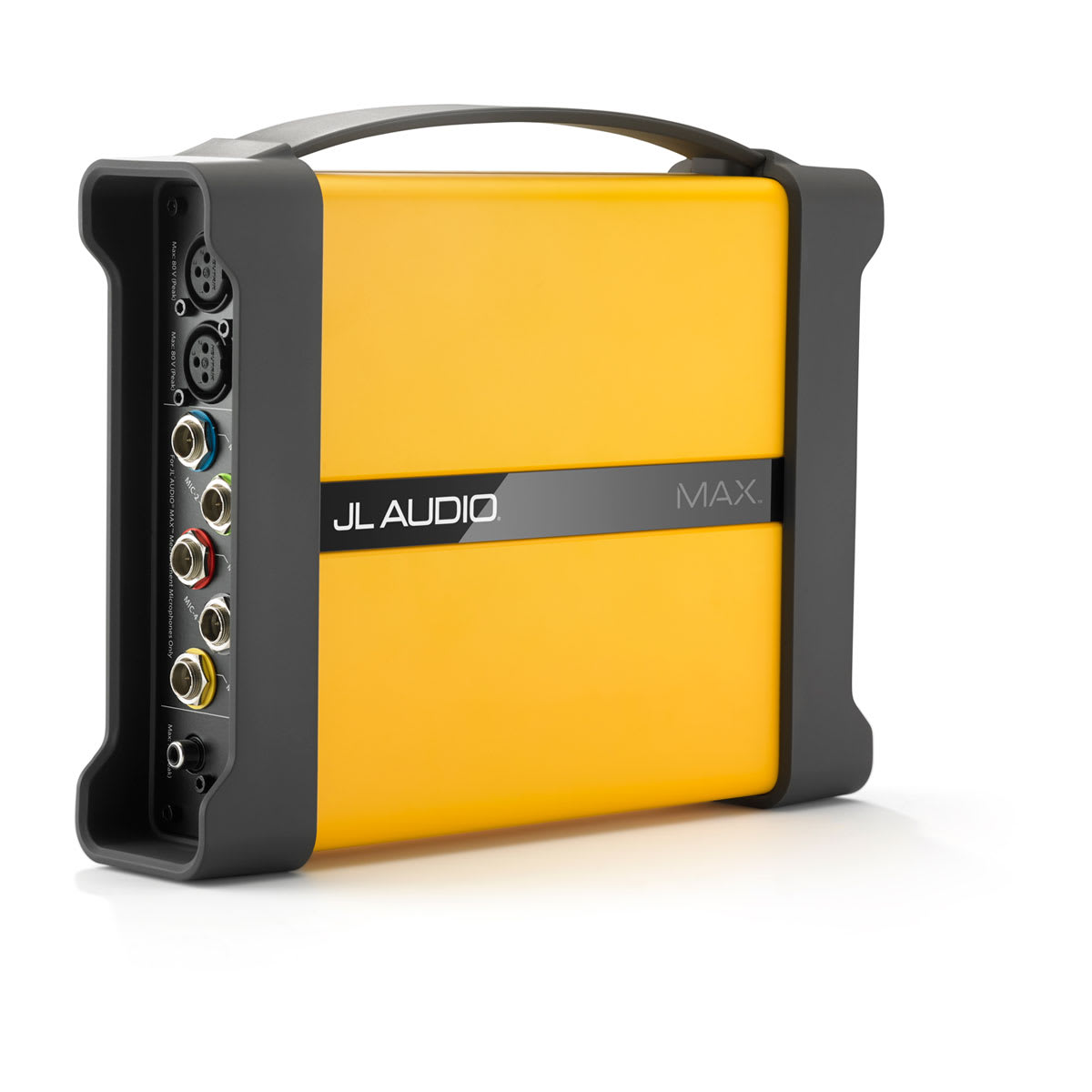

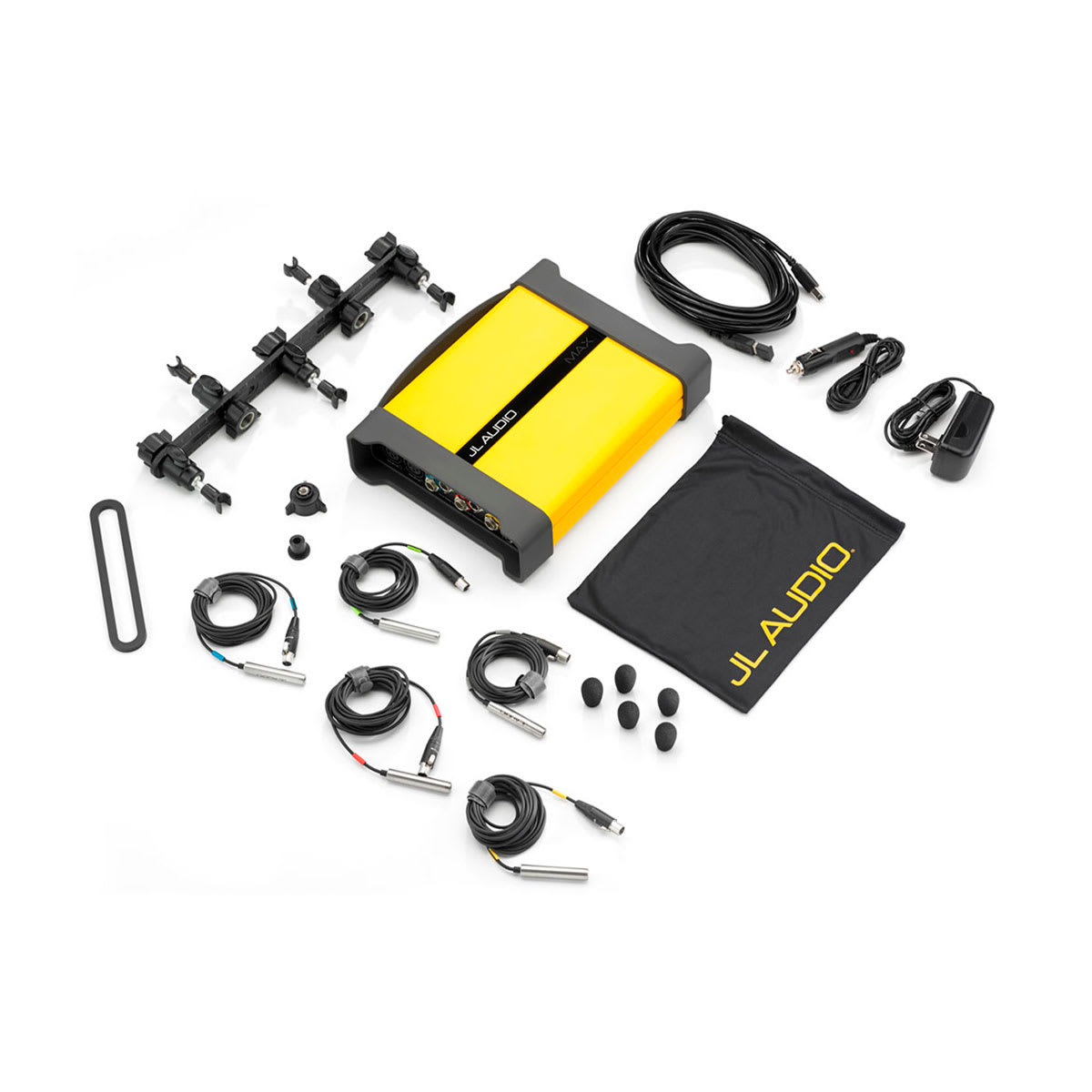

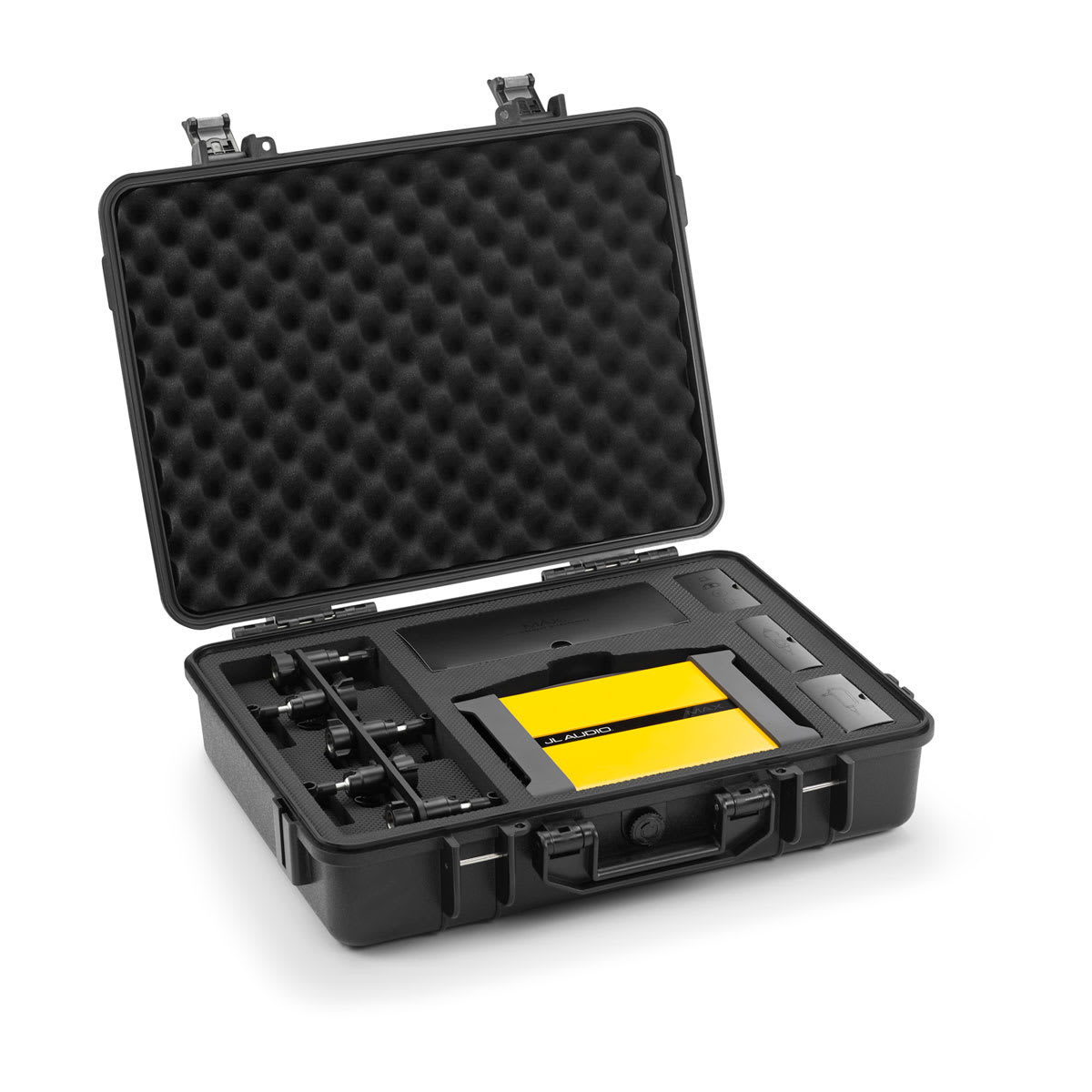

JL Audio Max™ Audio Measurement System (MAX-KIT)
Original price was: $3,499.99.$1,050.00Current price is: $1,050.00.
MAX is a professional-grade, 5 microphone, audio measurement system for system tuning with DSP and analyzing audio systems.
