JL Audio® Fathom® IWSv2 Subwoofer System

Price range: $2,172.00 through $2,178.00

- +
SKU: BUNDLE-JLAFIWSv2-ICAS Categories: ,

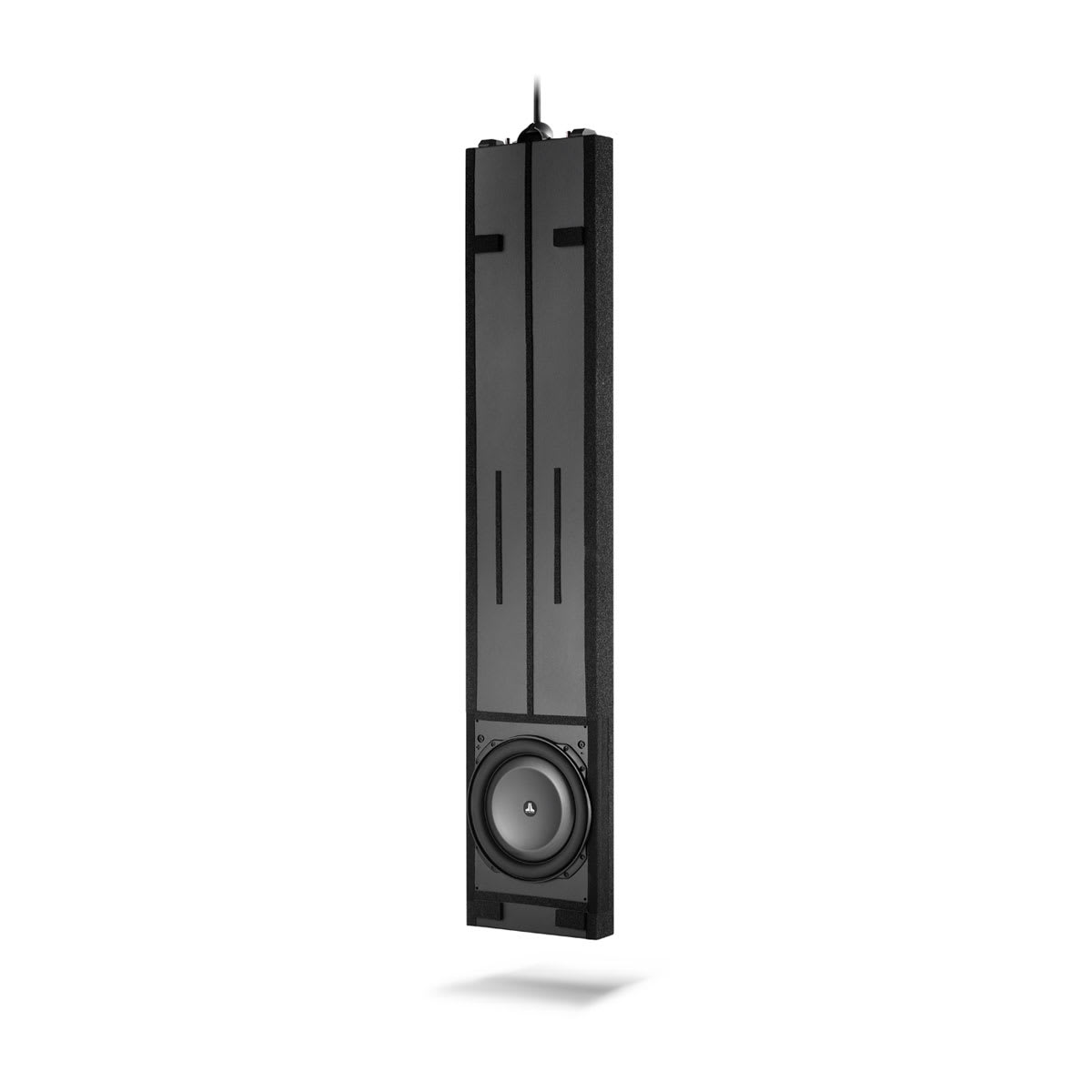

Fathom® IWSv2 in-wall subwoofer is an in-wall system fits in standard 2" x 4" wall construction and with features a unique floating mount design, and rack-mountable amplifier.

Guaranteed Safe Checkout

General

Sizes 13.5″/Dual 13.5″ Light modes off, on or dim Amplifier Power (RMS) 13.5″: 1000 W short-term
Dual 13.5″: 2000 W short-term Frequency response (Anechoic) 26 Hz-101 Hz (± 1.5 dB) Frequency response (Anechoic, -3dB) 25 Hz/112 Hz Frequency response (Anechoic, -10dB) 22 Hz/150 Hz Enclosure type Sealed Enclosure finish Black texture-coated Grille(s) included Power modes off, on or automatic (signal-sensing) Warranty 3 years

Signal Processing
Unbalanced inputs Stereo or mono (two RCA jacks)
Balanced inputs Stereo or mono (two female XLR jacks)
Input grounding Isolated or grounded
Input modes Master or slave
Level control Reference (fixed gain) or Variable, from full mute to +15 dB over reference gain
Filter mode(s) Low-pass
Filter slope(s) 12/24 dB/octave
Filter frequency range 30 Hz-130 Hz
Filter defeat function
Polarity 0 or 180º
Phase Variable, 0-270º, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) trim Variable, -12 dB to +3 dB at 23 Hz
Output to slave Balanced (one male XLR jack)
Calibration mode Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone

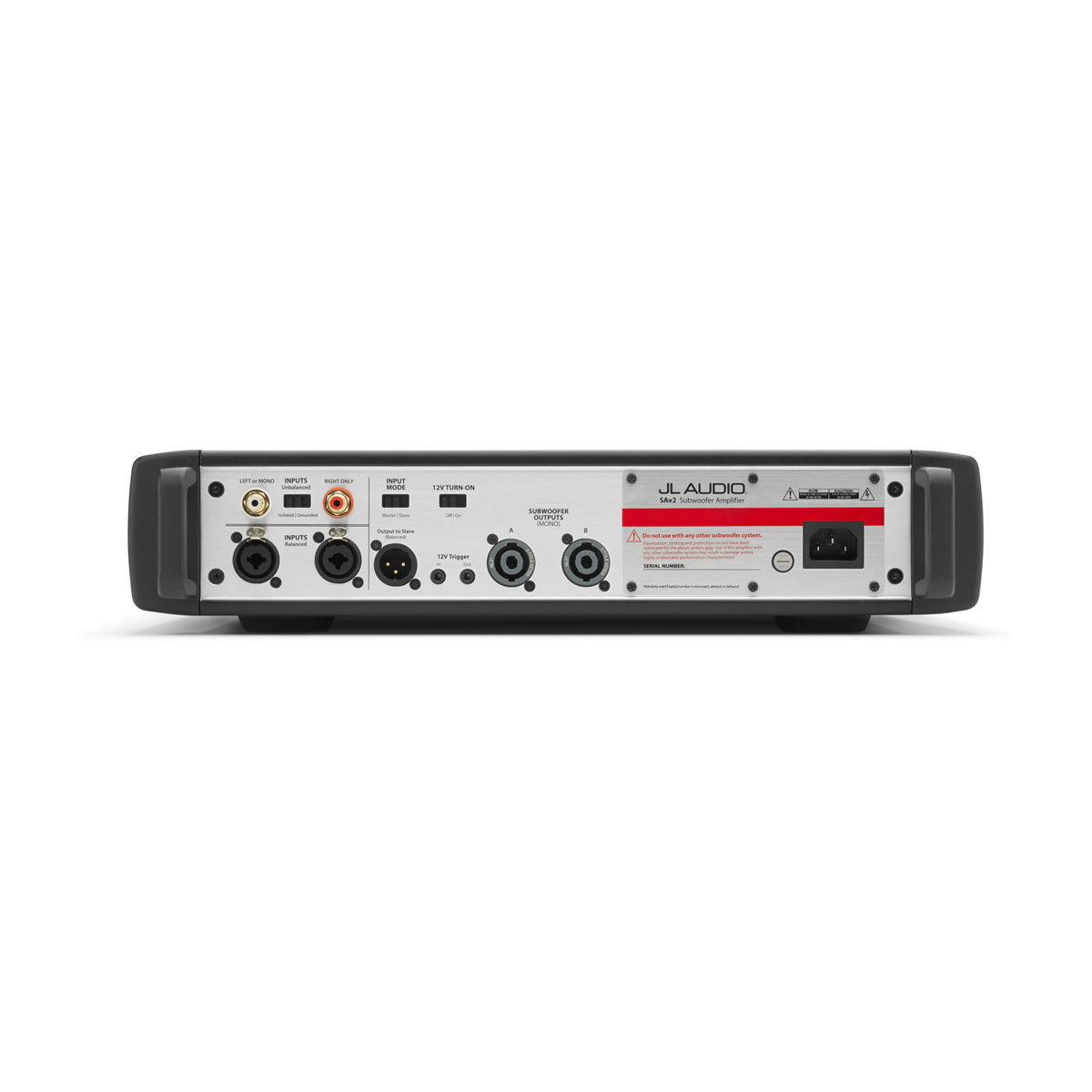

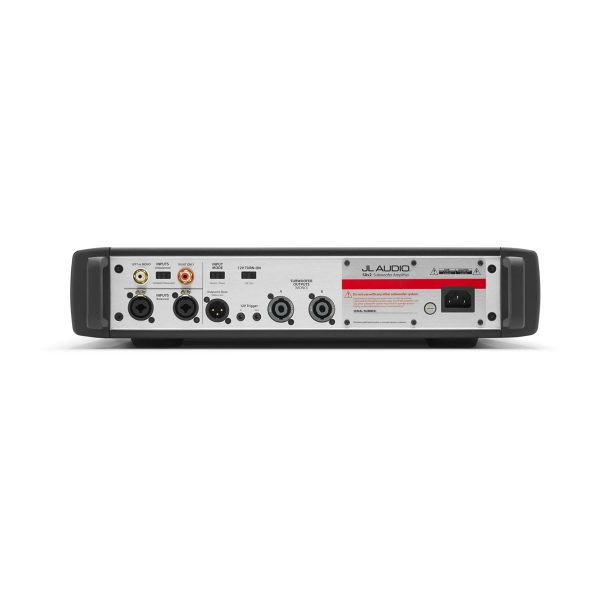

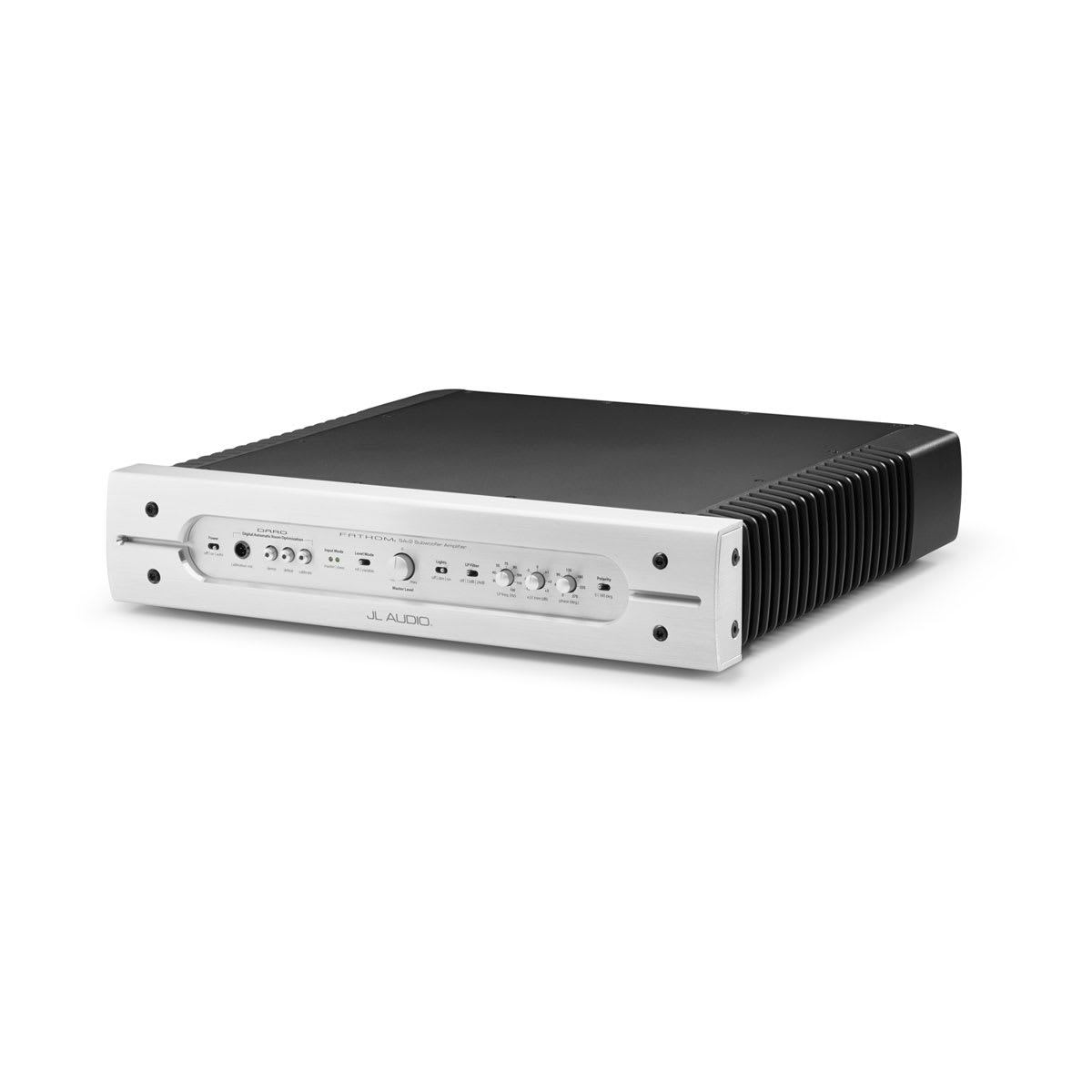

Amplifier Specifications
Width (W) 17.4″ (442 mm)
Height (H) 3.5″ (89 mm)
Depth (D) 17.9″ (455 mm)
Net weight (each) 13.5″: 35 lbs (15.9 kg)
Dual 13.5″: 43 lbs (19.5 kg)

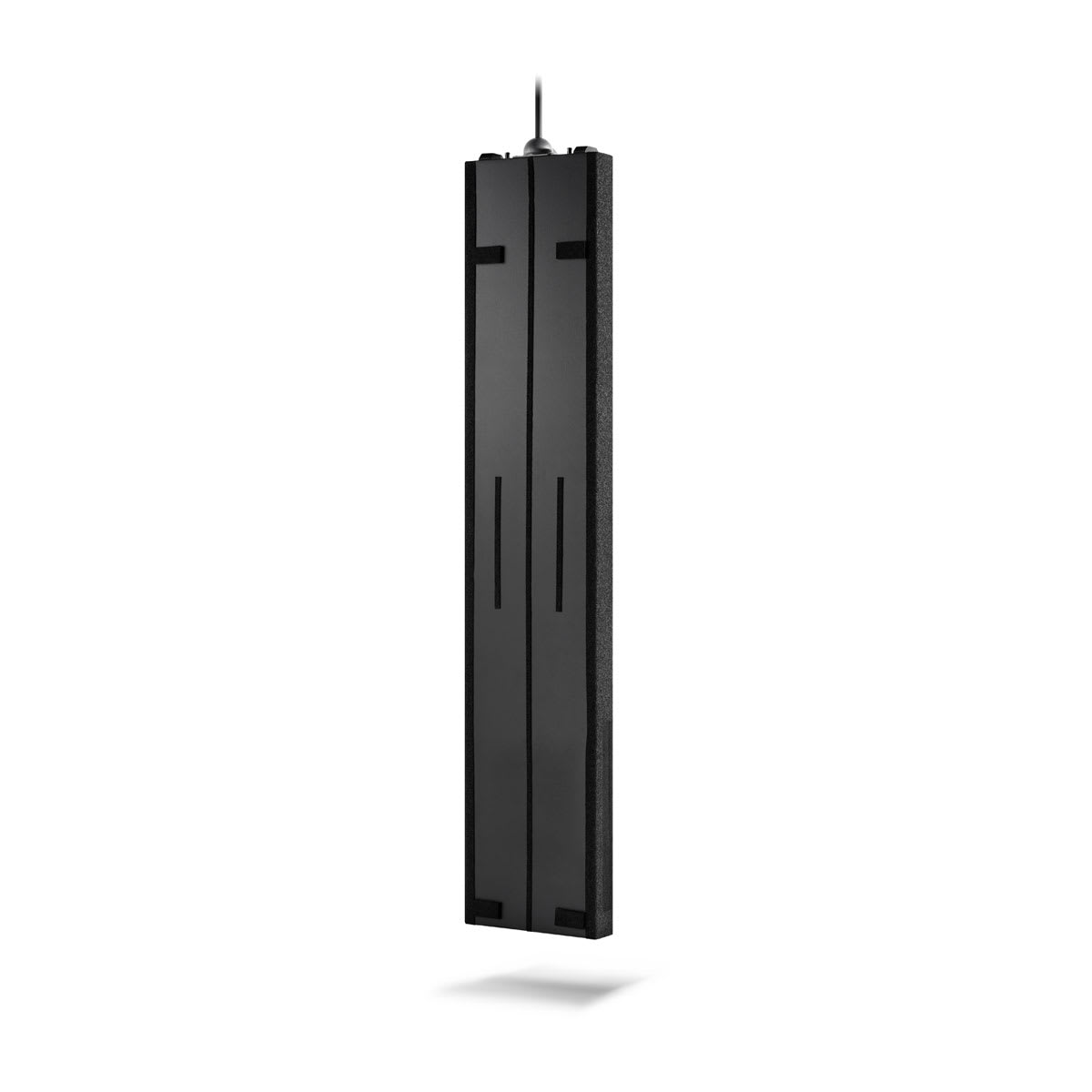

Enclosure Specifications for 2″ x 4″ Stud Construction
Cavity Width (W): Minimum 14.375″ (365 mm)
Cavity Width (W): Maximum 14.875″ (378 mm)
Cavity Height (H): Minimum 93.625″ (2,378 mm)
Width (W) 13.75″ (349 mm)
Height (H) 70″ (1,778 mm)
Depth (D) 2.94″ (75 mm)

Enclosure Specifications for 2″ x 6″ Stud Construction
Cavity Width (W): Minimum 14.375″ (365 mm)
Cavity Width (W): Maximum 14.875″ (378 mm)
Cavity Height (H): Minimum 93.625″ (2,378 mm)
Width (W) 13.75″ (349 mm)
Height (H) 55″ (1,397 mm)
Depth (D) 4.70″ (119 mm)

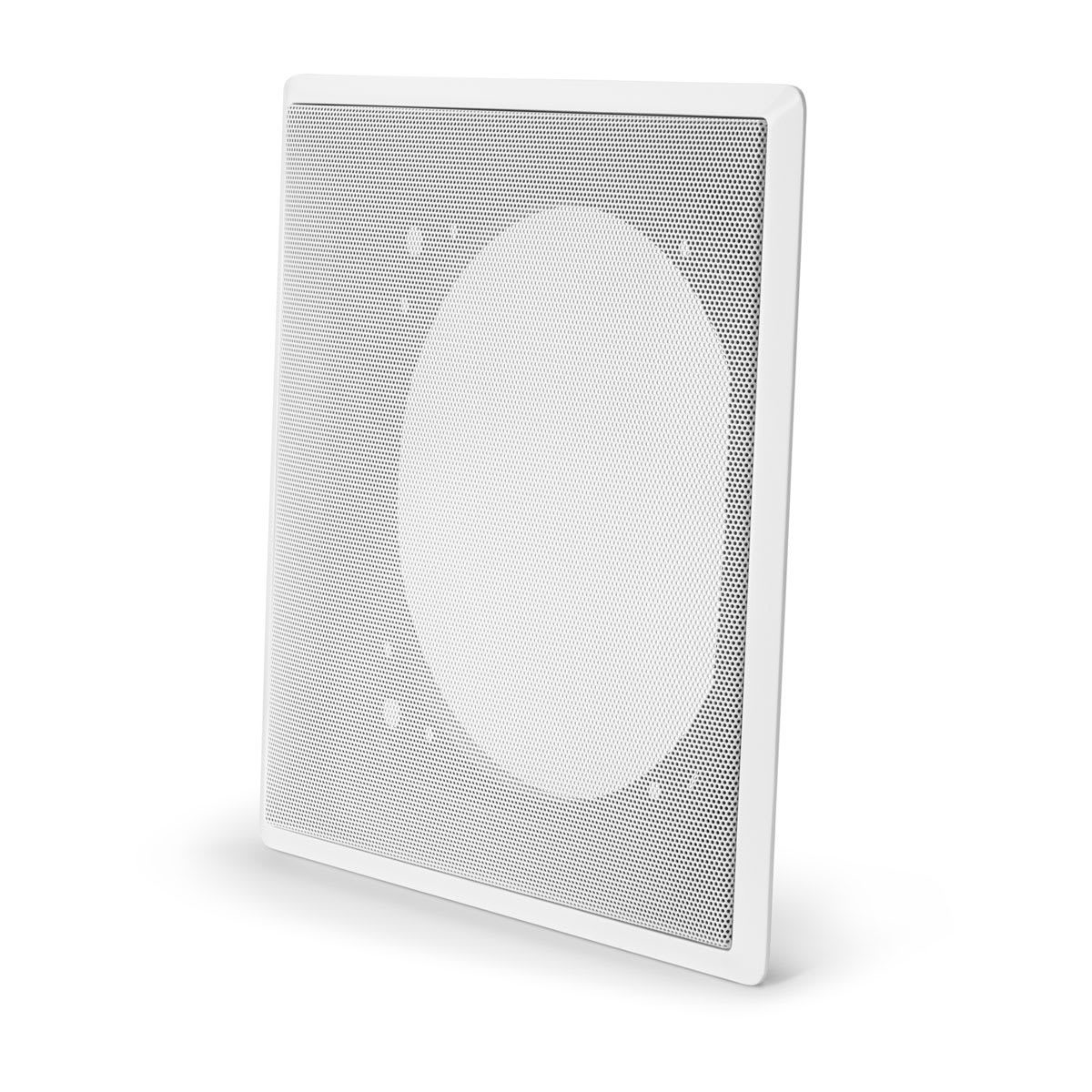

Grille Specifications
Grille width (W) 17.14″ (435 mm)
Grille height (H) 17.64″ (448 mm)
Opening width (W) 16″ (406 mm)
Opening height (H) 16.5″ (419 mm)

Parameters
Effective piston area (SD) 13.5″: 98.26 in² (0.0634 m²)
Dual 13.5″: 196.51 in² (0.1268 m²)
Effective displacement 13.5″: 147.3 cu in (2.41 L)
Dual 13.5″: 294.6 cu in (4.82 L)
Driver Quantity

Single, Dual
