Name: JL Audio Dominion® Powered Subwoofer
Brand: Garmin Official Site
SKU: 010-03314-00
Price: 303 USD
Availability: InStock

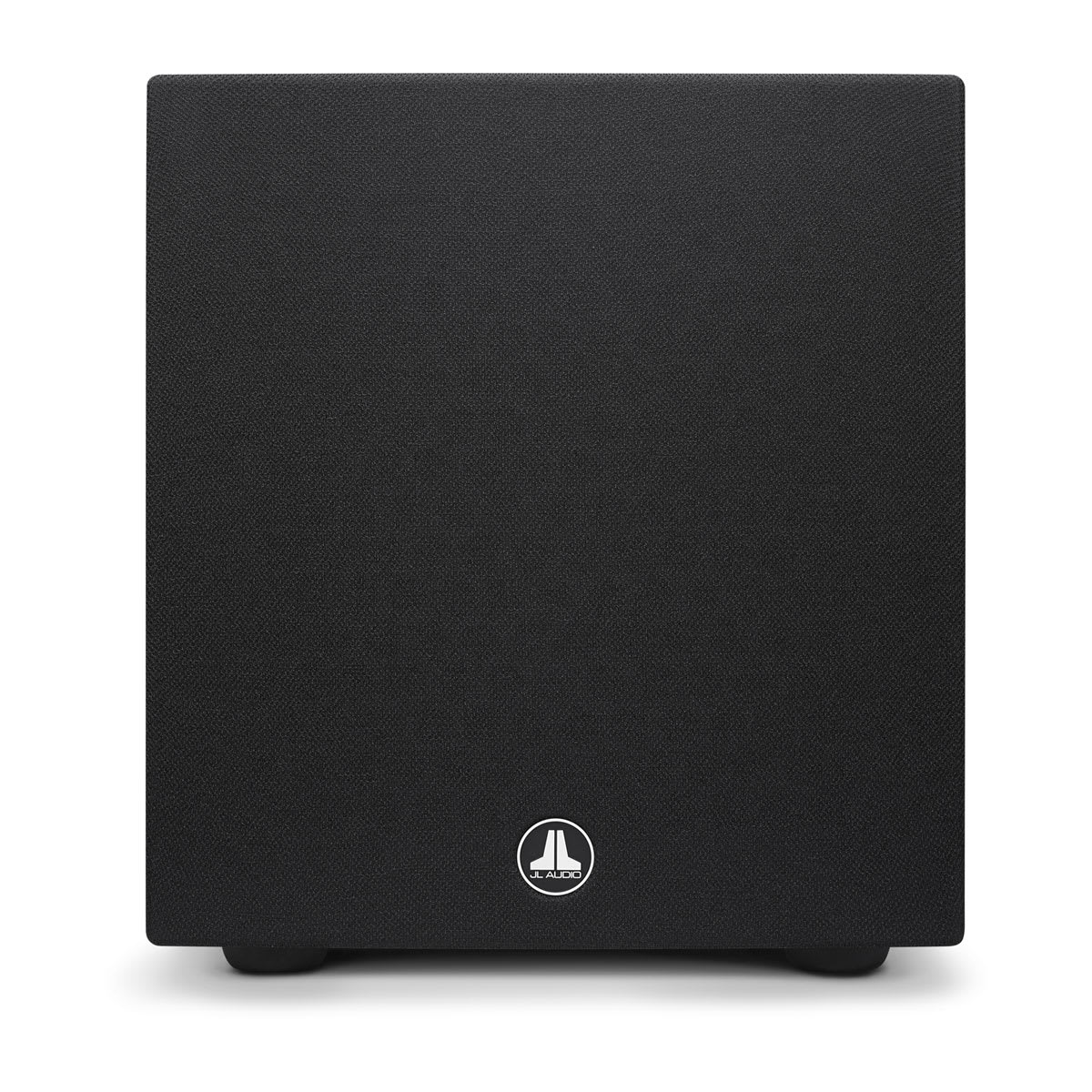

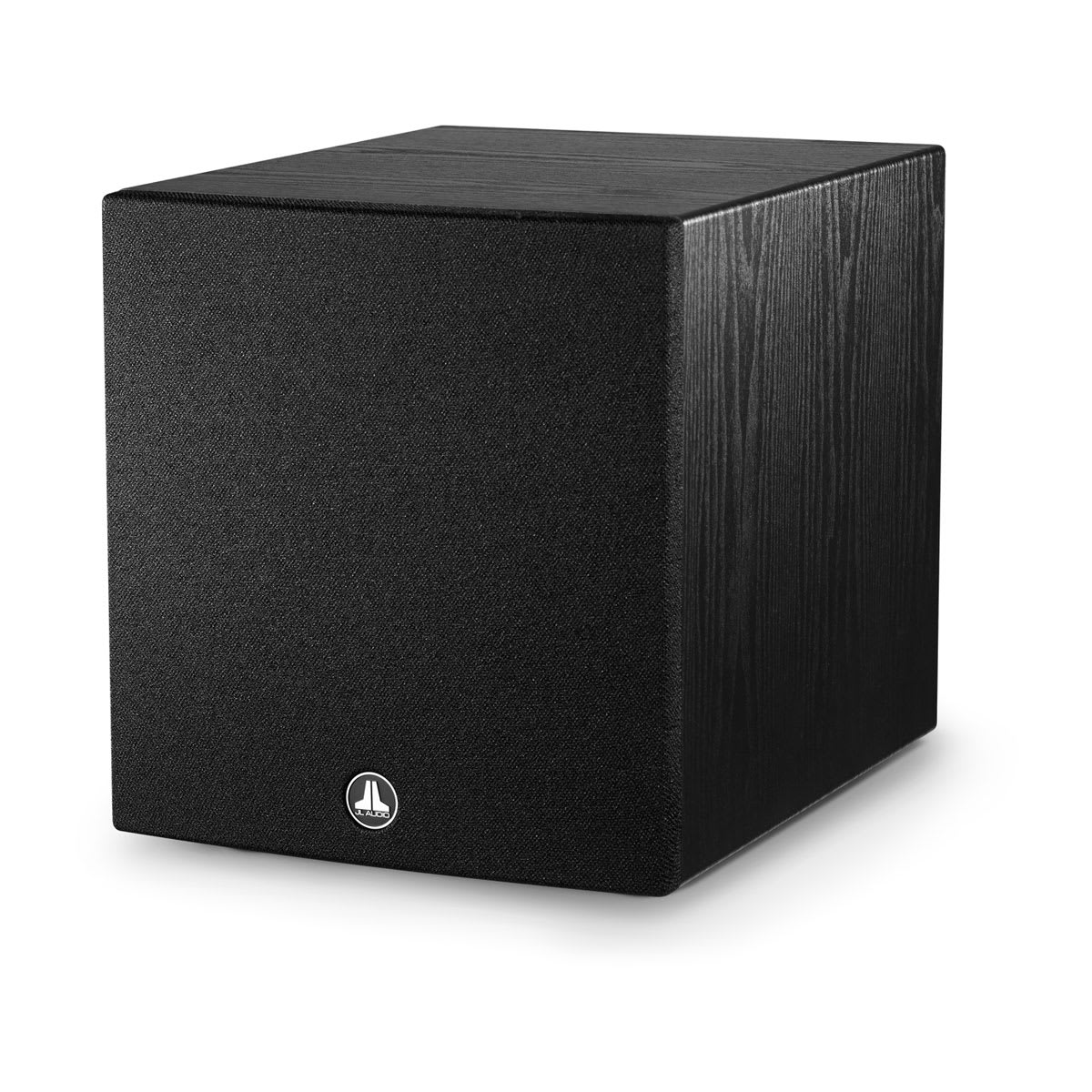

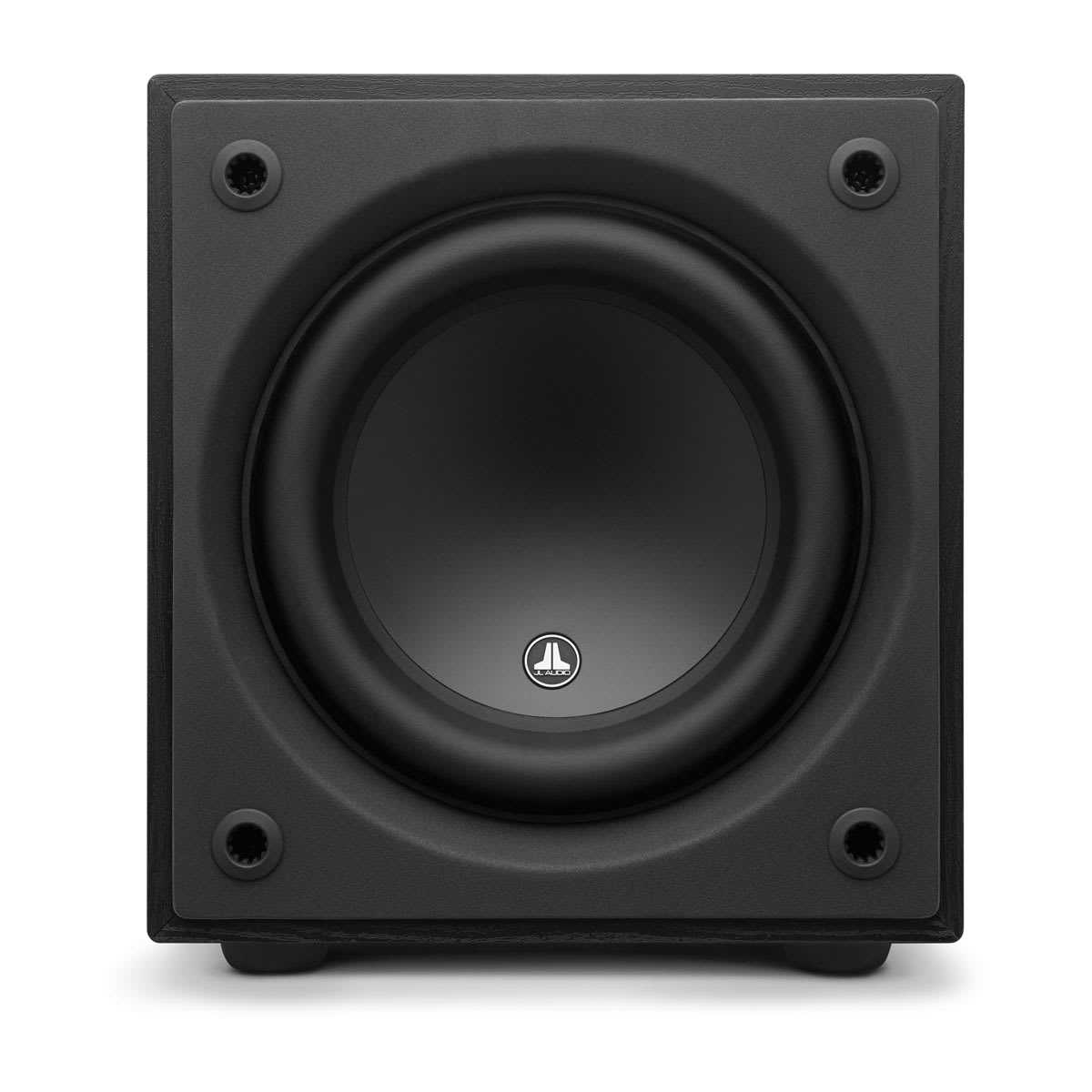

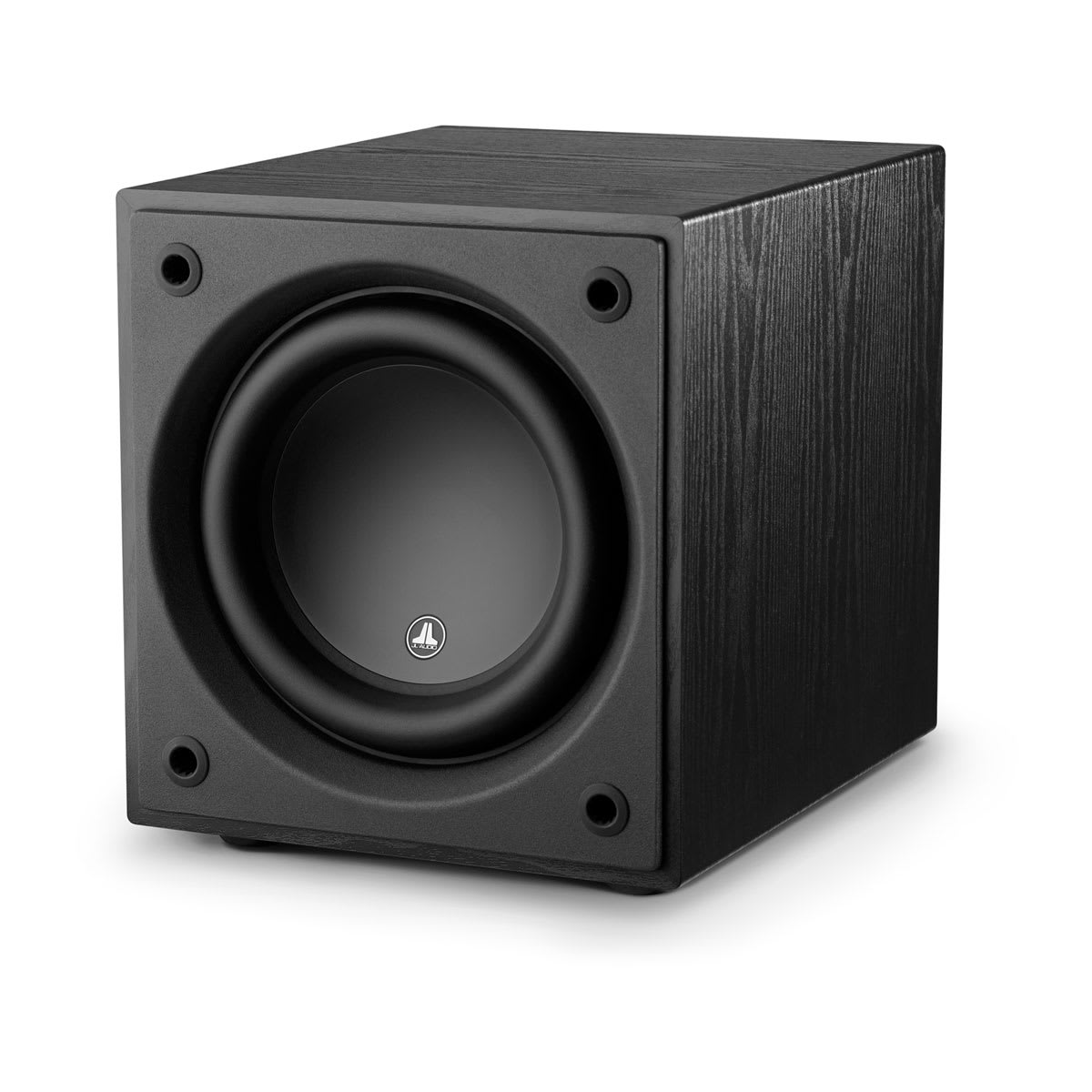

JL Audio Dominion® Powered Subwoofer

SKU: 010-03314-00 Categories: Auto & Home, Home Audio

The Dominion® home subwoofer s is state-of the art with a Class-D amplifier delivering, up to 750 watts of power. Available in 8- or 10-inch sizes and gloss black or ash finishes.

Guaranteed Safe Checkout

General

Sizes 8″/10″ Physical dimensions (Height) 8″: 11.37″ (289 mm)
10″: 13.4″ (340 mm) Physical dimensions (Width) 8″: 12″ (305 mm)
10″: 10″ (254 mm) Physical dimensions (Depth) 8″: 13.23″ (336 mm)
10″: 15.86″ (403 mm) Weight 8″: 26.4 lbs (12 kg)
10″: 38.2 lbs (17.3 kg) Amplifier Power (RMS) 8″: 500 W short-term
10″: 750 W short-term Frequency response (Anechoic) 8″: 31-112 Hz (±1.5 dB)
10″: 27-111 Hz (±1.5 dB) Frequency response (Anechoic, -3dB) 8″: 29 Hz/119 Hz
10″: 25 Hz/118 Hz Frequency response (Anechoic, -10dB) 8″: 21 Hz/143 Hz
10″: 21 Hz/143 Hz Enclosure type Sealed Enclosure finish Black ash or black gloss Grille(s) included Power modes Automatic (signal-sensing) Warranty 3 years

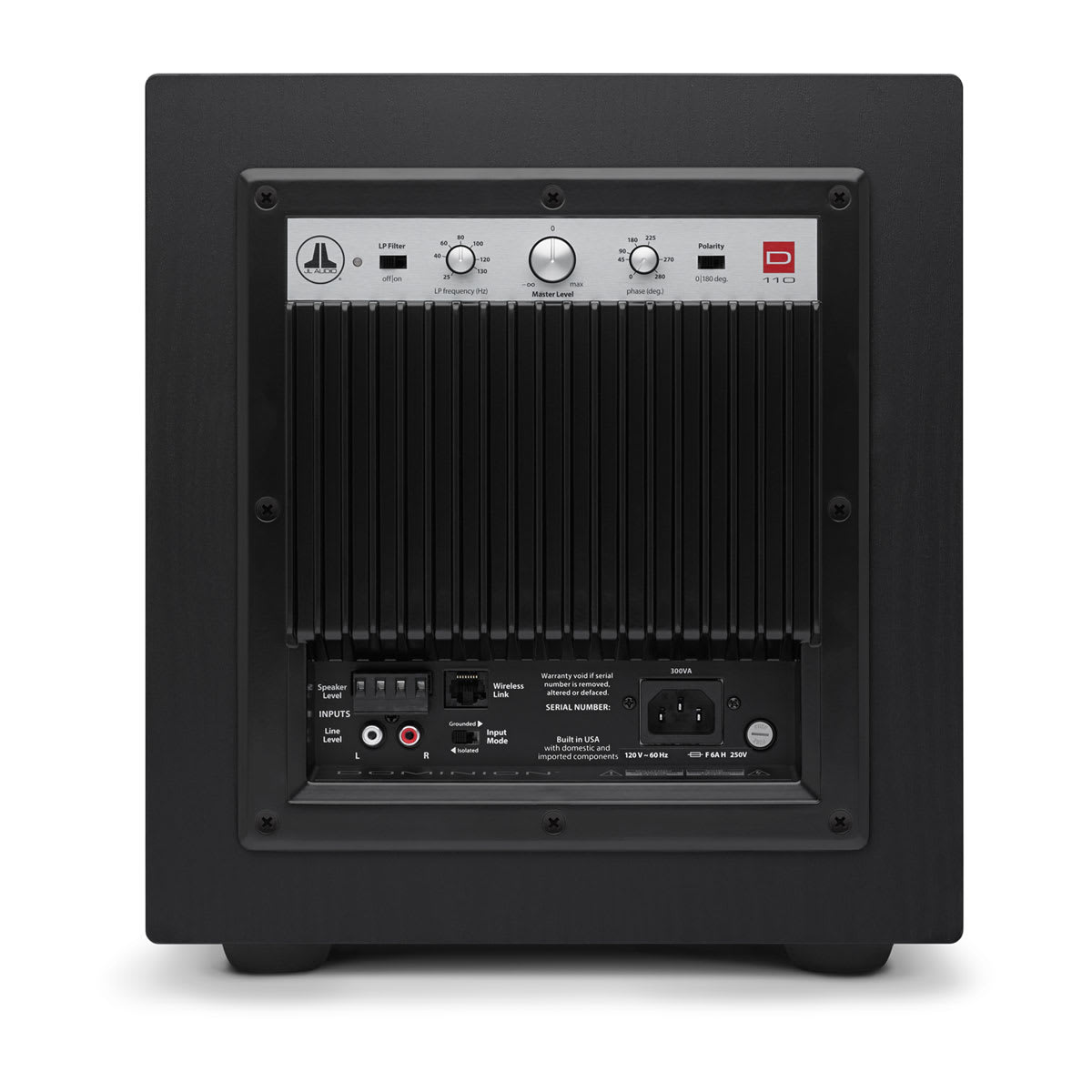

Signal Processing
Unbalanced inputs	Stereo or mono (two RCA jacks)
Speaker/High-level inputs	Stereo or mono (removeable plug)
Input grounding	Isolated or grounded
Level control	Variable, from full mute to +15 dB over reference gain
Filter mode(s)	Low-pass
Filter slope(s)	24 dB/octave
Filter frequency range	25 Hz-130 Hz
Filter defeat function
Polarity	0 or 180º
Phase	Variable, 0-280º, referenced to 80 Hz

Parameters
Effective piston area (SD)	8″: 32.18 in² (0.0208 m²) 10″: 48.71 in² (0.0314 m²)
Effective displacement	8″: 80 cu in (1.3 L) 10″: 127 cu in (2.08 L)
