JL Audio® C6 Car Speakers

Price range: $51.00 through $72.00

- +
SKU: 010-03389-00 Categories: , , ,

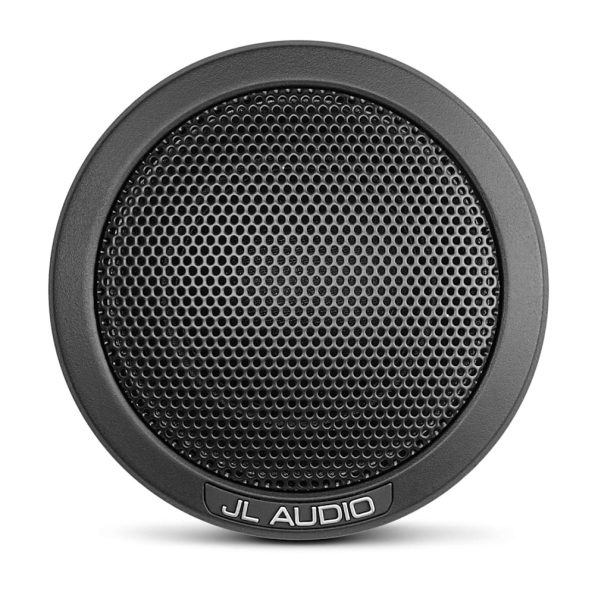

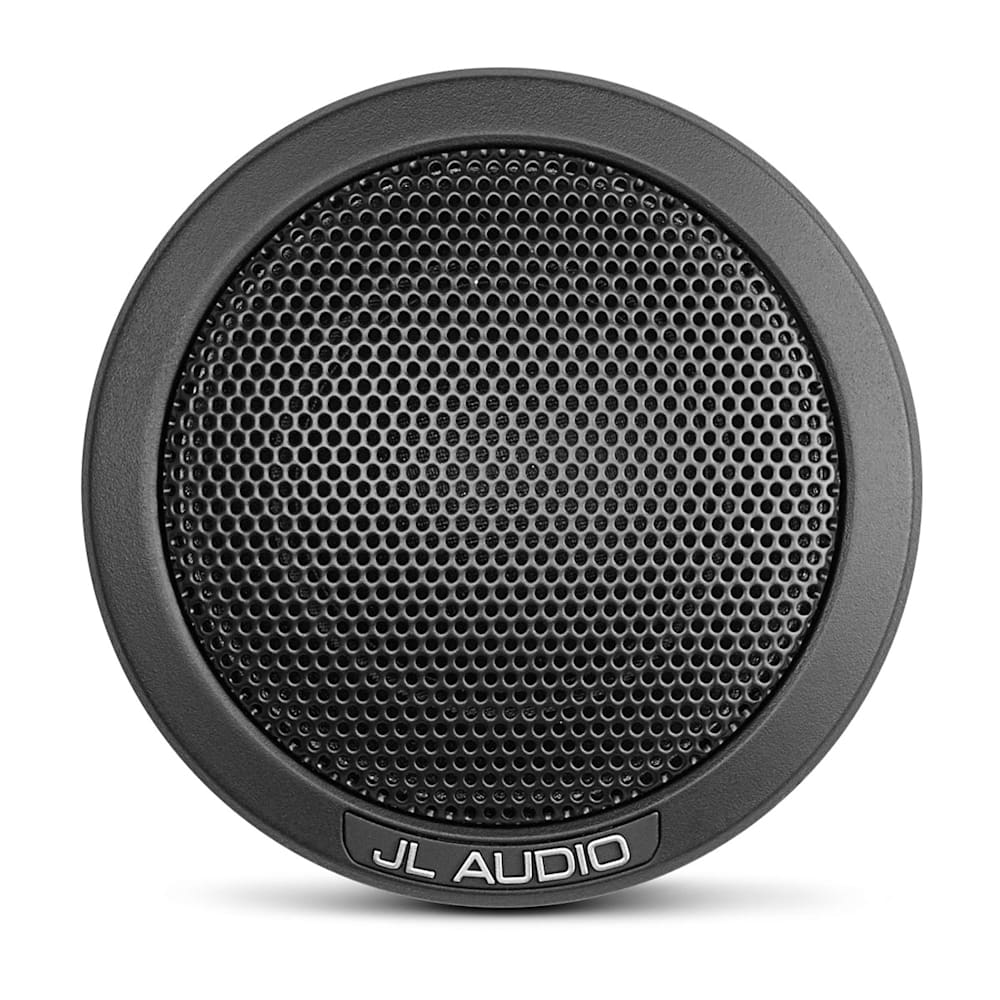

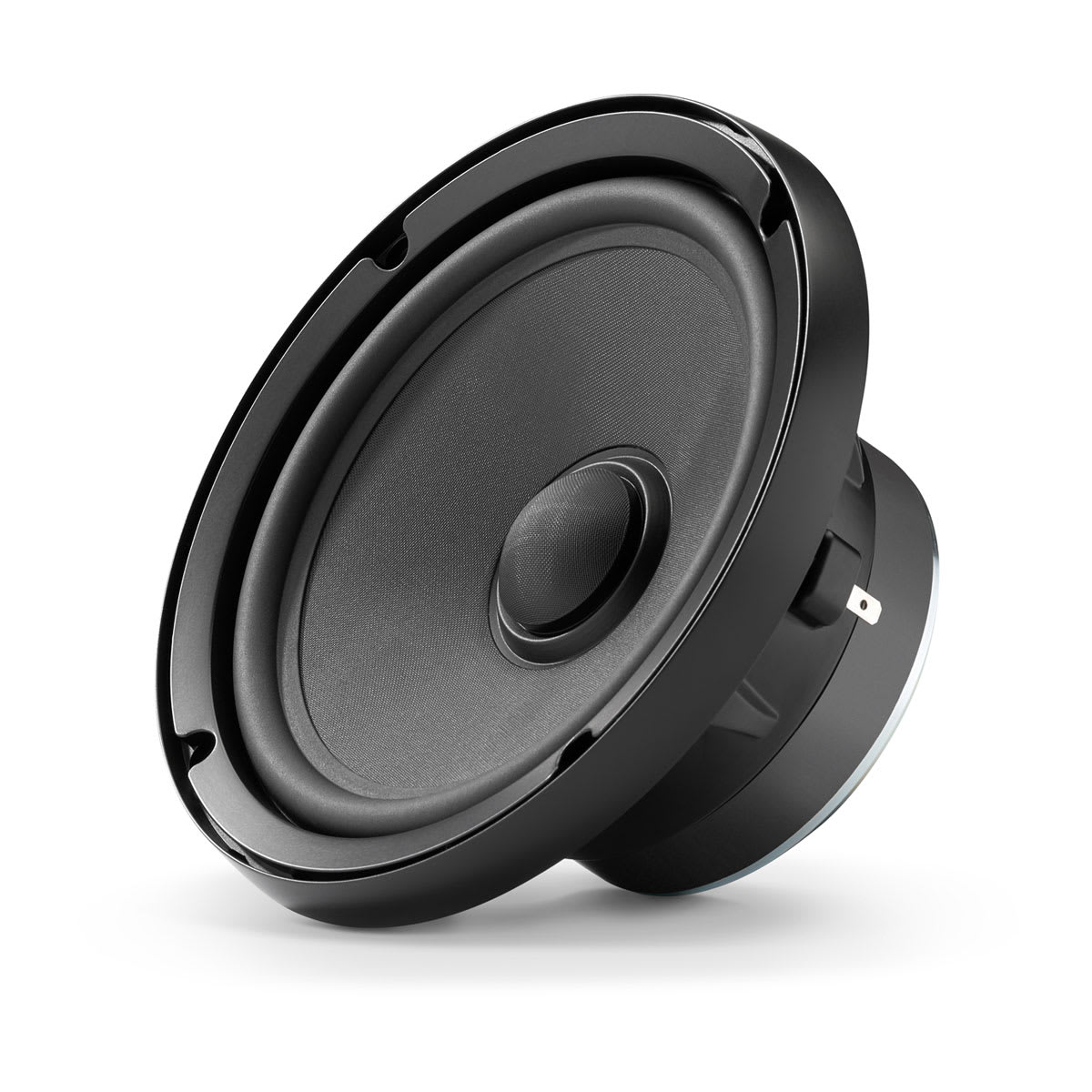

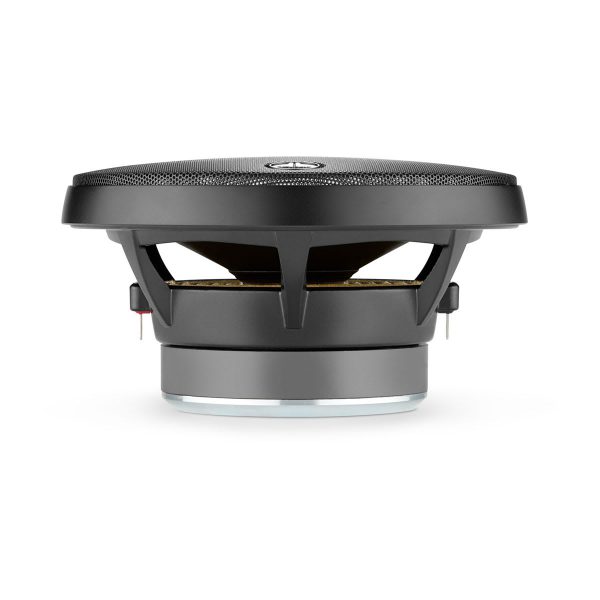

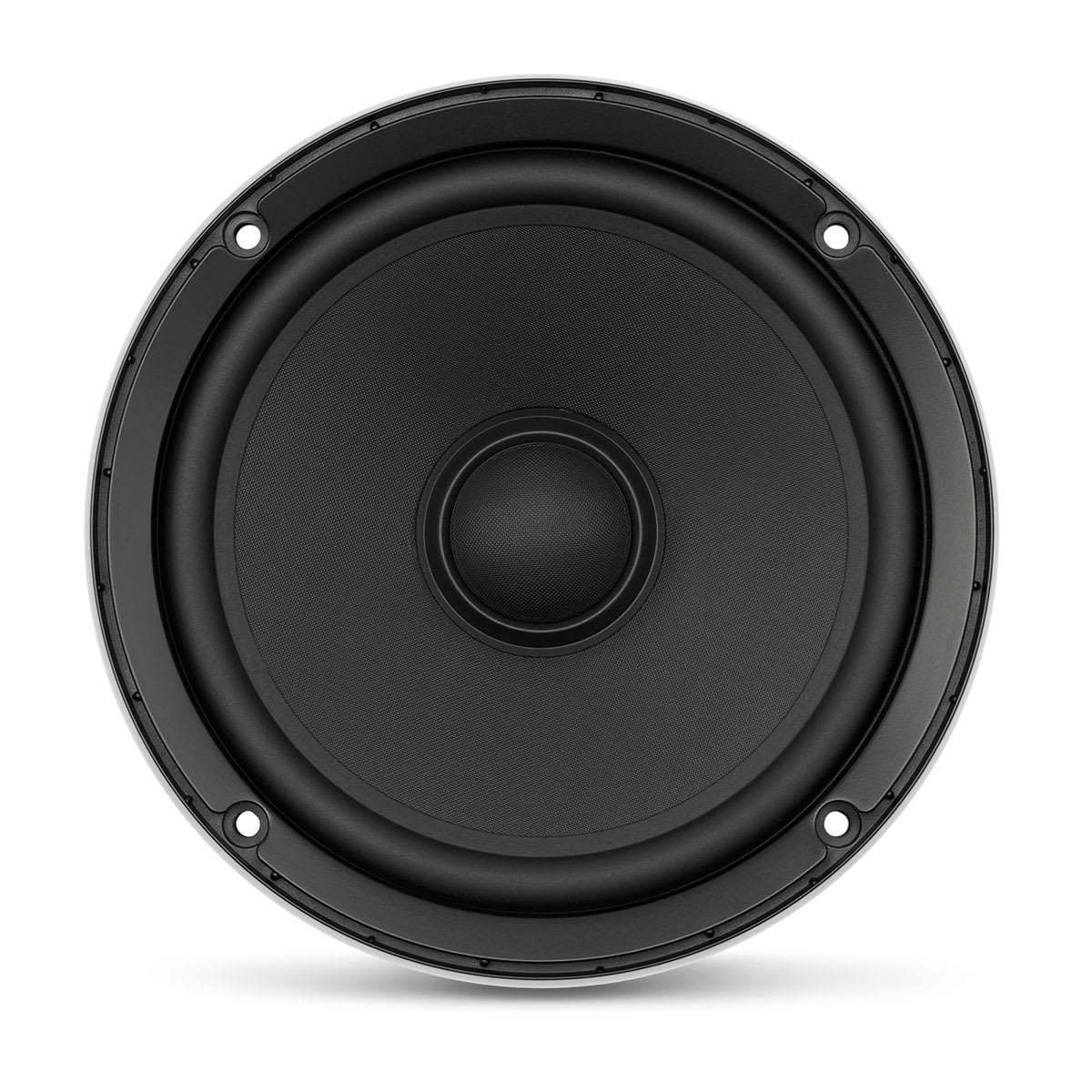

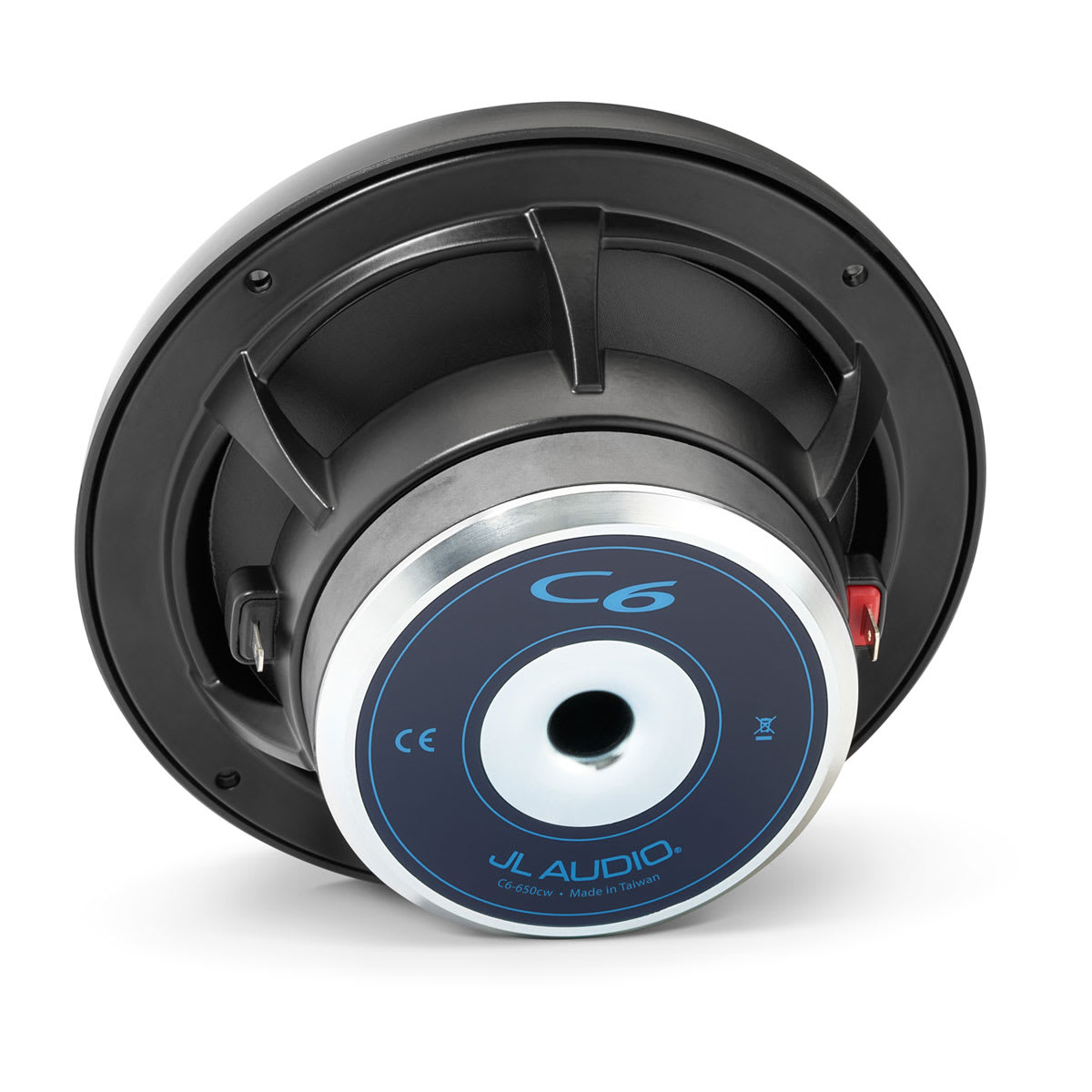

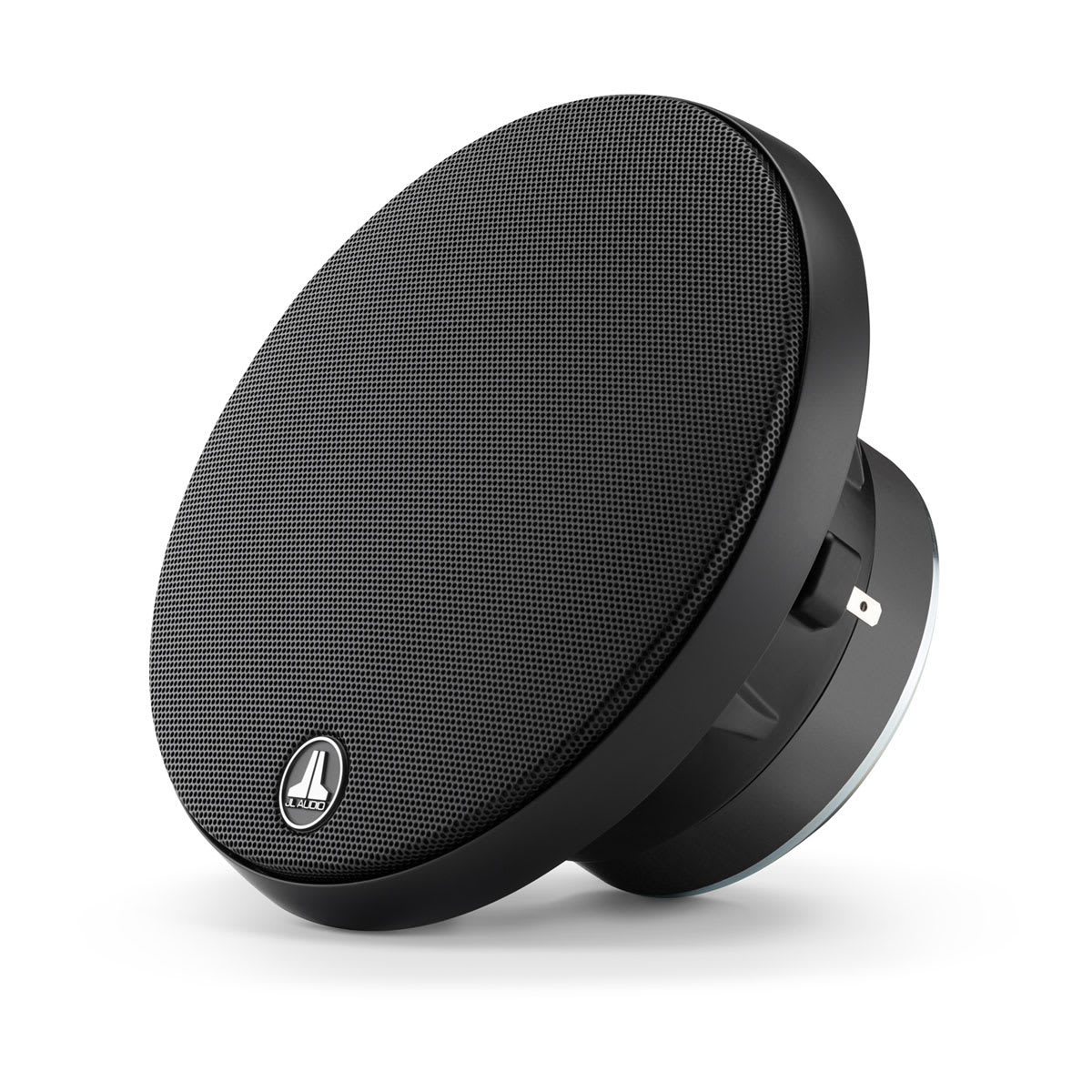

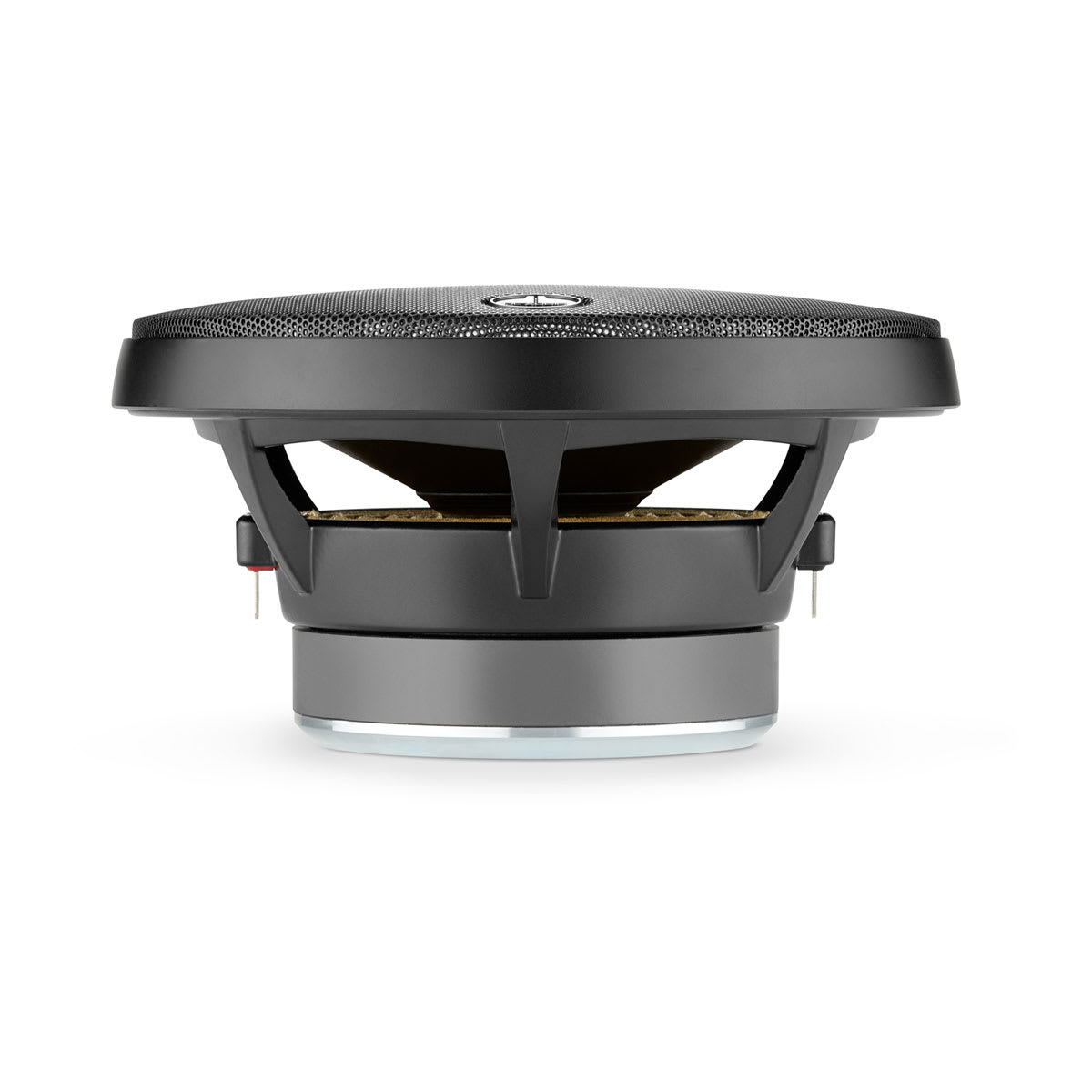

C6 component speakers are premium silk dome tweeters, midrange speakers and woofers that are each sold separately for a flexible system design.

Guaranteed Safe Checkout

General

Sizes 1″/2.75″/6.5″ Continuous power handling (RMS) 1″: 75 W
2.75″: 50 W
6.5″: 100 W Sensitivity (SPL @ 1 W/1 m) 1″: 90 dB
2.75″: 83.50 dB
6.5″: 87.37 dB Sensitivity (SPL @ 1 W/0.5 m) 1″: 96 dB Sensitivity (SPL @ 2.83 V/1 m) 1″: 93 dB
2.75″: 86.50 dB
6.5″: 90.33 dB Frequency response (+/- 3 dB) 1″: 3 kHz-21 KHz
2.75″: 350 Hz-4.8 KHz
6.5″: 55 Hz-6 KHz Nominal impedance 4 Ω Recommended amplifier power (RMS) 1″: 25-100 W/Channel
2.75″: 25-80 W/Channel
6.5″: 25-150 W/Channel Voice coil diameter 2.75″: 0.8″ (20.5 mm)
6.5″: 1.27″ (32 mm) Cone material Vacuum-formed, mineral-filled polypropylene Tweeter type Silk Dome Tweeter size 1″ (25 mm) Grille(s) included Warranty 1 year

Connections
Speaker connections Spade connectors

Mounting Dimensions
Frame outer diameter 2.75″: 2.52″ (77 mm)
6.5″: 6.5″ (165 mm)
Mounting depth clearance 2.75″: 1.42″ (36 mm)
6.5″: 2.60″ (66 mm)
Frontal grille protrusion 2.75″: 0.47″ (12 mm)
6.5″: 1″ (25 mm)
Mounting hole 2.75″: 2.52″ (64 mm)
6.5″: 5.46″ (139 mm)
Grille tray outer diameter 2.75″: 3.58″ (91 mm)
6.5″: 6.76″ (172 mm)
Bolt hole circle 2.75″: 3.03″ (77 mm)
6.5″: 6.12″ (156 mm)
Motor outer diameter 2.75″: 2.75″ (69 mm)
6.5″: 3.54″ (90 mm)

Parameters
Free Air Resonance (FS) 1″: 1500 Hz
2.75″: 185 Hz
6.5″: 52.8 Hz
Electrical “Q” (Qes) 2.75″: 0.769
6.5″: 0.647
Mechanical “Q” (Qms) 2.75″: 7.848
6.5″: 5.076
Total “Q” (Qts) 2.75″: 0.700
6.5″: 0.574
Equivalent Compliance (Vas) 2.75″: 0.0353 cu ft (0.125 L)
6.5″: 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 2.75″: 0.059″ (1.50 mm)
6.5″: 0.148″ (3.75 mm)
Reference Efficiency (NO) 1″: 0.602%
2.75″: 0.1414%
6.5″: 0.344%
Moving mass (Mms) 2.75″: 4.65 g
6.5″: 16.42 g
Mechanical compliance (Cms) 2.75″: 0.00031 m/N
6.5″: 0.000581 m/N
Magnetic strength (BL) 2.75″: 5.03
6.5″: 5.186
Effective piston area (SD) 2.75″: 3.66 in² (0.00236 m²)
6.5″: 21.4 in² (0.013807 m²)
DC resistance (RE) 1″/6.5″: 3.20 Ω
2.75″: 3.58 Ω

Tweeter Specifications
Flush mount fixture diameter 1″: 2.13″ (54 mm)
Surface mount fixture diameter 1″: 2.11″ (54 mm)
Flush mount mounting hole diameter 1″: 1.85″ (47 mm)
Flush mount mounting depth 1″: 1.85″ (47 mm)
Flush mount tweeter frontal protrusion 1″: 0.30″ (8 mm)
Surface mount tweeter frontal protrusion 1″: 1.04″ (26 mm)
Size

1\", 2.75\", 6.5\"
Type

Tweeter, Midrange, Woofer, Two-way Component System, Three-way Component System
