General
6″: 89.5 dB
6″: 48 Hz-25 KHz
1″: 4 kHz-25 KHz
Connections |
|
| Speaker connections | Spade connectors |
|---|---|

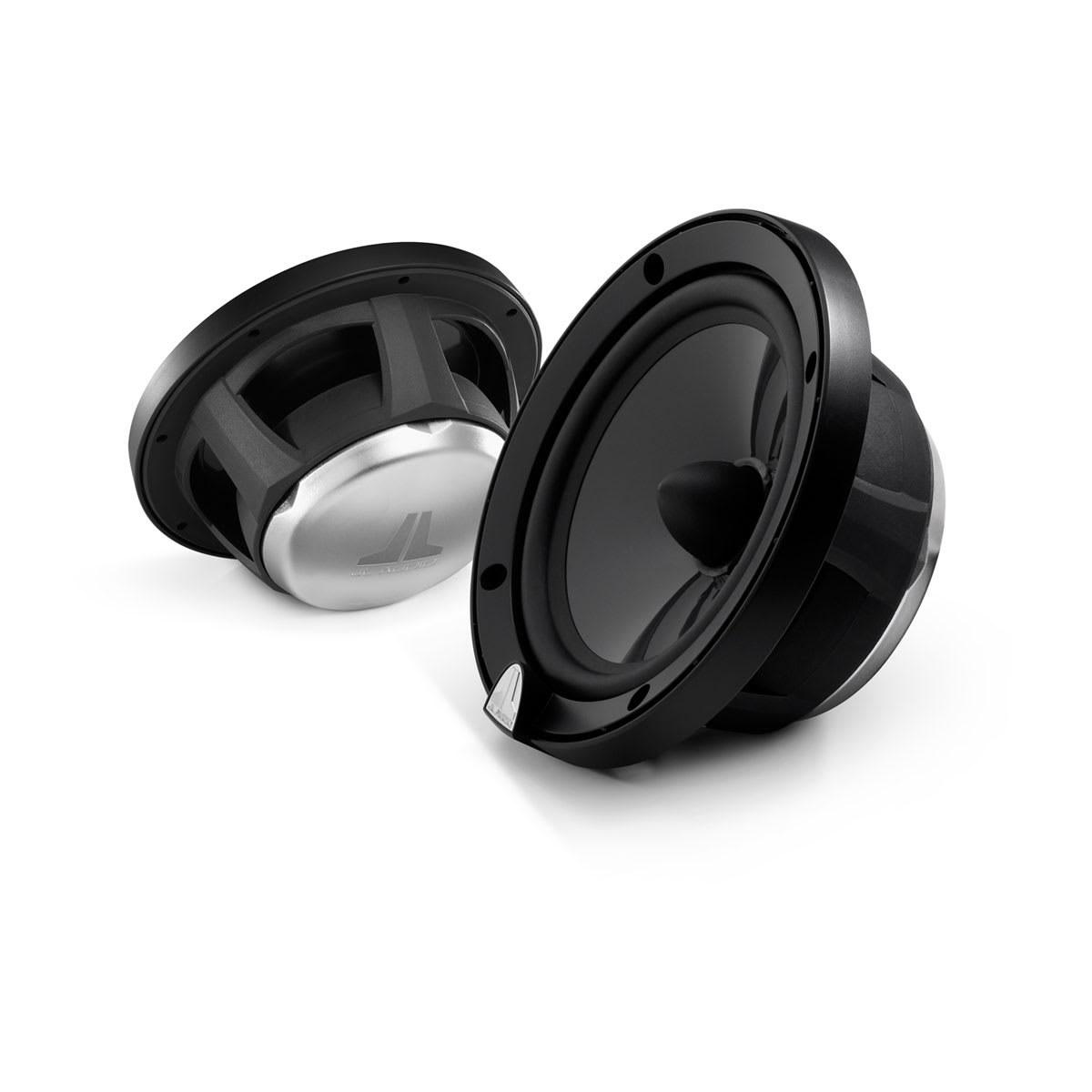

Mounting Dimensions |
|
| Frame outer diameter | 5.25″: 5.80″ (147 mm) 5 x 7″: 5.52 x 7.68″ (140 x 195 mm) 6″: 6.21″ (157.7 mm) 6.5″: 6.5″ (165 mm) |
|---|---|
| Mounting depth clearance | 5.25″: 2.27″ (58 mm) 5 x 7″: 2.52″ (64 mm) 6″: 2.49″ (63 mm) 6.5″: 2.55″ (65 mm) |
| Frontal grille protrusion | 5.25″: 1″ (25 mm) 6″/6.5″: 1.03″ (26.2 mm) |
| Mounting hole | 5.25″: 4.56″ (116 mm) 6″: 5″ (127 mm) 6.5″: 5.56″ (141 mm) |
| Grille tray outer diameter | 5.25″: 6″ (152 mm) 6″: 6.46″ (164.1 mm) 6.5″: 6.74″ (171 mm) |
| Motor outer diameter | 4.08″ (104 mm) 5.25″: 3.38″ (86 mm) |

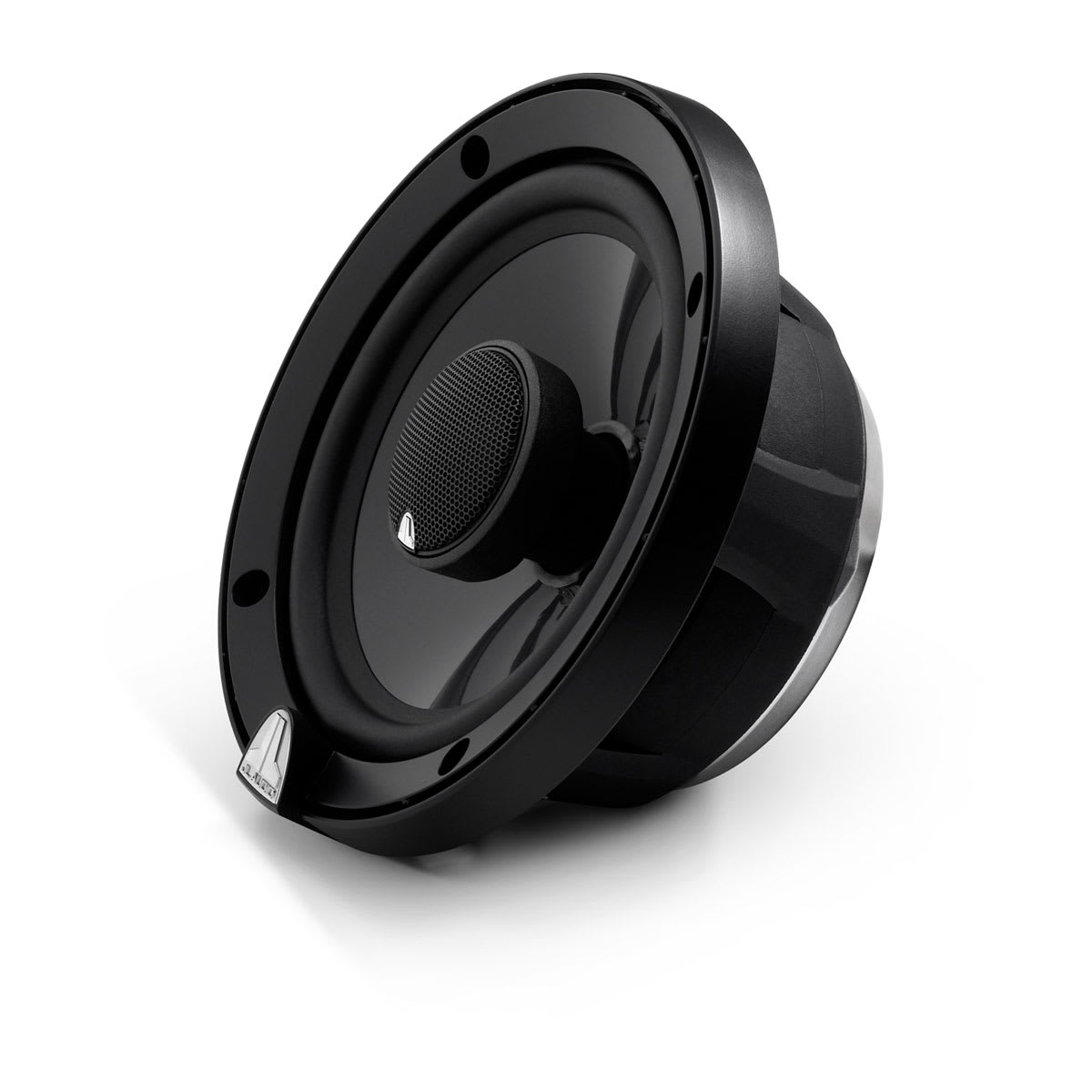

| Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) | 5.25″: 0.69″ (18 mm) 5 x 7″: 0.78″ (20 mm) 6″: 0.81″ (20.6 mm) 6.5″: 0.75″ (19 mm) |

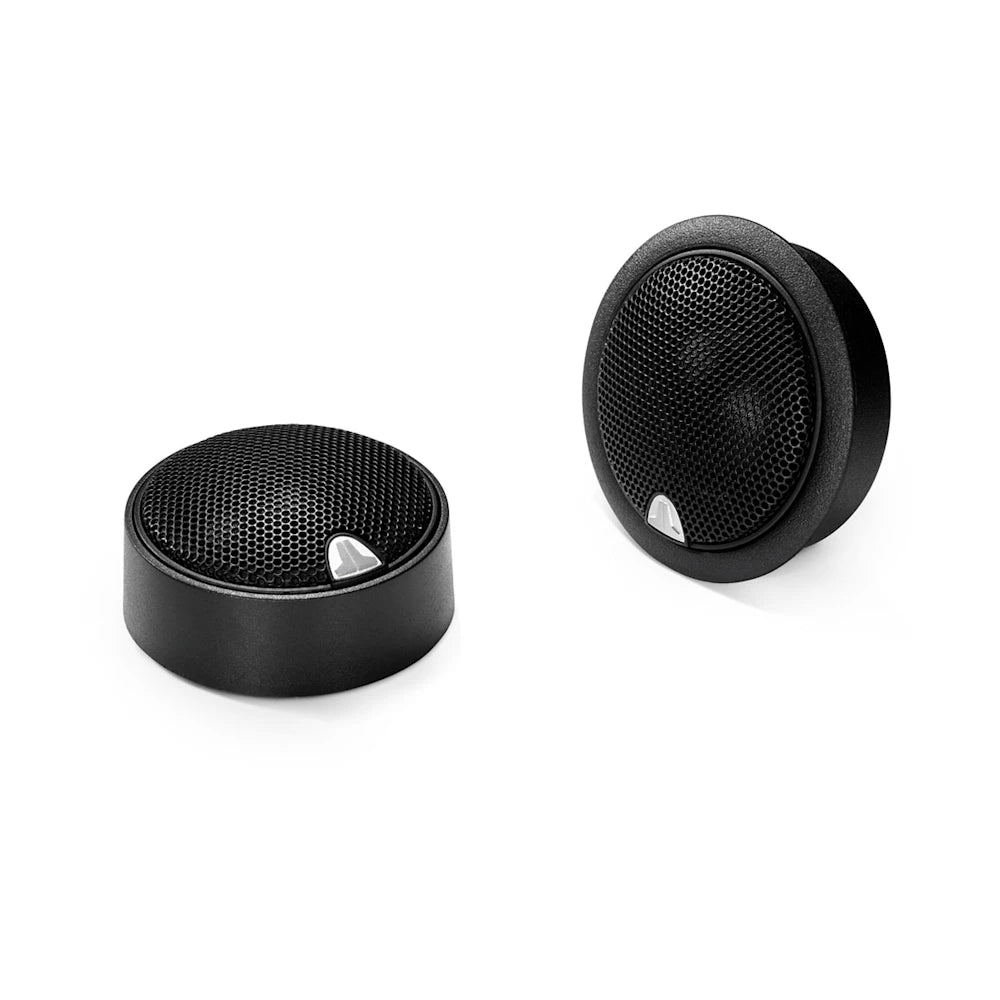

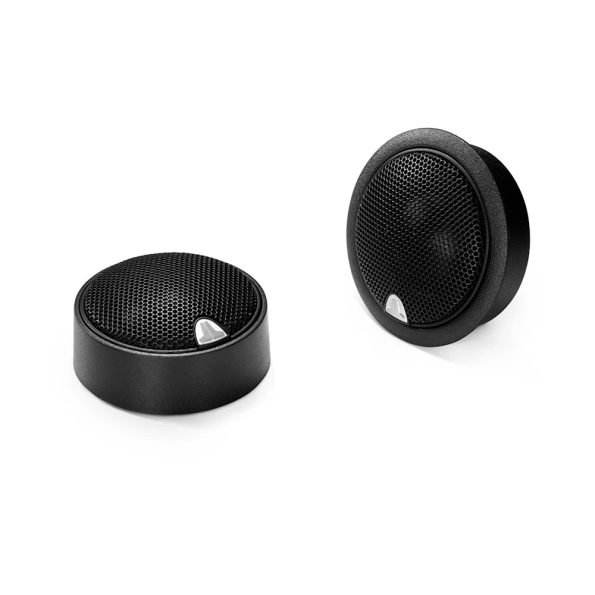

Tweeter Specifications |
|
| Flush mount fixture diameter | 2.12″ (54 mm) |
|---|---|
| Surface mount fixture diameter | 1.9″ (49 mm) |
| Flush mount mounting hole diameter | 1.875″ (48 mm) |
| Flush mount mounting depth | 0.71″ (18 mm) |
| Flush mount tweeter frontal protrusion | 0.32″ (8 mm) |
| Surface mount tweeter frontal protrusion | 0.95″ (24 mm) |

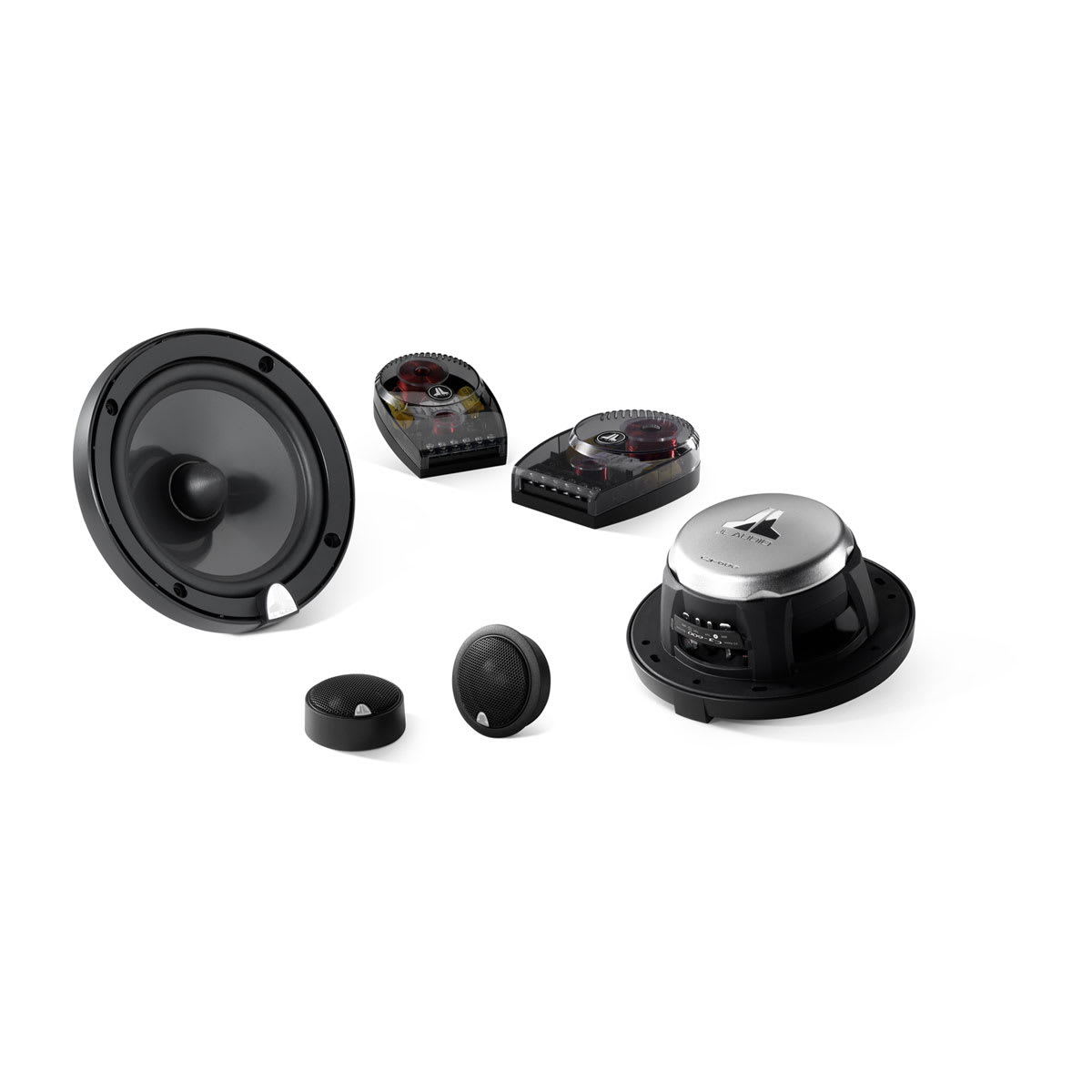

Crossover Specifications |
|
| Width | 3.36″ (85 mm) |
|---|---|
| Height | 1.44″ (37 mm) |
| Depth | 4.72″ (120 mm) |
