General |
|
| Dimension | 18.0″ x 12.0″ x 2.7 (45.7 cm x 30.5 cm x 6.9 cm) |
|---|---|
| Weight |
14.16 lbs (6.42 kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | 4K, IPS |
| Display Size | 16.1″ x 9.1″ x 18.5″ diagonal, 40.9 cm x 23.0 cm x 46.9 cm diagonal |
| Display resolution | 3840 x 2160 pixels |
| Mounting Options | Flush or flat |
| Input | Touchscreen |
Maps & Memory |
|
| Accepts Data Cards |
2 SD Cards |
|---|---|
| Compatible with Garmin SD card reader | |
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| BeiDou | |
| Receiver |
10 Hz (included receiver) |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | |
|---|---|
| Garmin Navionics+ Inland & Coastal | |
| Tide tables | |
Optional Map Support |
|
| Garmin Navionics+™ | |
|---|---|
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Garmin Quickdraw Contours | |
| Raster chart support | |
Chartplotter Features |
|
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GSD Black Box Sonar Support | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible |
yes |
| GRID (Garmin Remote Input Device) compatible | |
| Wireless Remote Compatible | |
| Sailing Features | |
| Spoken audio alerts | |
| OneHelm support | |
Electrical Features |
|
| Power Input | 10 to 35 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 4.6A |
| Maximum current draw at 12 Vdc | 5.0A |
| Maximum power usage at 10 Vdc | 60W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Traditional sonar (dual frequency/beam) | yes (with compatible black box sonar) |
| ClearVü | yes (with compatible black box sonar) |
| SideVü | yes (with compatible black box sonar) |
| Panoptix™ sonar | |
| LiveScope | |

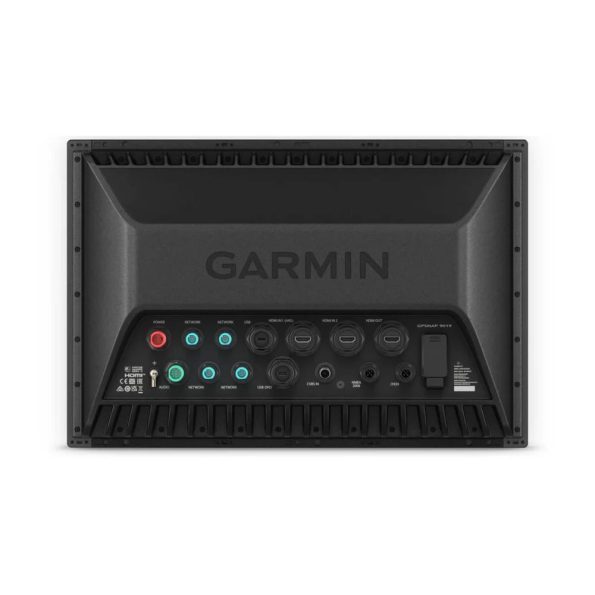

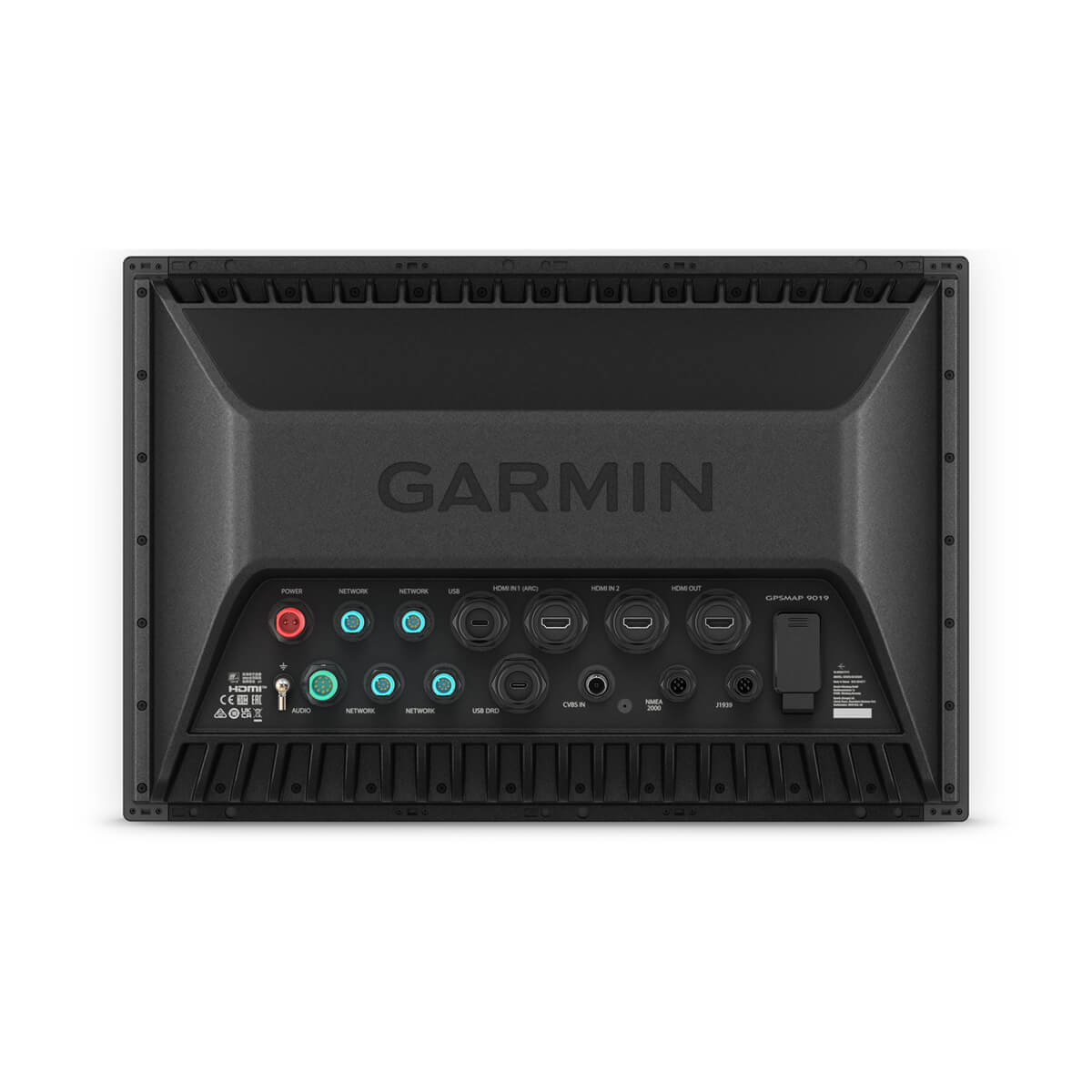

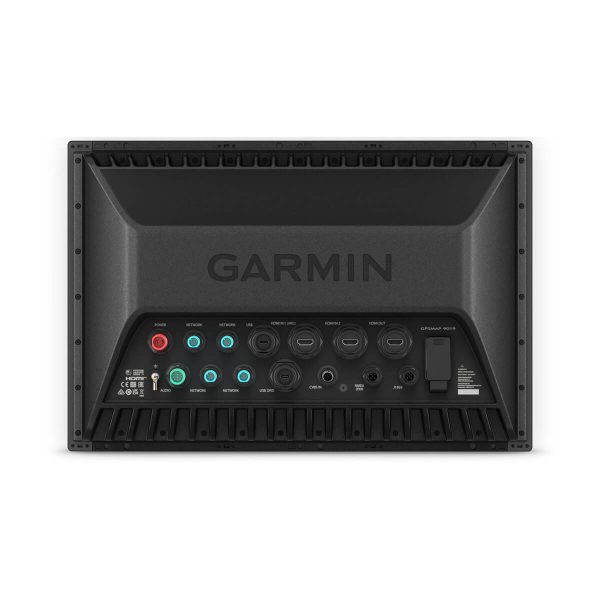

Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports |
1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports |
1 (BNC composite); 2 HDMI (HDCP compliant) |
| Video output ports |
1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 4 |
| USB ports | yes (2x USB-C) |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
| Audio output | |
