-70%
Operational temperature range
-45° C to +70° C
Maximum operating altitude
55,000 ft
Installed height (including rack)
3.11″>” (79.0 mm)
Installed width
3.46″>” (87.9 mm)
Installed depth to connector backshell
13.32″>” (338.8 mm)
Installed depth to straight connector backshell
12.84″>” (326.1 mm)
Weight (unit only)
3.63 lbs (1.65 kg)
Weight (with install rack, connector kit, and configuration module)
4.21 lbs (1.91 kg)
14 V Typical/Tx
0.6 A
14 V Maximum/Tx
0.8 A
28 V Typical/Tx
0.3 A
28 V Maximum/Tx
0.4 A
Minimum sensitivity level
-90 dBm
Maximum range (line of sight)
300 nautical miles
DME channels
5 (with compatible avionics)
Nominal Transmit Power
250 watts
ARINC 429, RS-232, HSDB, King Serial, Audio Out
TSO-C66c DME/N
ETSO-2C66b DME/N Class 1

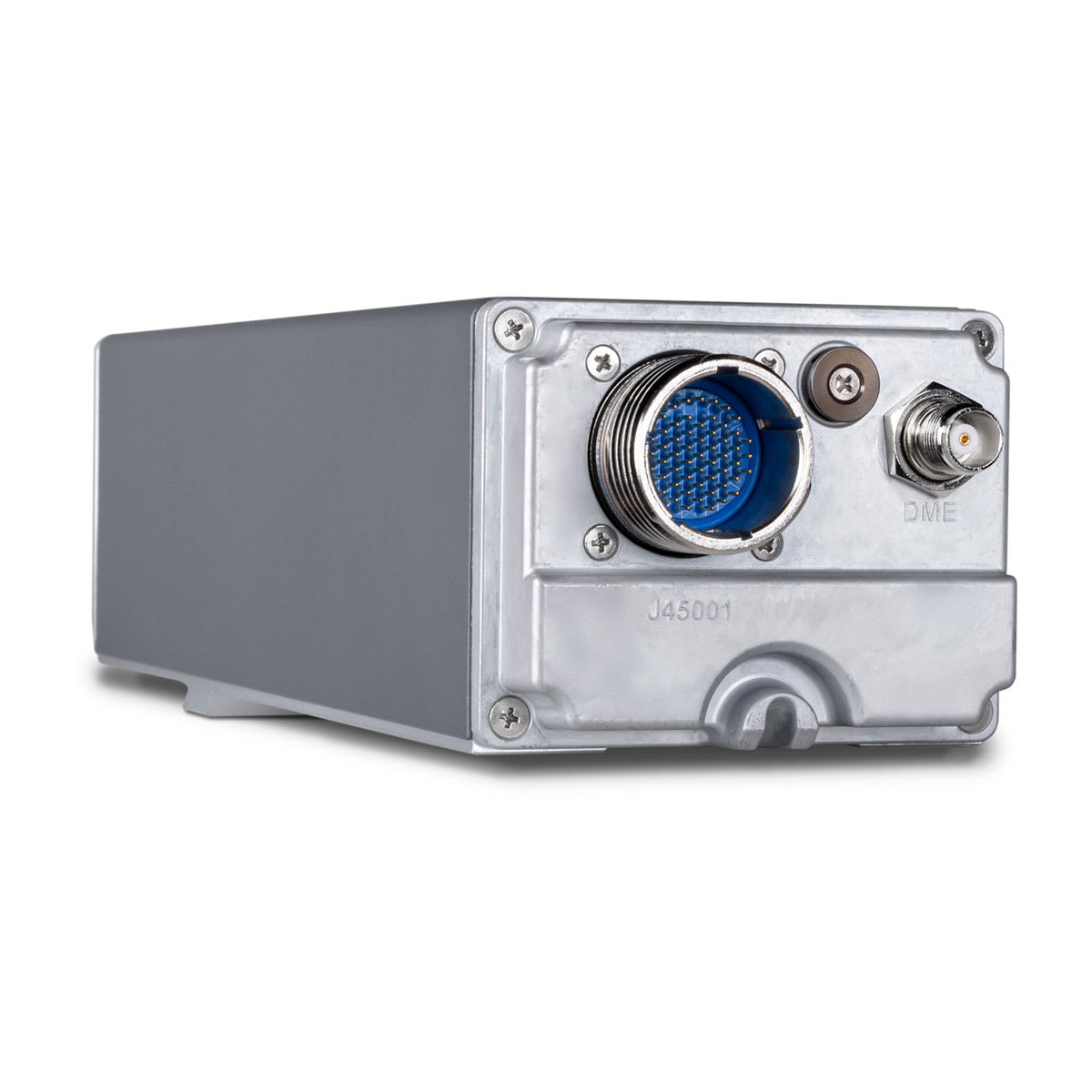

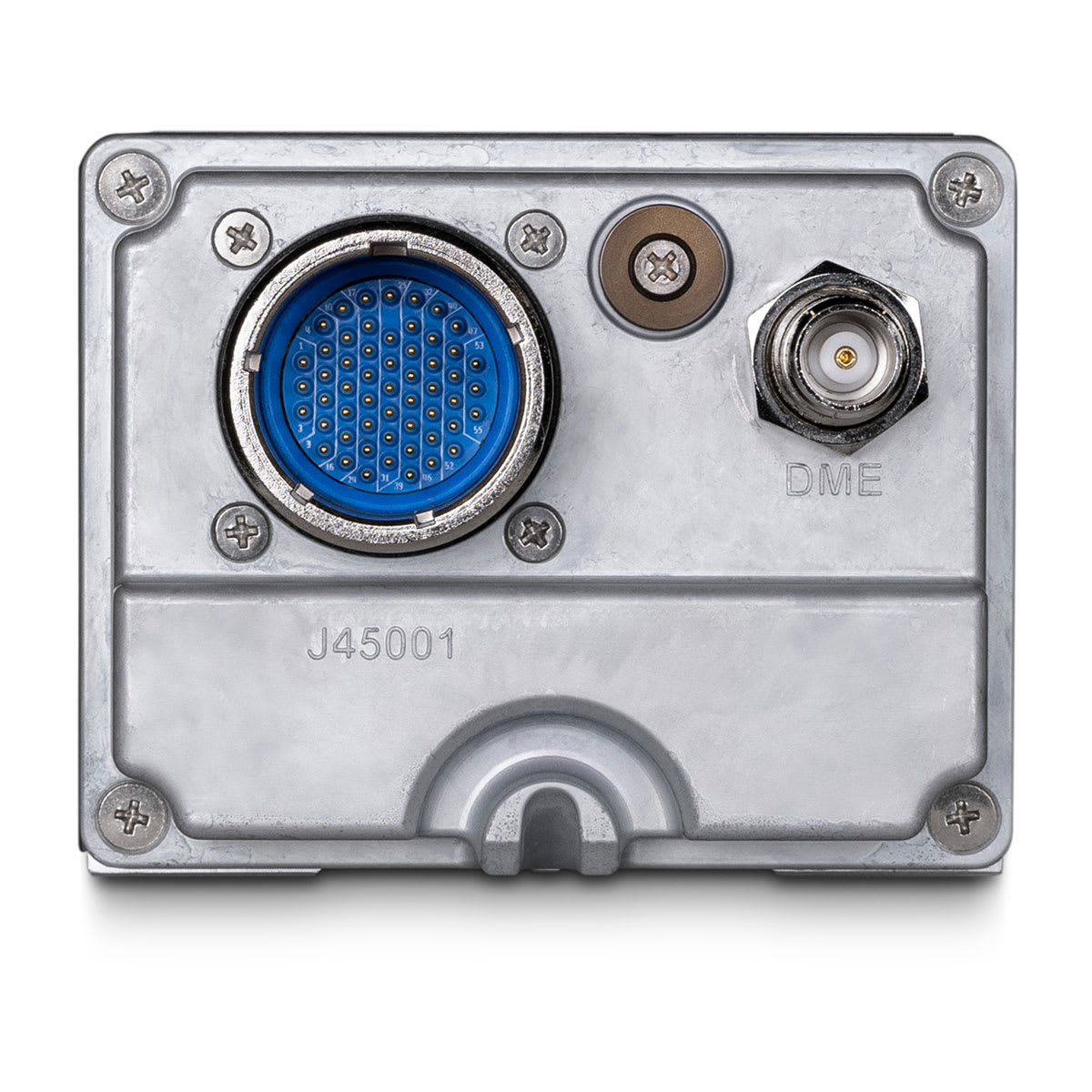

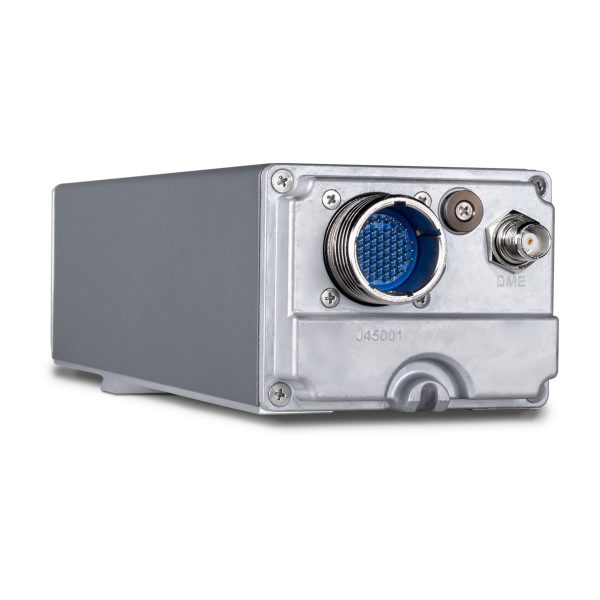

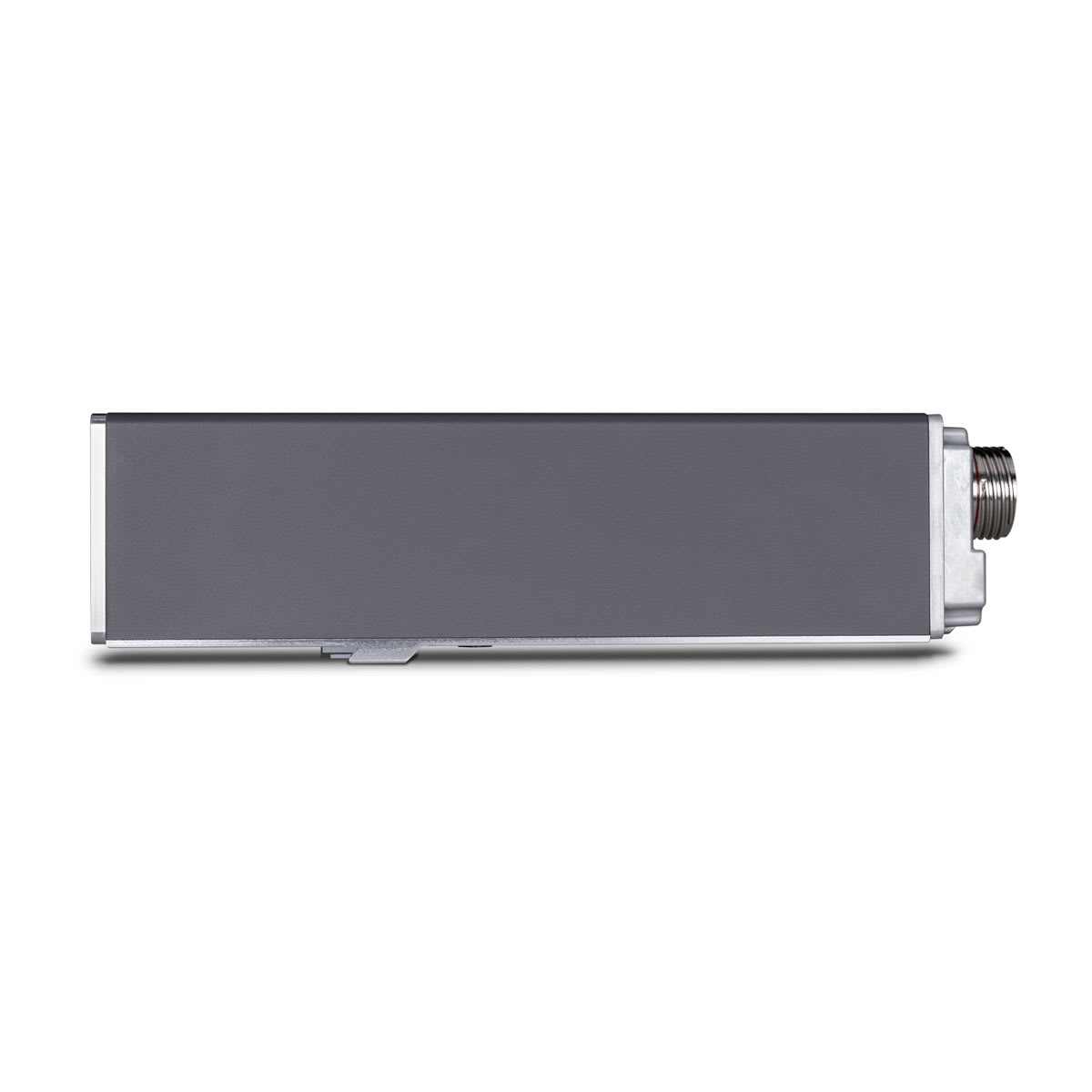

GDM 450R
$8,995.00 Original price was: $8,995.00.$2,698.50Current price is: $2,698.50.
SKU: 010-02621-01
Categories: Aviation, Navigation & Radios
| Environmentally Hardened | yes, No |
|---|
