General |
|
| Dimensions(WxHxD) (unit only) | 9.1″>” x 4.2″>” x 1.5″>” (230 x 106 x 38 mm) |
| Weight (unit only) | 14.1 oz (400 g) |
| Ambient temperature | -20° C to +55° C |
| Enclosure water rating | IP65 |
| Communication | CAN-bus NMEA 2000® network, LEN-0 |
Output |
|
| High side | 13 ch 10A, 7 ch 5A |
Digital Input |
|
| Ground contact switch input | 15 |
| Bilge pump monitor | 2 |
Analog Input |
|
| Volt | 3 @ 0-16 V +/-1% |
| Resistance | 2 @ 0-1500 ohm +/- 5% |
Power Supply |
|
| Maximum current | 50A |
| Power off current consumption | 60mA |
| Supply voltage (12V) | 9-16VDC |
Connector |
|
| NMEA 2000® | Micro 5-pin M12 male |
| Channels | Molex MX150 L 16 circuits |
| Power terminal | M6 bolt |

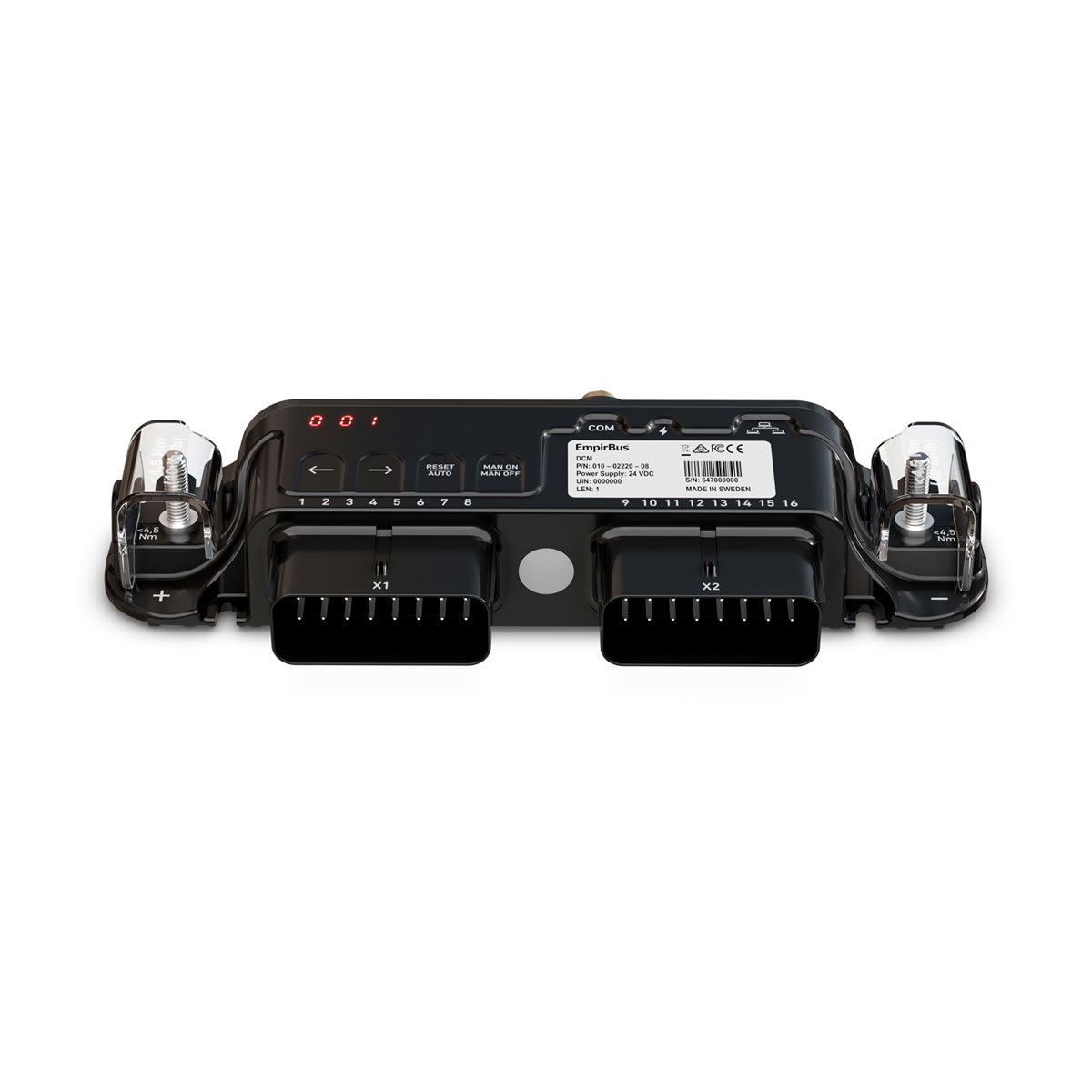

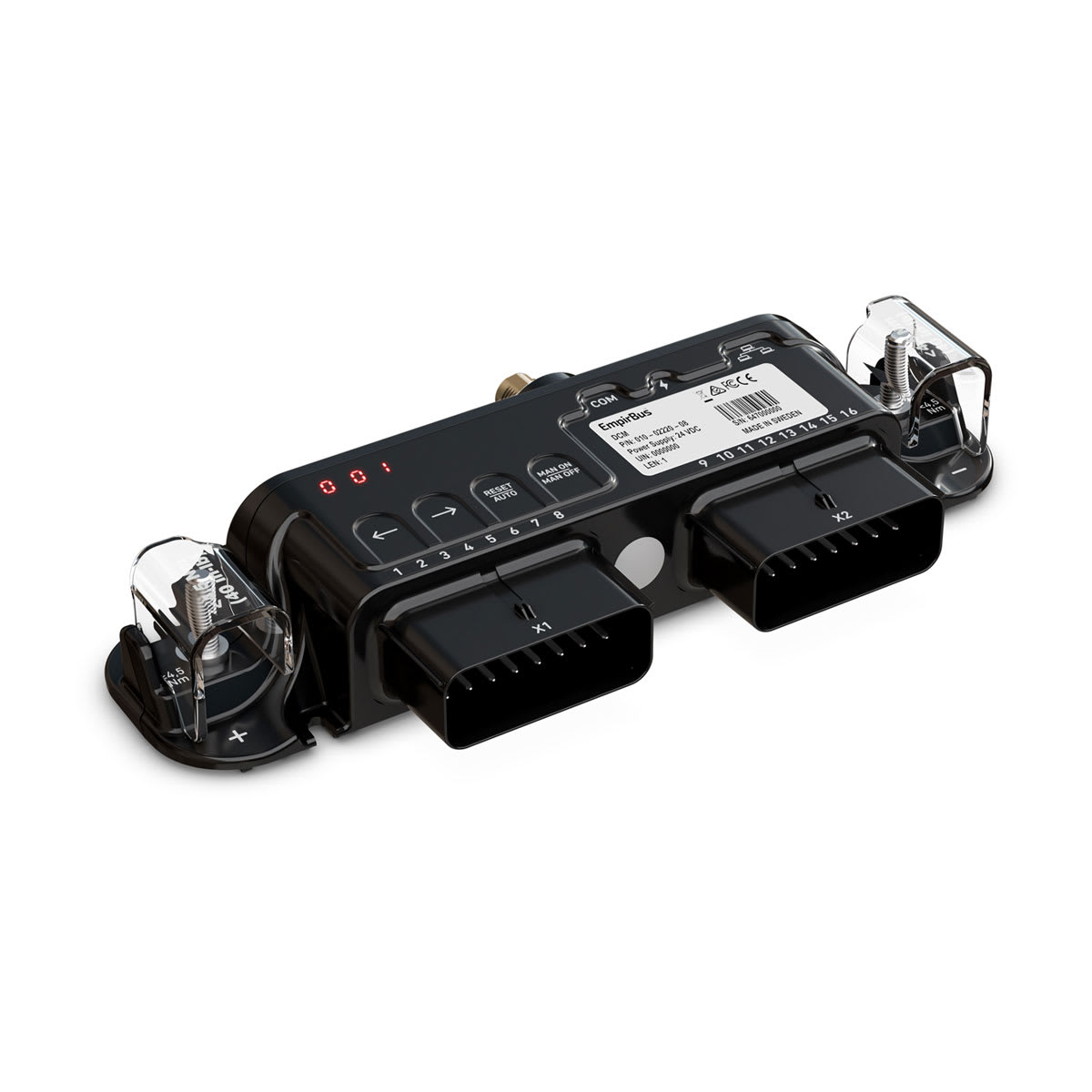

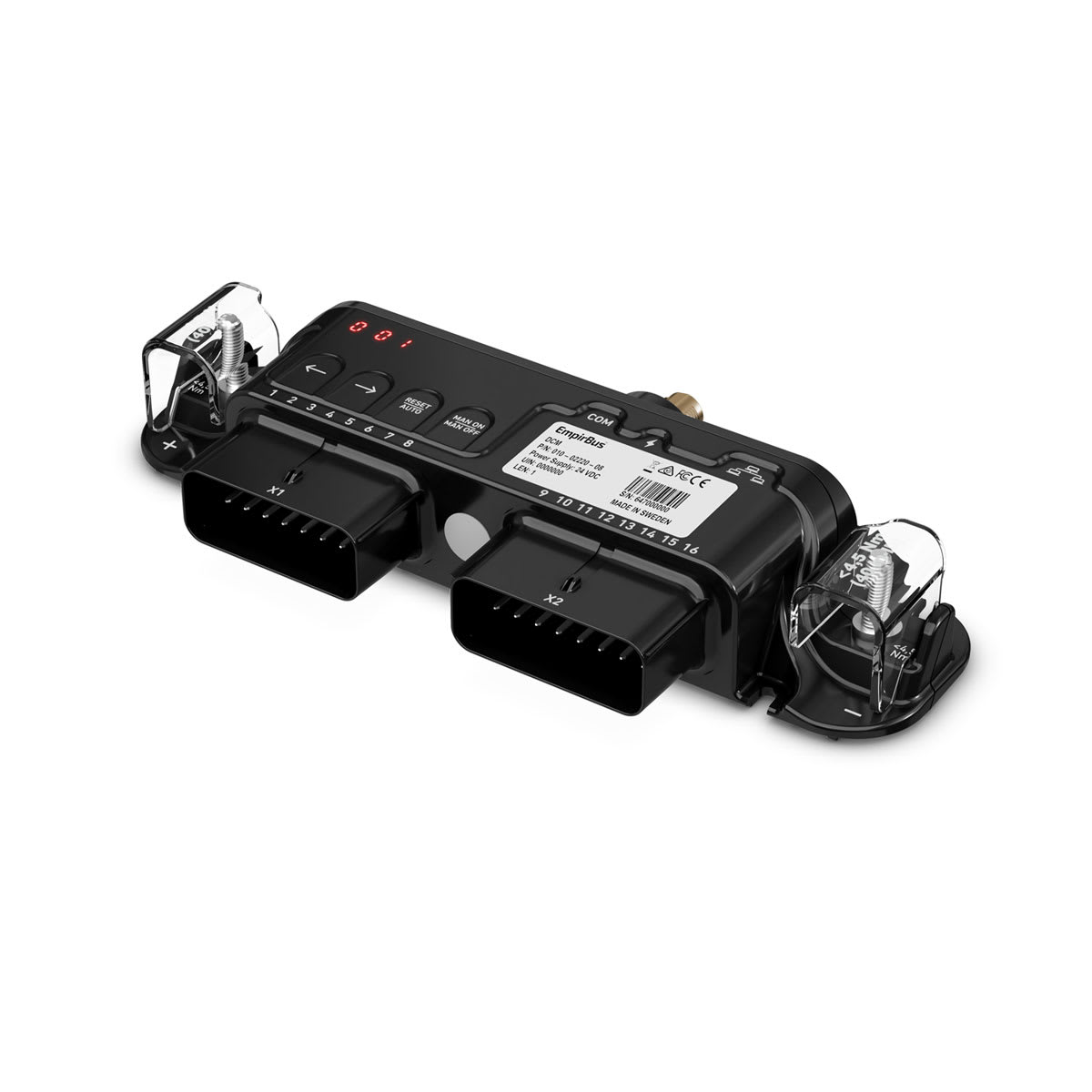

EmpirBus™ NXT DCM
Original price was: $1,599.99.$480.00Current price is: $480.00.
