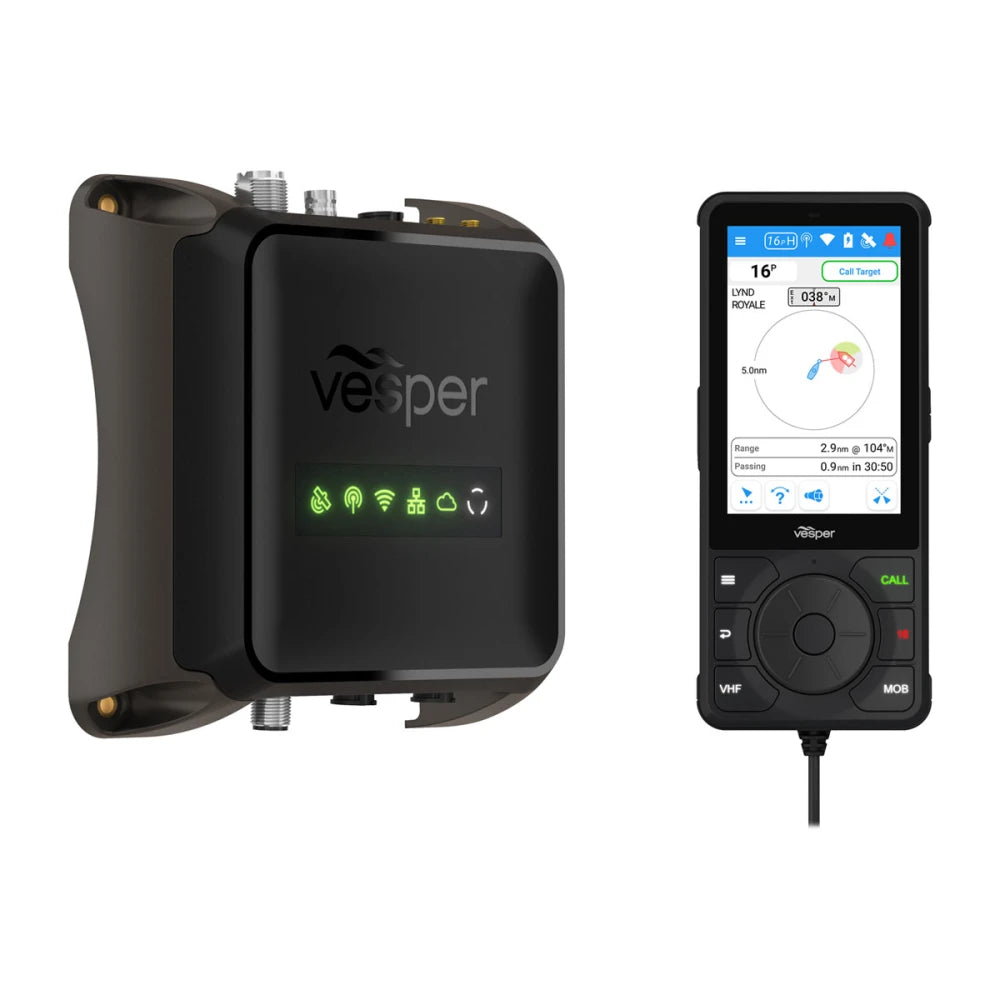

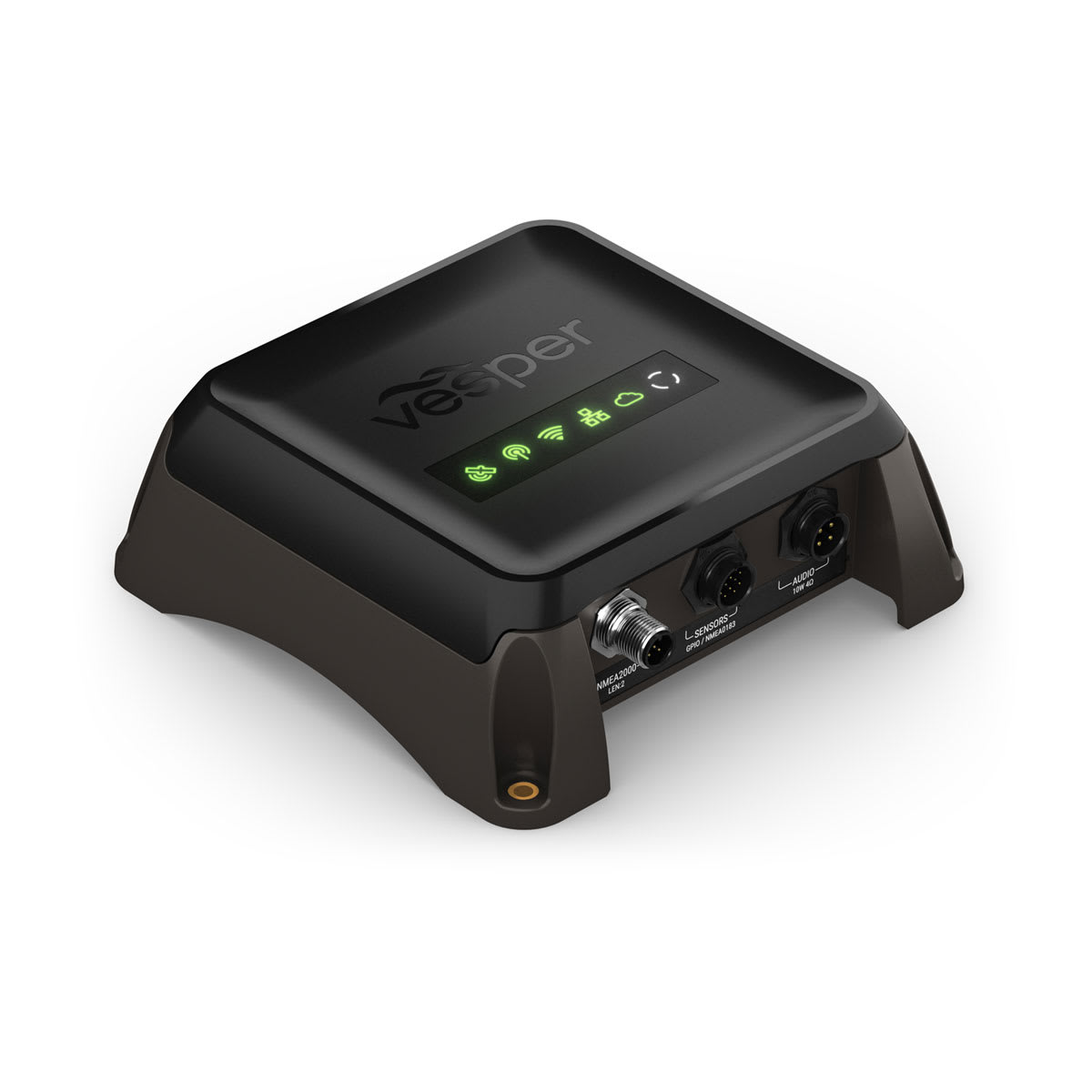

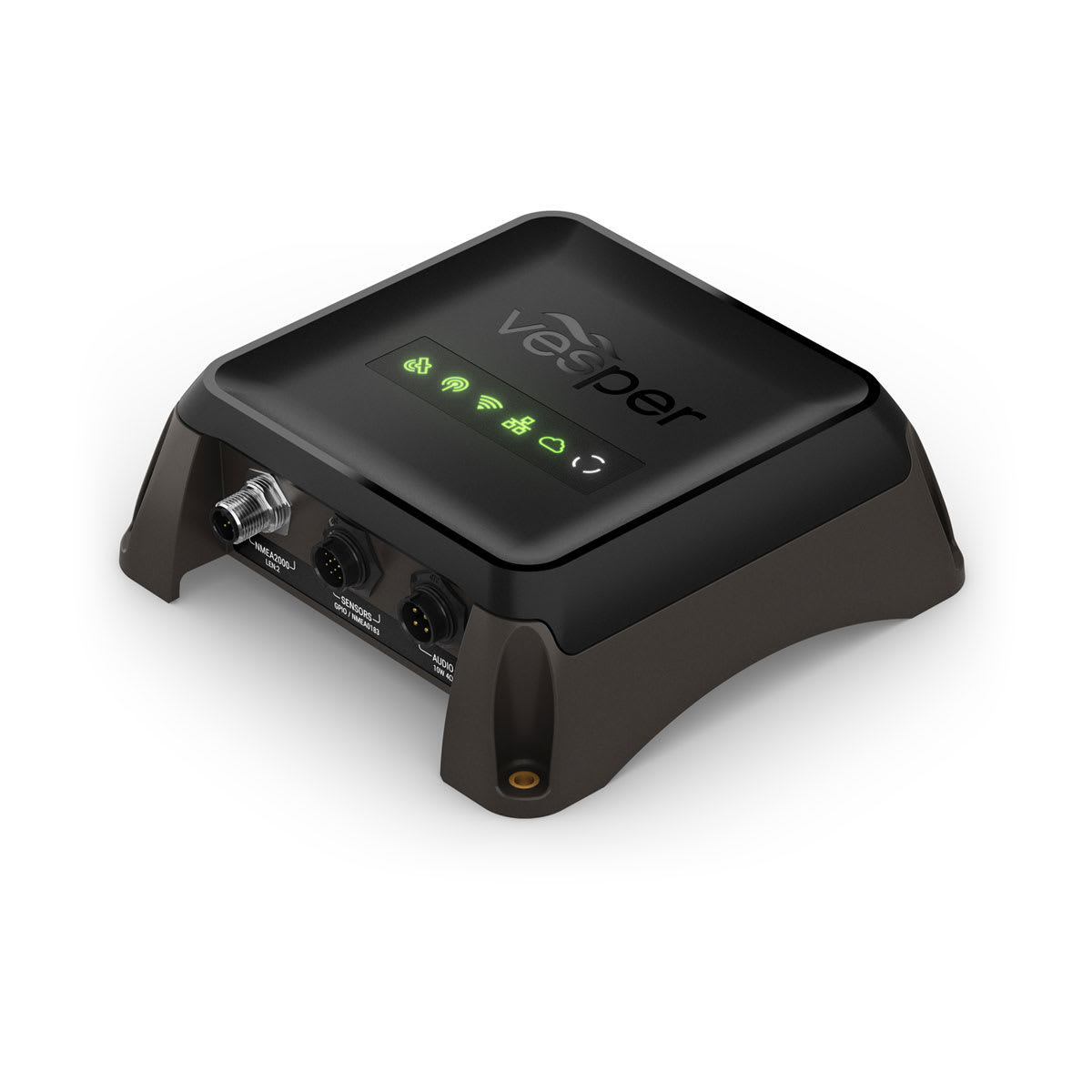

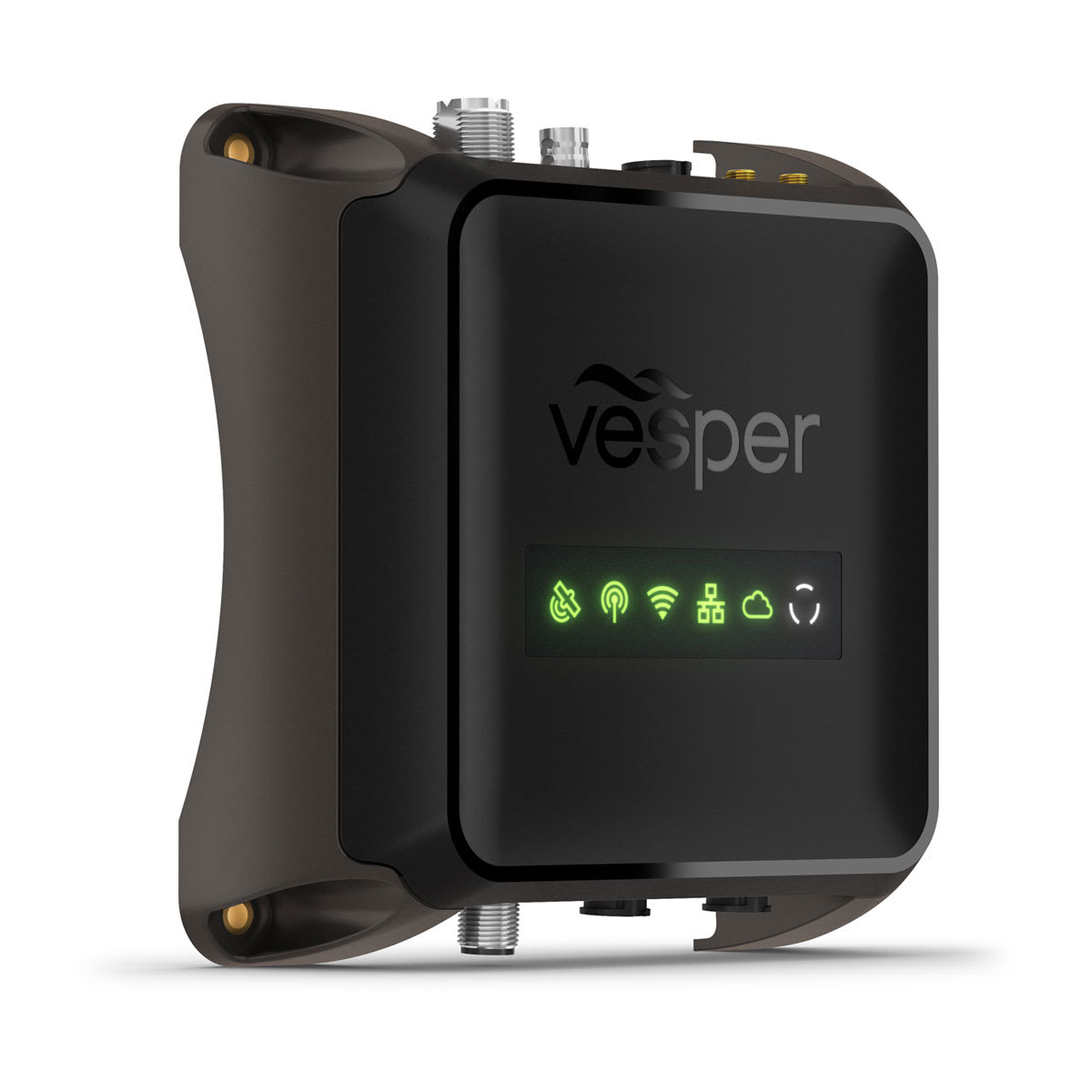

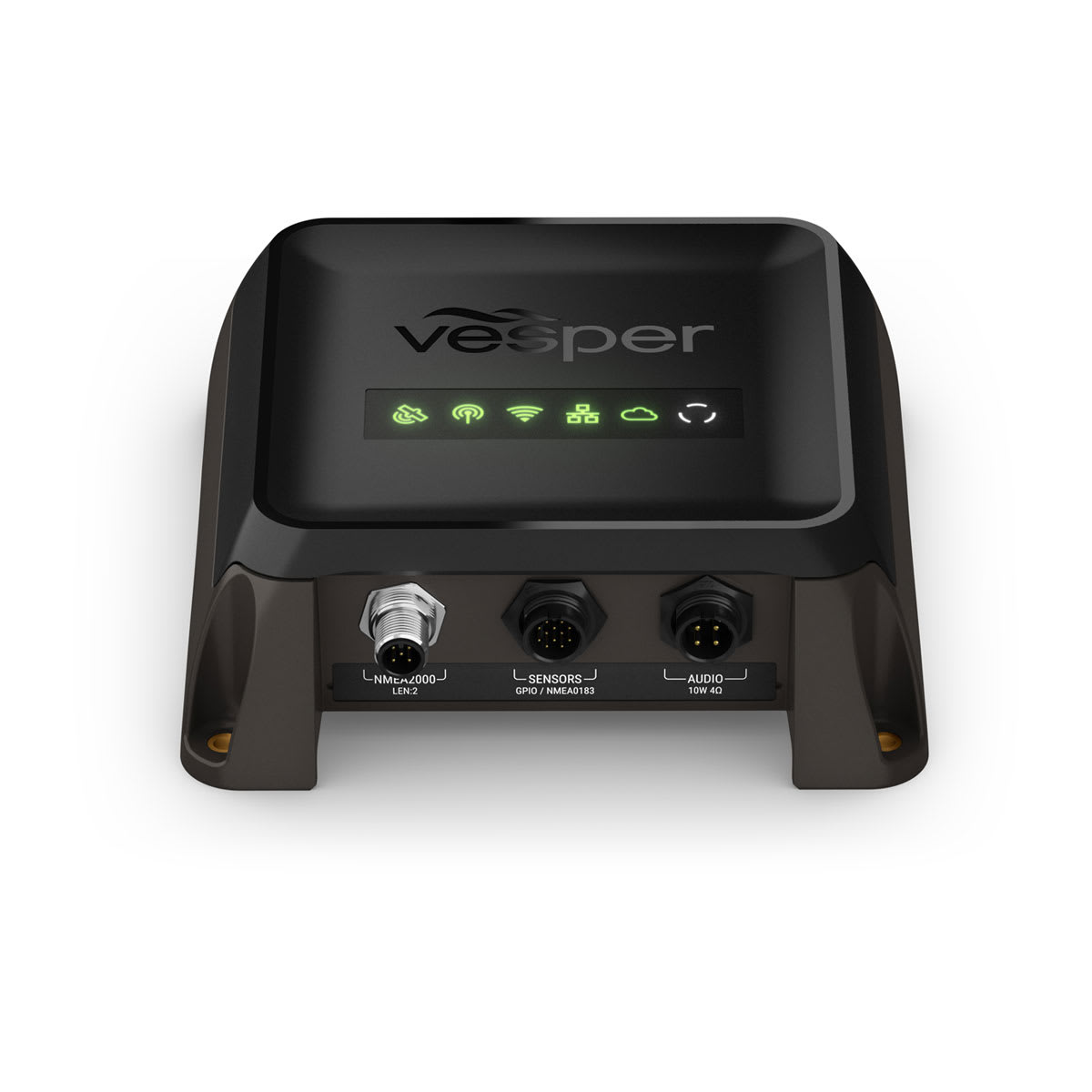

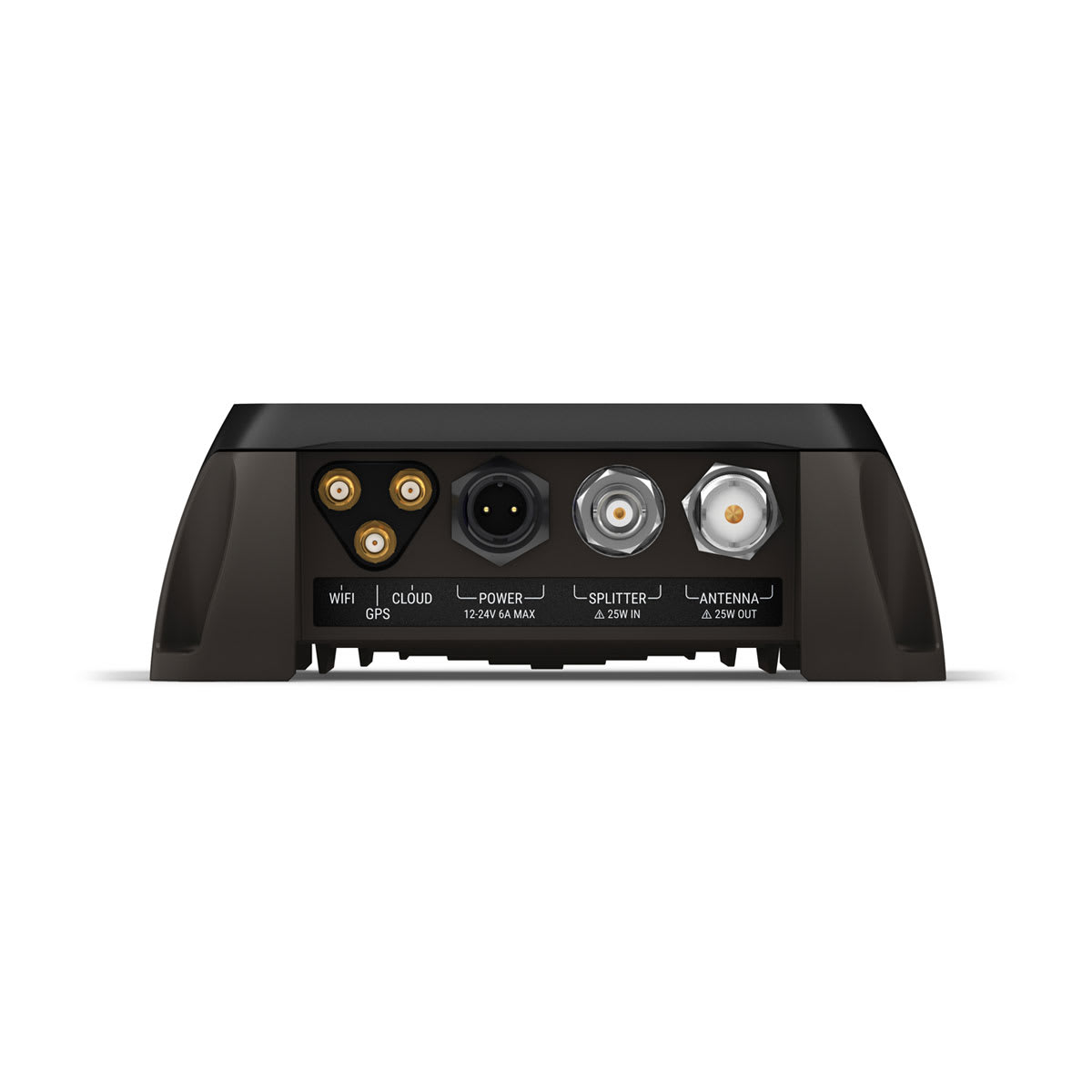

Cortex® V1 Hub $ 603.00– $ 618.00Price range: $603.00 through $618.00
Guaranteed Safe Checkout
General
Transmitter frequency error
Less than 300 Hz
Unit size
168 x 168 x 58.7 mm (6 5/8” x 6 5/8” x 2 5/16” )
Weight
770 g (1.7 lbs)
Water rating
IPX7
Operating voltage
9-33V
Current draw
12V: 6A max, 700mA nom
Operating temperature
-25°C to +55°C (-13°F to 131°F)
ATIS
Ant connector
SO239
Splitter
Max input power 25 W
Splitter connector
BNC
VHF Voice
VHF frequency range Tx
156.025–161.600 MHz
VHF frequency range Rx
156.050–163.275 MHz
Dedicated Rx VHF channels
3
VHF power output
25 W, 1 W (high, low)
Region
U.S., Canada, International
Sensitivity (12 dB SINAD)
80 dBm
Adjacent VHF channel selectivity
80 dB
Spurious response
70 dB
VHF intermodulation
70 dB
Spurious emissions
Less than -80 dBc (at 25 W)
Max audio output power
10 W, < 1% THD
Max antenna gain
6 dBi
Class D DSC
Class
Class D
Dedicated Rx DSC channels
1
Sensitivity (1% BER)
-113 dBm
Adjacent DSC channel selectivity
80 dB
DSC intermodulation
67 dB
AIS
Class
SOTDMA Class B
Dedicated Rx AIS channels
2
Frequency range
156.025 – 162.025 MHz
AIS power output
5W
AIS Sensitivity (20% PER)
-113 dBm
Adjacent AIS channel selectivity
80 dB
AIS intermodulation
67 dB
GNSS
GNSS sensitivity
-167 dBm
Constellations
GPS, GLONASS, BeiDou, Galilleo
Channels
72
Differential support
SBAS, WAAS, EGS
Navigation rate
10 Hz
Connector
SMA
Certifications
IEC 61108
Features
anti-jamming, anti-spoofing
Networking
NMEA 2000® Gateway
1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183
NMEA 2000® LEN
2
NMEA 0183 detail
1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000®, 4800/38400 baud
Wireless security
WPA2 Personal
Cloud connectivity
LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port
Control outputs
2; low side driven (max 150mA)
Sensors
NMEA 2000 Compatible
Heading
9-axial, accuracy: +/- 10 deg, updated rate: 10 Hz (max)
Barometer
update rate 1Hz max (averaged)
Battery voltage
measured at power input
External sensor inputs
5; Digital (0-24V), analog (0-17V)
Audio
Supported functions
VHF RX, Alarms
Amplifier
10 W Class D, THD < 1% 4 ohm
External speaker
10W, 4 ohm
External loudspeaker
30W, 4 ohm
Electrical Features
Compass-safe distance
standard 31.5″ (80 cm), steering 15.7 (40 cm)

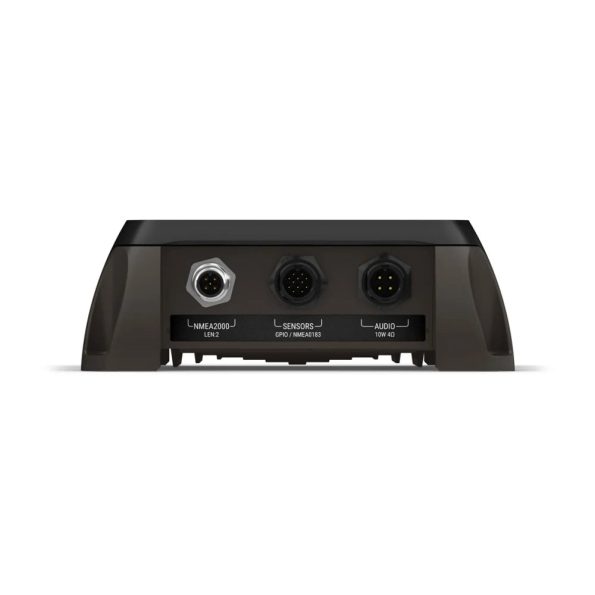

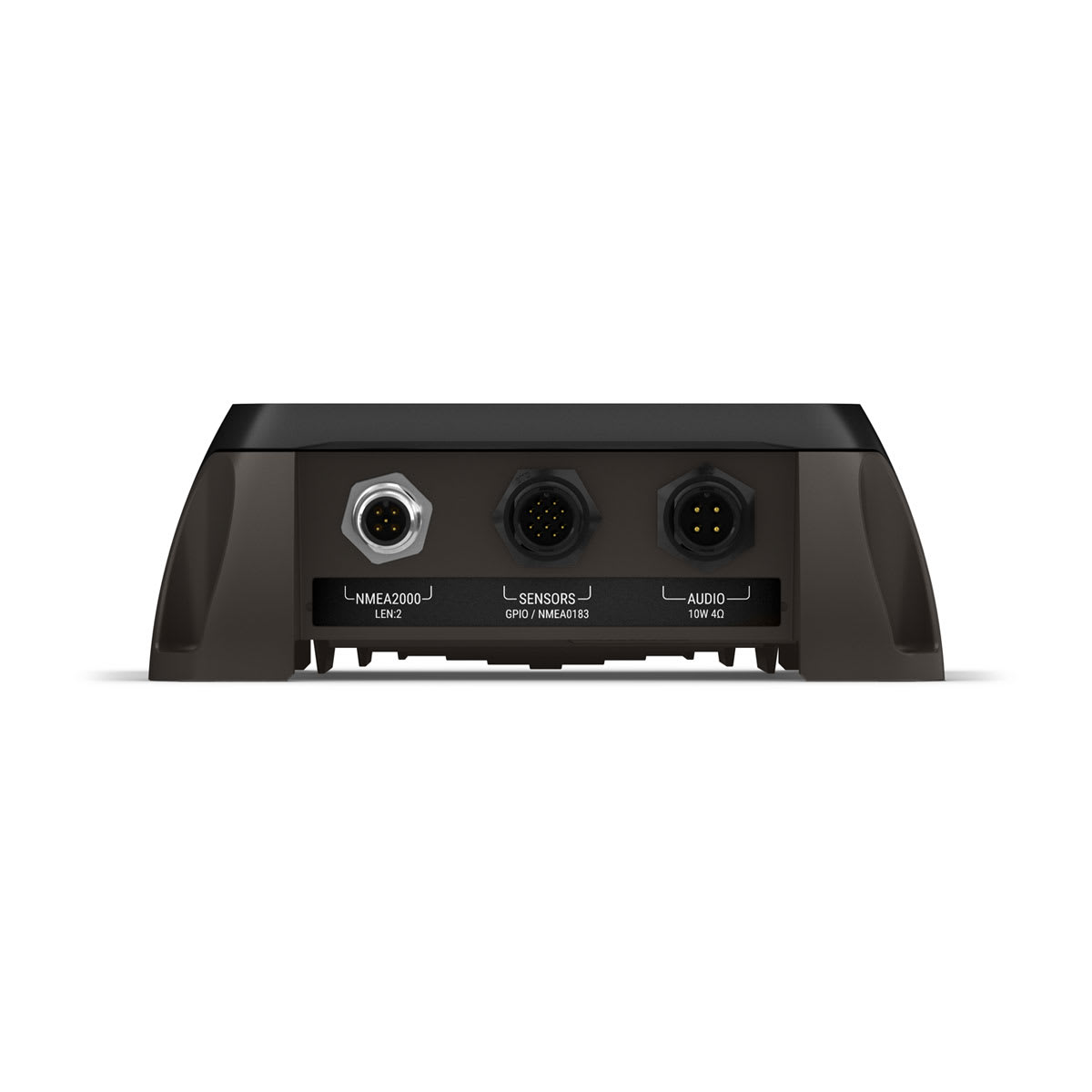

Connections
Connections Wireless Connectivity
access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional)
